WU422L-TKMRBV (2006)
Toyota Dyna
(0610- )WU422..75T..CBU

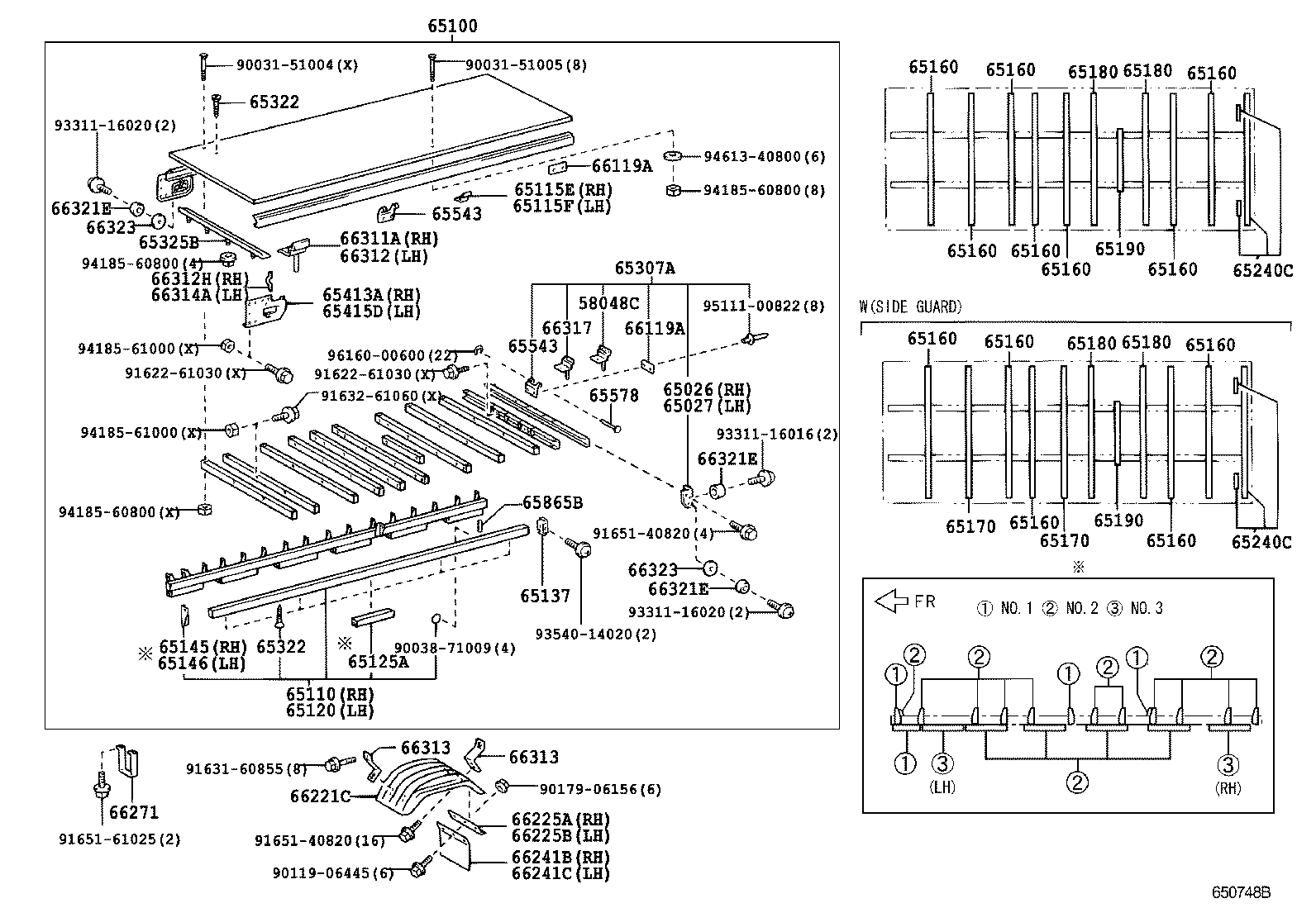

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58048C - HOOK SUB-ASSY, ROPE, NO.1 | ||||
| 58048-37040 |
WU422..75T..CBU |
2 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37040 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37040 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-37Q40 |
WU422..75T..GCC..CBU *** |
1 | ||
| 60560-37090 |
WU422..75T..GCC..CBU ***,W/O(SIDE GUARD) |
1 | ||
| 65100-37R60 |
WU422..75T..GCC..CBU ***,UAE SPEC |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37D50 |
WU422..75T..GCC..CBU UAE SPEC |
1 | ||
| 65110-3V510 |
WU422..75T..GCC..CBU W/O(SIDE GUARD) |
1 | ||
| 65115E - SUPPORT, CROSS SILL | ||||
| 65115-37010 |
WU422..75T..CBU |
2 | ||
| 65115F - SUPPORT, CROSS SILL | ||||
| 65115-37010 |
WU422..75T..CBU |
2 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37D30 |
WU422..75T..GCC..CBU |
1 | ||
| 65120-3V580 |
WU422..75T..GCC..CBU W/O(SIDE GUARD) |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37600 |
WU422..CBU;WU412..85T..CBU RH,NO.3 |
1 | ||
| 65126-37080 |
WU422..CBU;WU412..85T..CBU NO.1 |
2 | ||
| 65125-37550 |
WU422..GCC..CBU RH, CENTER |
4 | ||
| 65125-37600 |
WU422..GCC..CBU RH, REAR |
1 | ||
| 65125-37550 |
WU422..CBU RH,NO.2 |
4 | ||
| 65126-37080 |
WU422..GCC..CBU FRONT |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37070 |
WU422..CBU;WU412..85T..CBU |
2 | ||
| 65145 - GUSSET, CROSS SILL | ||||
| 65145-37220 |
WU412..85T..CBU;WU422..75T..CBU NO.2 |
11 | ||
| 65146-37020 |
WU422..CBU;WU412..85T..CBU NO.1 |
3 | ||
| 65146 - GUSSET, CROSS SILL | ||||
| 65146-37020 |
WU412..85T..CBU;WU422..75T..CBU NO.2 |
11 | ||
| 65145-37220 |
WU422..CBU;WU412..85T..CBU NO.1 |
3 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65161-37150 |
WU422..75T..GCC..CBU |
5 | ||
| 65161-37150 |
WU422..75T..GCC..CBU UAE SPEC |
6 | ||
| 65161-37150 |
WU412..85T..CBU;WU422..75T..GCC..CBU W/O(SIDE GUARD) |
7 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37040 |
WU422..GCC..CBU |
2 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65171-37040 |
WU422..GCC..CBU |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37240 |
WU422..CBU;WU412..85T..CBU |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37240 |
WU422..CBU;WU412..85T..CBU |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37240 |
WU422..CBU;WU412..85T..CBU |
2 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65181-37240 |
WU422..CBU;WU412..85T..CBU |
2 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37050 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37291 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37291 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37280 |
WU422..75T..CBU |
1 | ||
| 65322 - NAIL | ||||
| 90032-82002 |
WU422..CBU;WU412..85T..CBU FOR MAIN SILL |
24 | ||
| 90032-82001 |
WU422..GCC..CBU FOR MAIN SILL |
24 | ||
| 90290-03001 |
WU422..75T..CBU FOR FLOOR BOARD |
84 | ||
| 90032-82002 |
WU422..CBU;WU412..85T..CBU FOR MAIN SILL |
26 | ||
| 65322 - NAIL | ||||
| 90032-82002 |
WU422..CBU;WU412..85T..CBU FOR MAIN SILL |
24 | ||
| 90032-82001 |
WU422..GCC..CBU FOR MAIN SILL |
24 | ||
| 90290-03001 |
WU422..75T..CBU FOR FLOOR BOARD |
84 | ||
| 90032-82002 |
WU422..CBU;WU412..85T..CBU FOR MAIN SILL |
26 | ||
| 65325B - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-37070 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37080 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37060 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37031 |
WU422..CBU |
22 | ||
| 65543-37030 |
WU422..CBU |
22 | ||
| 65543 - HINGE, SIDE GATE FEMALE | ||||
| 65543-37031 |
WU422..CBU |
22 | ||
| 65543-37030 |
WU422..CBU |
22 | ||
| 65578 - PIN, SIDE GATE HINGE | ||||
| 65578-37030 |
WU422..CBU |
22 | ||
| 65578-37031 |
WU422..CBU |
22 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37010 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66119A - PATCH, HINGE GATE MALE | ||||
| 66119-37010 |
WU422..75T..CBU |
6 | ||
| 66119A - PATCH, HINGE GATE MALE | ||||
| 66119-37010 |
WU422..75T..CBU |
6 | ||
| 66221C - PLATE, REAR FENDER, REAR | ||||
| 66221-37230 |
WU422..CBU;WU412..85T..CBU |
2 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37190 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37190 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B11 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66241-37B10 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B10 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66241-37B11 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37020 |
WU422..CBU;WU412..85T..CBU |
1 | ||
| 66311A - HOOK, ROPE, NO.1 | ||||
| 66301-37010 |
WU422..75T..CBU |
7 | ||
| 66312 - HOOK, ROPE, NO.2 | ||||
| 66301-37010 |
WU422..75T..CBU |
7 | ||
| 66312H - HOOK, ROPE | ||||
| 66313-37010 |
WU422..75T..CBU |
3 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37150 |
WU422..CBU;WU412..85T..CBU |
8 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37150 |
WU422..CBU;WU412..85T..CBU |
8 | ||
| 66314A - HOOK, ROPE, NO.4 | ||||
| 66313-37010 |
WU422..75T..CBU |
3 | ||
| 66317 - HOOK, ROPE, NO.7 | ||||
| 66301-37010 |
WU422..75T..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
WU422..CBU;WU412..85T..CBU |
6 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
WU422..CBU;WU412..85T..CBU |
6 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66303-87403 |
WU422..CBU;WU412..85T..CBU |
6 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
WU422..CBU;WU412..85T..CBU |
4 | ||
| 66323 - SPACER, GAGE RUBBER BUMPER | ||||
| 66323-37020 |
WU422..CBU;WU412..85T..CBU |
4 | ||
| Common parts | ||||
| 90031-51004 | ||||
| 90031-51005 | ||||
| 90038-71009 | ||||
| 90119-06445 | ||||
| 90179-06156 | ||||
| 91622-61030 | ||||
| 91631-60855 | ||||
| 91632-61060 | ||||
| 91651-40820 | ||||
| 91651-61025 | ||||
| 93311-16016 | ||||
| 93311-16020 | ||||
| 93540-14020 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 94613-40800 | ||||
| 95111-00822 | ||||
| 96160-00600 | ||||
