Toyota Dyna WU412 BATTERY & BATTERY CABLE

Manufacturers Home
Toyota
GR
DYNA
WU412L-TKMRB (2006)
8201 - BATTERY & BATTERY CABLE

WU412L-TKMRB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0010- )

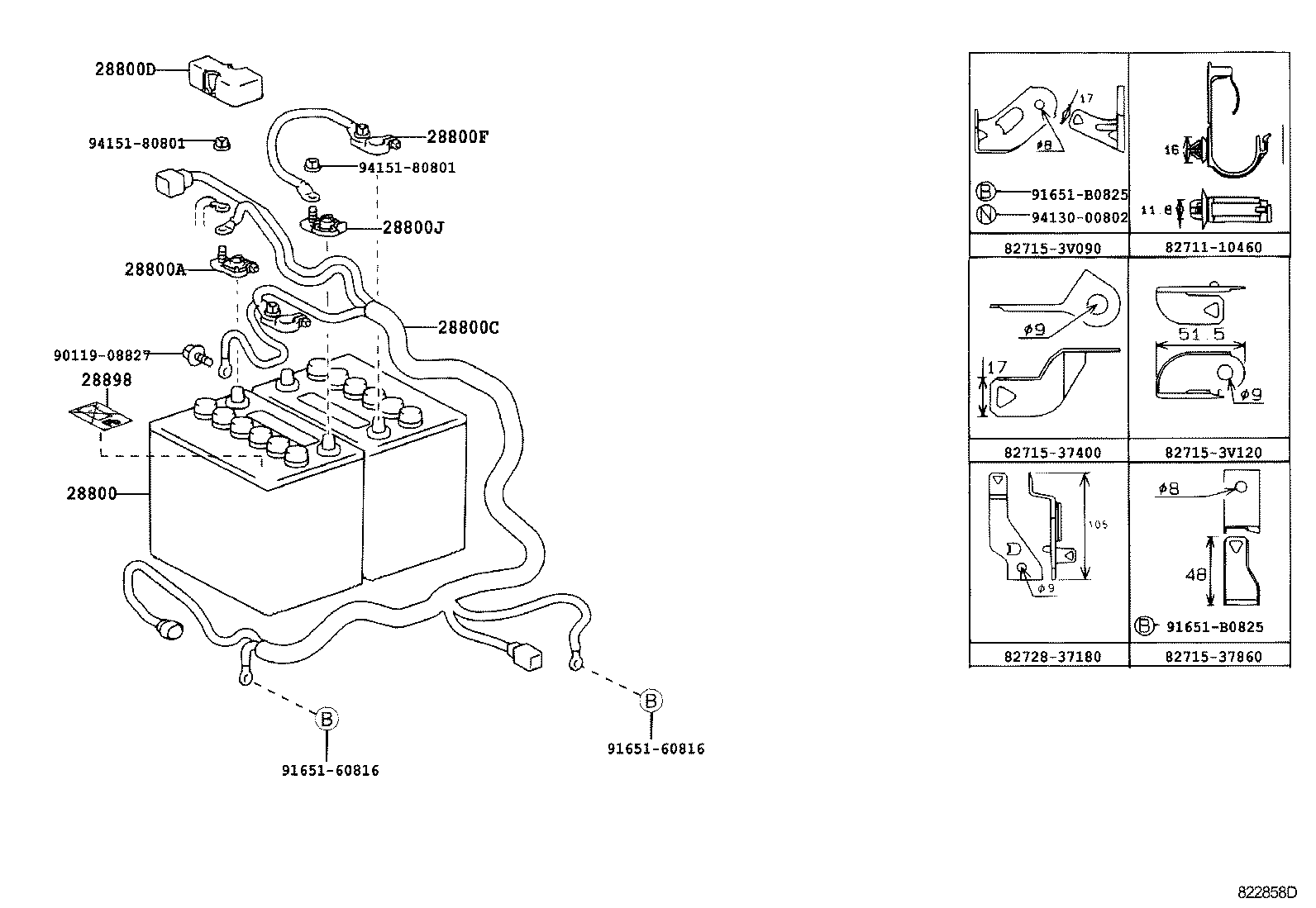

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-10460
82715-37400
82715-37860
82715-3V090
82715-3V120
90119-08827
90179-08227
91651-60816
91651-B0825
94130-00802

(0110-0802)XZU404,412,414,420,422,424,430,434 ;(0212-0610)WU410..GCC,GEN ; (0304-0

Click highlighted areas on diagram

Part #	Description	Period	Qty
28800 - BATTERY
28800-42041	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 55D23L	10/2001 - 10/2006	2
28800-64181	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 95D31L	10/2001 - 10/2006	2
28800-42042	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 55D23L	10/2001 - 10/2006	2
28800-42042	N04C,W04D..WU41#,422,XZU413,423..GCC,GEN 55D23L	10/2006 - 06/2007	2
28800A - TERMINAL, BATTERY POSITIVE
90982-05042	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37D40	W04D..WU412,422	10/2006 - 06/2011	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28800F - CABLE, BATTERY TO BATTERY
82123-37040	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06028	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
82711-10460
82715-37400
82715-37860
82715-3V090
82715-3V120
82728-37180
90119-08827
91651-60816
91651-B0825
94130-00802
94151-80801

(0610- )EUR,GCC,GEN,TAIW..DCRTJ,DCRTK,DSL ; (0802-0812)SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
28800 - BATTERY
28800-42041	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 55D23L	10/2001 - 10/2006	2
28800-64181	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 95D31L	10/2001 - 10/2006	2
28800-42042	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 55D23L	10/2001 - 10/2006	2
28800-42042	N04C,W04D..WU41#,422,XZU413,423..GCC,GEN 55D23L	10/2006 - 06/2007	2
28800 - BATTERY
28800-42041	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 55D23L	10/2001 - 10/2006	2
28800-64181	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 95D31L	10/2001 - 10/2006	2
28800-42042	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 55D23L	10/2001 - 10/2006	2
28800-42042	N04C,W04D..WU41#,422,XZU413,423..GCC,GEN 55D23L	10/2006 - 06/2007	2
28800A - TERMINAL, BATTERY POSITIVE
90982-05042	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37D40	W04D..WU412,422	10/2006 - 06/2011	1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28800F - CABLE, BATTERY TO BATTERY
82123-37040	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06028	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
82711-10460
82715-3V090
90119-08827
91651-60816
91651-B0825
94130-00802
94151-80801
Linked diagrams
8202

WU412L-TKMRB (2006)

(0010- )

(0110-0802)XZU404,412,414,420,422,424,430,434 ;(0212-0610)WU410..GCC,GEN ; (0304-0

(0610- )EUR,GCC,GEN,TAIW..DCRTJ,DCRTK,DSL ; (0802-0812)SA
