WU412L-TKMRB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

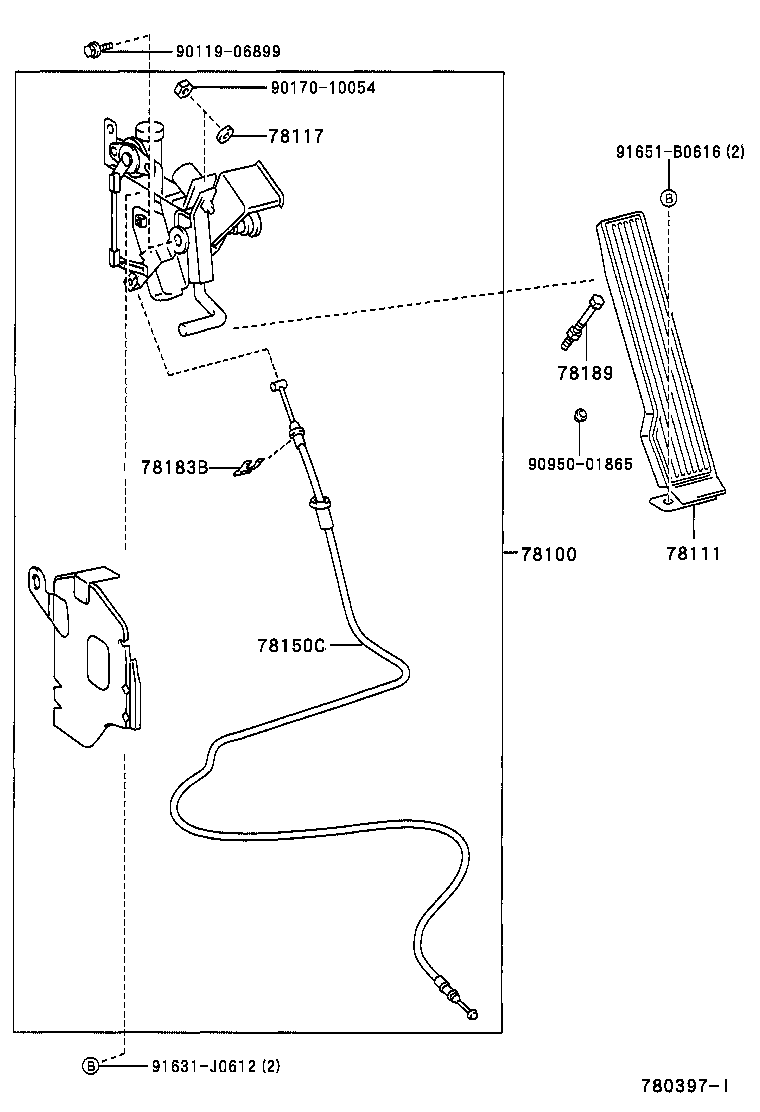

ILLUST NO. 1 OF 2(0010- )XZU402,411,412

Click highlighted areas on diagram

diagram 78100 78111 78117 78150C 78183B 78189 9011906899 9017010054 9095001865 91631J0612 91651B0616
Part # Description Qty Price
Common parts
90119-06899
90170-10054
90950-01865
91631-J0612
91651-B0616

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

diagram 2202 2202 78130 78130 78180P 78183D 78184E 9017906204 91511B0816 9645101000 9645601000
Part # Description Qty Price
Common parts
90179-06204
91511-B0816
96451-01000
96456-01000
Linked diagrams
2202

(0610- )WU41#,422..LHD

Click highlighted areas on diagram

diagram 78010A 78010A 78100 78111 78117 78119 78150C 78183B 78183E 78184B 78184F 78184H 78184J 78184K 78184L 78189 78190 78410D 78411A 78481 9011906899 9017908057 9017908057 9017908184 9024006012 9046400731 9046806063 9046814017 9155180814 9155180814 9155180814 91611B0816 91611B0816 91621J0614 9164180818 9165160616 9165160816 91651B0616 91651B0814 91651B0825 9412041000
Part # Description Qty Price
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065

WU41#,422..LHD

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065

WU41#,422..LHD

 2
78100 - LINK ASSY, ACCELERATOR
78100-37721

WU41#,422..LHD

 1
78111 - PEDAL, ACCELERATOR
78110-95410

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038

WU41#,422..LHD

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00

WU41#,422..LHD

 1
78119-37010

WU41#,422..LHD

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37750

WU412,422

 1
78150-37751

WU412,422

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37260

WU41#,422..LHD

 1
78184-37440

WU41#,422..LHD

 1
78183E - CLAMP, ACCELERATOR CONTROL CABLE
78183-37330

WU412,42#;WU410..65T;WU410..75T..GEN

 1
78184F - BRACKET, ACCELERATOR CONTROL CABLE
78184-37270

WU412,422

 1
78184H - BRACKET, ACCELERATOR CONTROL CABLE
78184-37140

WU41#,422..LHD

 1
78184K - BRACKET, ACCELERATOR CONTROL CABLE
78184-37290

WU41#,422..LHD

 1
78184L - BRACKET, ACCELERATOR CONTROL CABLE
78184-37390

WU412,422

 1
78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE
78190-37020

WU41#,422..LHD

 1
78410D - NUT, THROTTLE
78314-95010

WU412,42#;WU410..65T;WU410..75T..GEN

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01

WU412,42#;WU410..65T;WU410..75T..GEN

 1
78481 - CLAMP, THROTTLE WIRE
78481-37010

WU412,42#;WU410..65T;WU410..75T..GEN

 1
Common parts
90119-06899
90179-08057
90179-08184
90240-06012
90464-00731
90468-06063
90468-14017
91551-80814
91611-B0816
91621-J0614
91641-80818
91651-60616
91651-60816
91651-B0616
91651-B0814
91651-B0825
94120-41000
