WU412L-TKMRB (2006)
Toyota Dyna

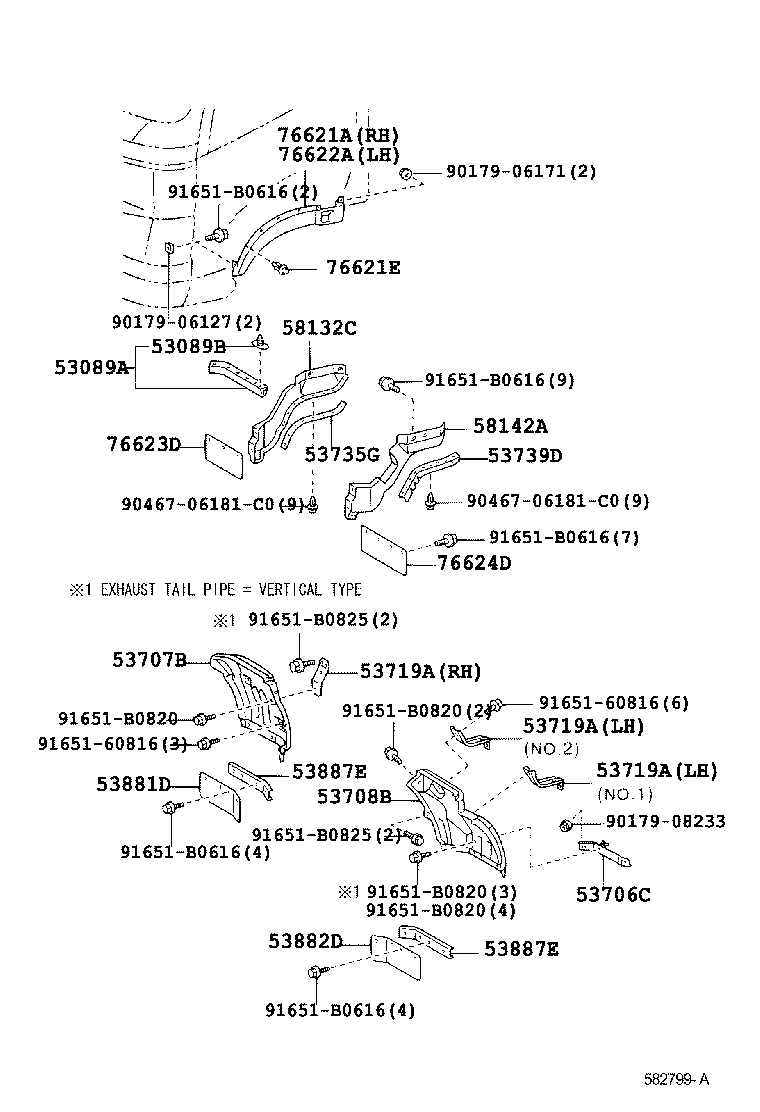

ILLUST NO. 2 OF 2(0110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53736-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
12 | ||
| 53706C - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37150 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 53715-37260 |
WU41#,422,XZU413,423..GCC,GEN |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37170 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 53716-37260 |
WU41#,422,XZU413,423..GCC,GEN |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37170 |
WU410,420,XZU404,41#,42#,43# LH,NO.1 |
1 | ||
| 53719-37190 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) LH,NO.2 |
1 | ||
| 53719-37200 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) RH |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37170 |
WU410,420,XZU404,41#,42#,43# LH,NO.1 |
1 | ||
| 53719-37190 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) LH,NO.2 |
1 | ||
| 53719-37200 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) RH |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37170 |
WU410,420,XZU404,41#,42#,43# LH,NO.1 |
1 | ||
| 53719-37190 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) LH,NO.2 |
1 | ||
| 53719-37200 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) RH |
1 | ||
| 53735G - SEAL, FRONT FENDER APRON, UPPER | ||||
| 53735-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 53739D - SEAL, FRONT FENDER APRON TO FRAME, REAR | ||||
| 53739-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37090 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37090 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 58132C - APRON, FRONT FLOOR SIDE, NO.1 RH | ||||
| 58132-37010 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-37020 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 58142-37080 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL |
1 | ||
| 76621A - MUDGUARD, FRONT BODY, FRONT RH | ||||
| 76621-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 76621E - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-05031C0 |
WU41#,422,XZU413,423..GCC,GEN BLACK,058 ,199 ,766 ,8P0 |
10 | ||
| 76622A - MUDGUARD, FRONT BODY, FRONT LH | ||||
| 76622-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 76624D - MUDGUARD, FRONT FENDER, FRONT LH | ||||
| 76624-37030 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| Common parts | ||||
| 90179-06127 | ||||
| 90179-06171 | ||||
| 90179-08233 | ||||
| 90467-06181C0 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||

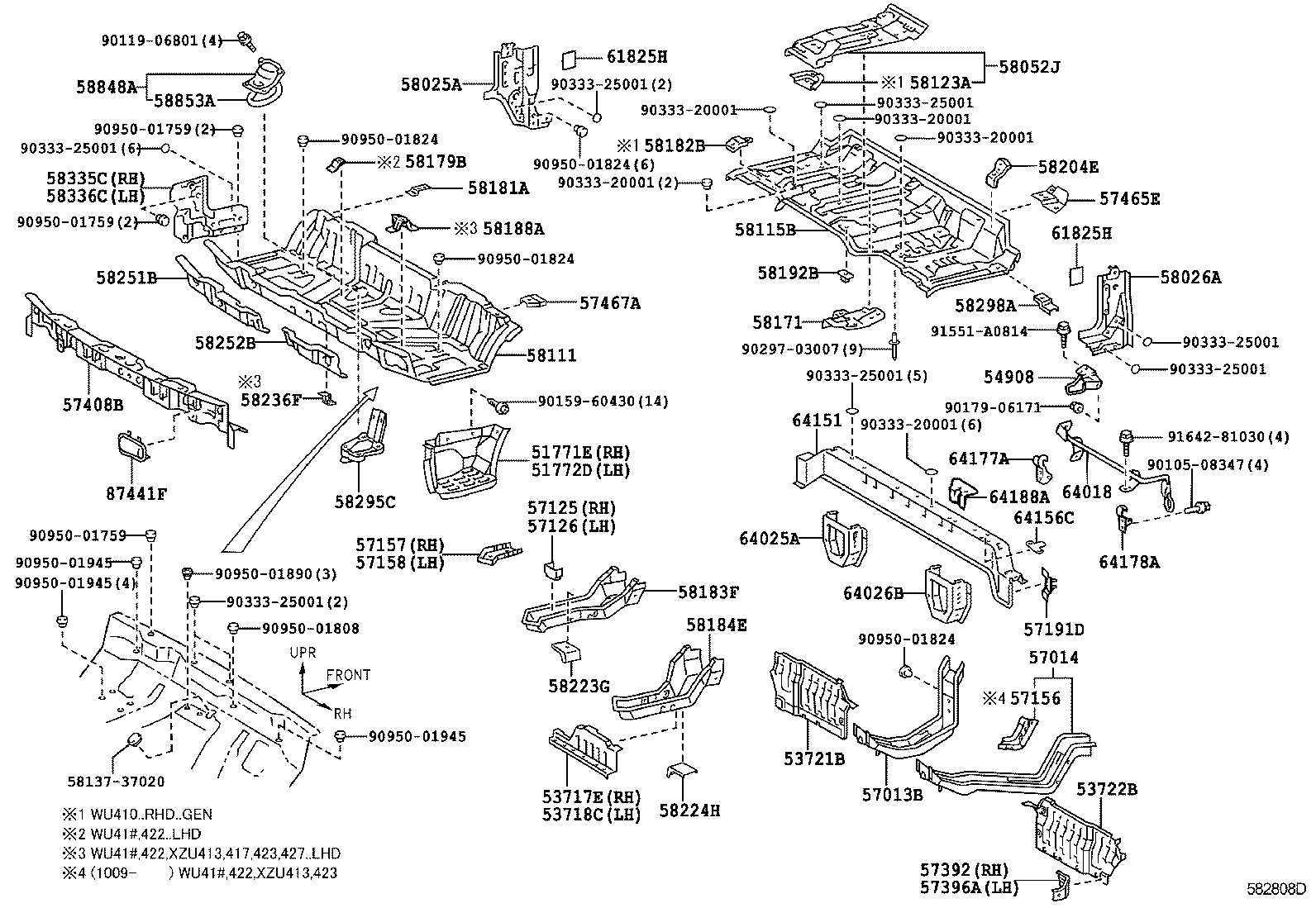

ILLUST NO. 1 OF 2(0610- )WU41#,42#,XZU413,417,420,423,427,430,433
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37110 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37090 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37180 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37140 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 54908 - BRACKET SUB-ASSY, TILT CAB GRIP | ||||
| 54908-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-37150 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57125 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57125-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 57126 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57126-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57158-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 57191D - BRACKET, FLOOR NO.1 CROSSMEMBER | ||||
| 57191-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37302 |
WU41#,422,XZU413,417,423,427..LHD |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-37010 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37080 |
WU41#,422..LHD;XZU413,423..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37441 |
WU41#,422,XZU413,417,423,427..LHD |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58115-37150 |
WU41#,422,XZU41#,42#,435..LHD |
1 | ||
| 58115-37081 |
WU41#,422,XZU413,415,417,423,425,427,435..LHD..(DCRTJ,DCRTK,DSL) |
1 | ||
| 58179B - BRACKET, ACCELERATOR CABLE CLAMP | ||||
| 58179-37010 |
WU41#,422..LHD |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 64151 - FRAME, BACK | ||||
| 64151-37470 |
WU41#,422,XZU413,423..LHD |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-37030 |
BU410,420,WU410,420,XZU404,41#,42#,43# |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-37030 |
BU410,420,WU410,420,XZU404,41#,42#,43# |
1 | ||
| 64188A - BRACKET, SEAT SET FRAME | ||||
| 64188-37050 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| Common parts | ||||
| 58137-37020 | ||||
| 90105-08347 | ||||
| 90119-06801 | ||||
| 90159-60430 | ||||
| 90179-06171 | ||||
| 90297-03007 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01890 | ||||
| 90950-01945 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
