WU412L-TKMRB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU402,412

Click highlighted areas on diagram

diagram 04431 43111 43112 43132A 43211 43211D 43211D 43212 43231A 43231A 43231B 43231C 43231D 9017910121 9413061200 9645100600 9645601000
Part # Description Qty Price
Common parts
90179-10121
94130-61200
96451-00600
96456-01000

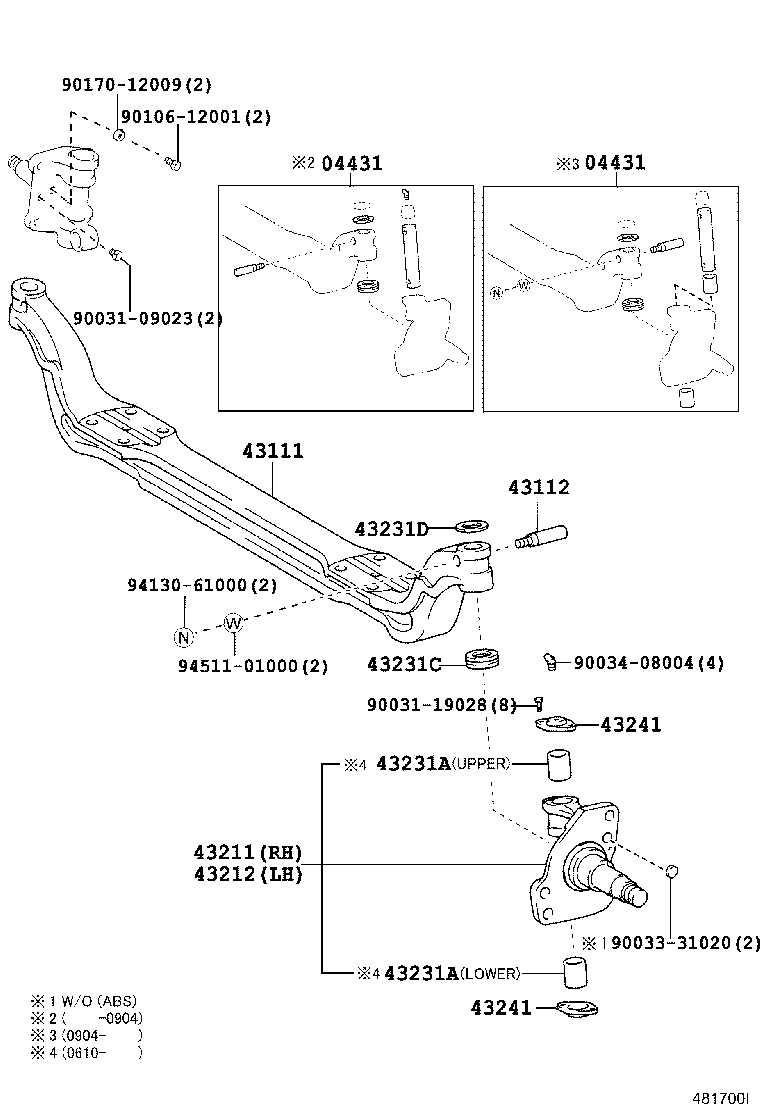

(0610- )WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..65T,75T,85T..D

Click highlighted areas on diagram

diagram 04431 04431 43111 43112 43211 43212 43231A 43231A 43231C 43231D 43241 43241 9003109023 9003119028 9003331020 9003408004 9010612001 9017012009 9413061000 9451101000
Part # Description Qty Price
04431 - PIN KIT, STEERING KNUCKLE KING
04431-37400

WU410..65T..SA;WU410..LHD..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)

 2
04431-37400

WU410..65T..SA;WU410..LHD..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)

 2
04431 - PIN KIT, STEERING KNUCKLE KING
04431-37400

WU410..65T..SA;WU410..LHD..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)

 2
04431-37400

WU410..65T..SA;WU410..LHD..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)

 2
43211 - KNUCKLE, STEERING, RH
43201-37061

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
43201-37061

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
43212 - KNUCKLE, STEERING, LH
43202-37061

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
43202-37061

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
Common parts
90031-09023
90031-19028
90033-31020
90034-08004
90106-12001
90170-12009
94130-61000
94511-01000
