WU412L-TKMRB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

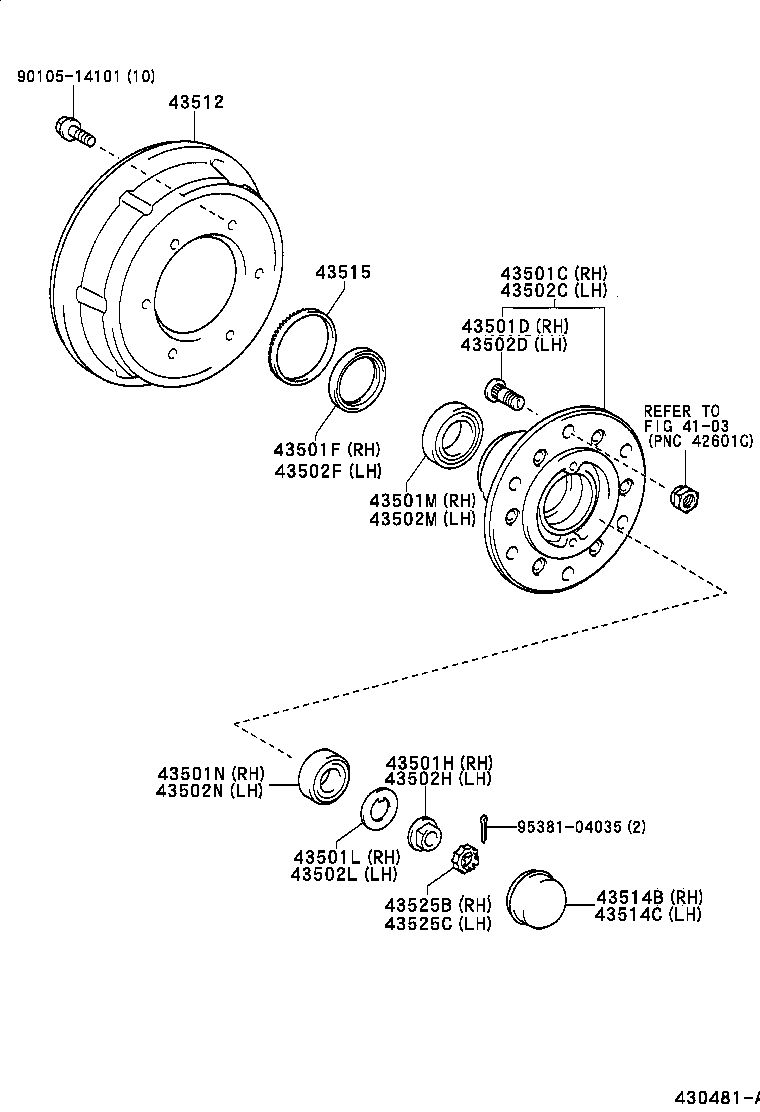

(0010- )XZU402,412

Click highlighted areas on diagram

diagram 4103 43501C 43501D 43501F 43501H 43501L 43501M 43501N 43502C 43502D 43502F 43502H 43502L 43502M 43502N 43512 43514B 43514C 43515 43525B 43525C 9010514101 9538104035
Part # Description Qty Price
Common parts
90105-14101
95381-04035
Linked diagrams
4103

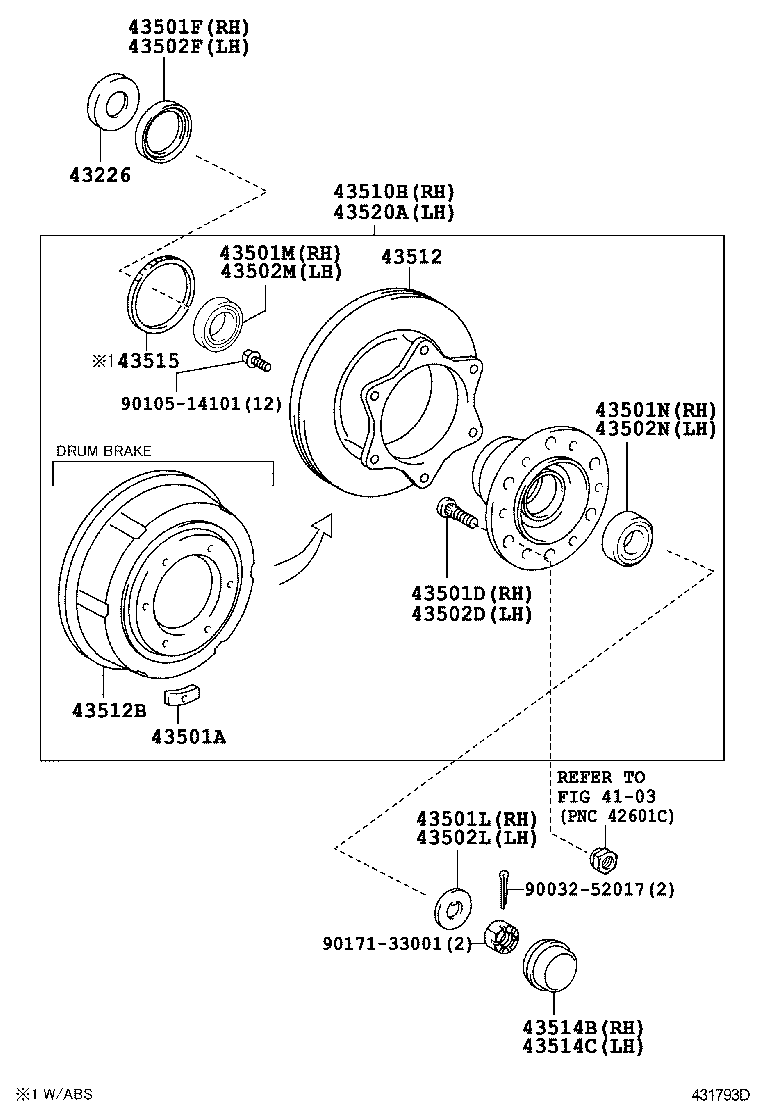

(0610- )WU412,422,XZU423,433 ; (0610- )WU410,XZU413,415,417,419,425,427,429,4

Click highlighted areas on diagram

diagram 4103 43226 43501A 43501D 43501F 43501L 43501M 43501N 43502D 43502F 43502L 43502M 43502N 43510H 43512 43512B 43514B 43514C 43515 43520A 9003252017 9010514101 9017133001
Part # Description Qty Price
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02071

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90942-02071

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02072

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
90942-02072

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH
43510-39295

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
43510-39295

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
43512B - DRUM, BRAKE
43512-37130

WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T

 2
43512-37130

WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T

 2
43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH
43520-39275

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
43520-39275

WU412,422;WU410,XZU413,423..(65T,75T)..GEN

 1
Common parts
90032-52017
90105-14101
90171-33001
Linked diagrams
4103
