WU412L-TKMRB (2006)
Toyota Dyna
Production
Oct 2006
-
Jun 2011
Engine
W04D
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )

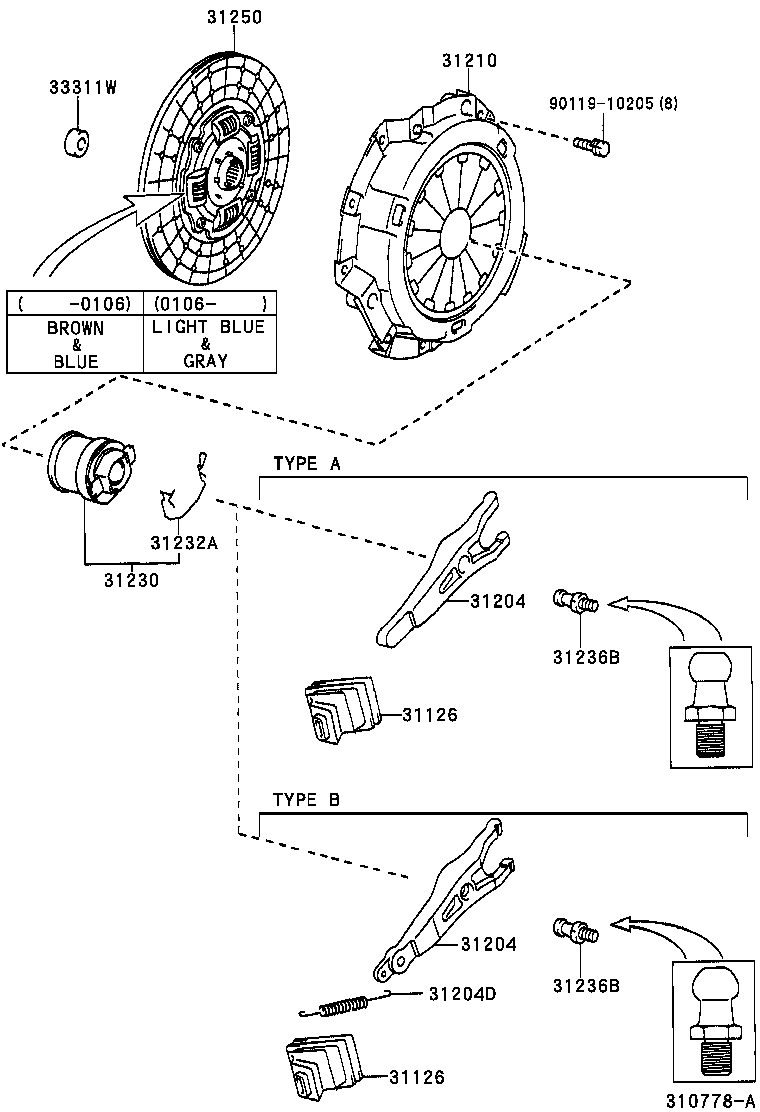

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10205 | ||||
(0110- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-36070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31126-36070 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-37010 |
WU412,422,XZU413,423..5F |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-36320 |
WU412,422 |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-36200 |
WU412,422..5F |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-36030 |
WU412,422,XZU413,423..5F |
1 | ||
| 31232-36030 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-36060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-37170 |
WU412,422 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-17037 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| Common parts | ||||
| 90119-10205 | ||||
