WU412L-TKMRB (2006)

Toyota Dyna

Production Oct 2006 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

Click highlighted areas on diagram

diagram 11176 11176A 11176C 23600 23600 23610 23616 23618 23618A 23619 23620 23624 23626 23627A 23628 23629 23631A 23631B 23659 23659 23695 9003119096 9003209019 9003209030
Part # Description Qty Price
Common parts
90031-19096
90032-09019
90032-09030

(0610- )W04D..WU412,422

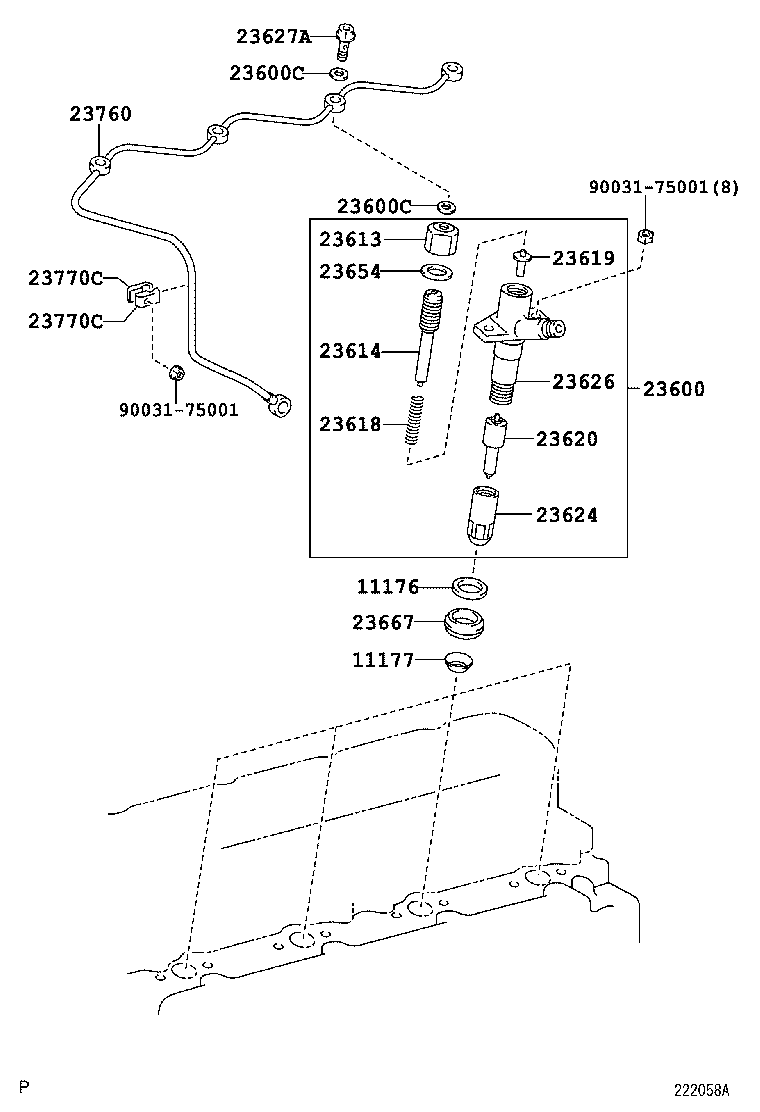

Click highlighted areas on diagram

diagram 11176 11177 23600 23600C 23600C 23613 23614 23618 23619 23620 23624 23626 23627A 23654 23667 23760 23770C 23770C 9003175001 9003175001
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
90564-21001

W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN

 4
11177 - GASKET, INJECTION NOZZLE SEAT
11177-78010

W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN

 4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-78080

W04D..WU412,422

 4
23600C - GASKET(FOR HOLDER & NOZZLE SET)
23682-78010

W04D..WU412,422

 8
23600C - GASKET(FOR HOLDER & NOZZLE SET)
23682-78010

W04D..WU412,422

 8
23613 - NUT, NOZZLE HOLDER CAP
23613-78080

W04D..WU412,422

 4
23614 - SCREW, NOZZLE HOLDER ADJUSTING
23614-78080

W04D..WU412,422

 4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-78080

W04D..WU412,422

 4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-78080

W04D..WU412,422

 4
23620 - NOZZLE ASSY
23620-78080

W04D..WU412,422

 4
23624 - NUT, NOZZLE RETAINING
23624-78080

W04D..WU412,422

 4
23626 - BODY SUB-ASSY, NOZZLE
23626-78080

W04D..WU412,422

 4
23627A - SCREW, FOLLOW(FOR NOZZLE)
23656-89101

W04D..WU412,422

 8
90034-01017

W04D..WU412,422

 4
23654 - WASHER(FOR RING PACKING)
23654-67010

W04D..WU412,422

 4
23667 - RING, PACKING, NO.2(FOR NOZZLE)
90033-01071

W04D..WU412,422

 4
17214-78010

W04D..WU412,422

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23761-78070

W04D..WU412,422

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90034-68024

W04D..WU412,422

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90034-68024

W04D..WU412,422

 2
Common parts
90031-75001
