WU412L-TKMRB (2006)
Toyota Dyna
Production
Oct 2006
-
Jun 2011
Engine
W04D
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37080 | ||||
| Linked diagrams | ||||
| 1104 | ||||

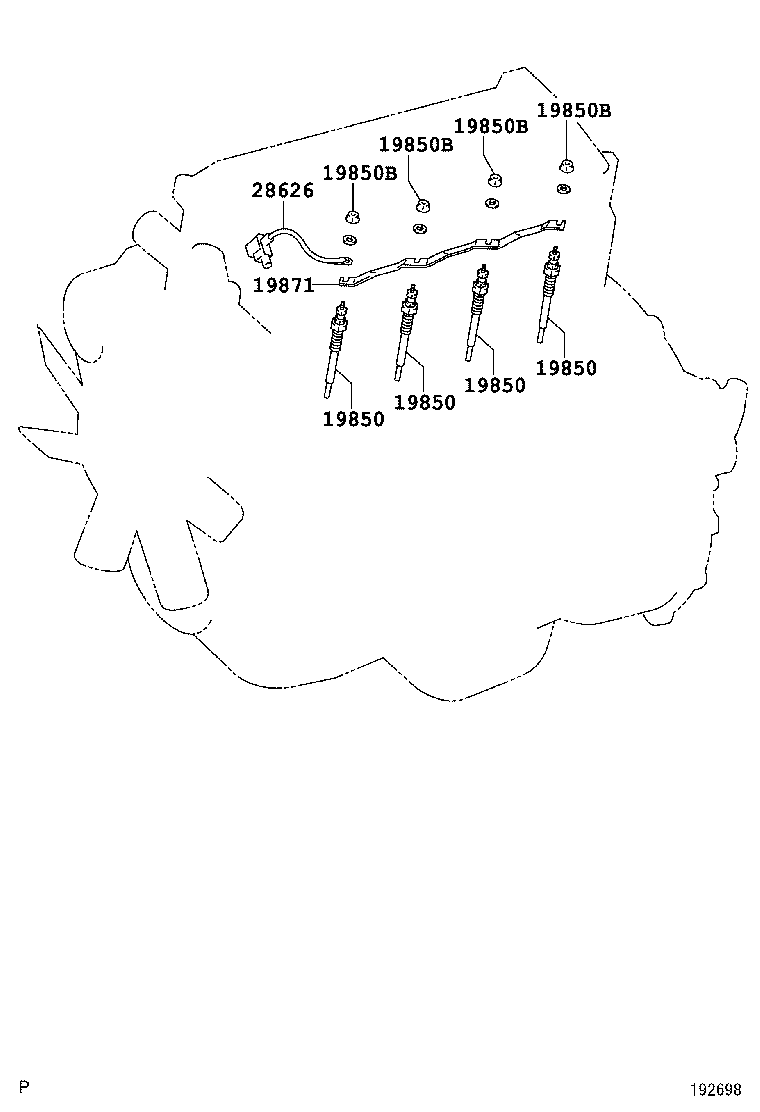

(0610- )W04D..WU41#,422..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-78031 |
W04D..WU41#,422..GEN *BV-GV=24V-23V |
4 | ||
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-78031 |
W04D..WU41#,422..GEN *BV-GV=24V-23V |
4 | ||
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-78031 |
W04D..WU41#,422..GEN *BV-GV=24V-23V |
4 | ||
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-78031 |
W04D..WU41#,422..GEN *BV-GV=24V-23V |
4 | ||
| 19850B - GROMMET, SCREW(FOR GLOW PLUG) | ||||
| 90189-04024 |
W04D..WU41#,422..GEN |
4 | ||
| 19850B - GROMMET, SCREW(FOR GLOW PLUG) | ||||
| 90189-04024 |
W04D..WU41#,422..GEN |
4 | ||
| 19850B - GROMMET, SCREW(FOR GLOW PLUG) | ||||
| 90189-04024 |
W04D..WU41#,422..GEN |
4 | ||
| 19850B - GROMMET, SCREW(FOR GLOW PLUG) | ||||
| 90189-04024 |
W04D..WU41#,422..GEN |
4 | ||
| 19871 - CONNECTOR, GLOW PLUG NO.1 | ||||
| 19871-78021 |
W04D..WU41#,422..GEN |
1 | ||
| 28626 - WIRE, GLOW PLUG | ||||
| 28626-78041 |
W04D..WU41#,422..GEN |
1 | ||
