WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

diagram 88374B 88375A 88375B 88453A 88454B 88460 88463 88463A 88471 8847237190 88550 88590 88645H 886883V210 886883V260 886883V270 88711 88712 88713 88714 88716A 8871837690 8871837730 8871837730 8871837750 88723B 9004179141 9009120609 9009904119 9009905192 9010906357 9010906357 9015960187 9017808003 9017914038 9111261435 9151160625 9151160625 9151160625 9151160625 9151160625 91511G0814 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9162660816 9165160616 9165160616 9165160616 9165160645 9415080800
Part # Description Qty Price
Common parts
88472-37190
88688-3V210
88688-3V260
88688-3V270
88718-37690
88718-37730
88718-37750
90041-79141
90091-20609
90099-04119
90099-05192
90109-06357
90159-60187
90178-08003
90179-14038
91112-61435
91511-60625
91511-G0814
91513-60828
91626-60816
91651-60616
91651-60645
94150-80800

ILLUST NO. 3 OF 3(0110- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

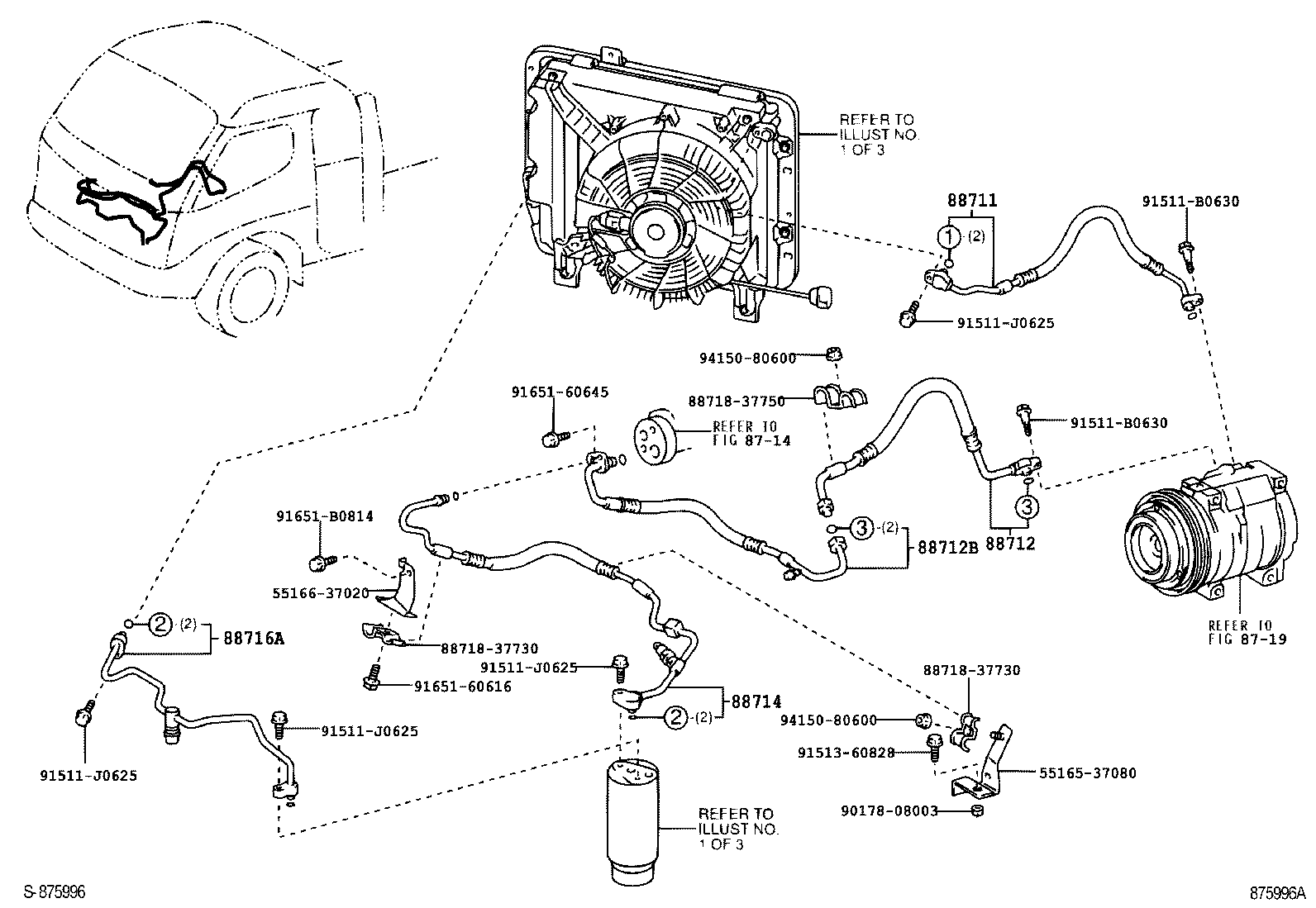

ILLUST NO. 2 OF 3(0212-0610)WU410..LHD

Click highlighted areas on diagram

PIPING

diagram 5516537080 5516637020 8714 8719 88711 88712 88712B 88714 88716A 8871837730 8871837730 8871837750 9017808003 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9165160616 9165160645 91651B0814 9415080600 9415080600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37810

WU410..LHD

 1
88711-3V081

WU41#,422..LHD

 1
88711-3V080

WU41#,422..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V380

WU410..GCC,GEN

 1
88712-3V670

WU41#,422..GCC,GEN

 1
88712-3V671

WU41#,422..GCC,GEN

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V400

XZU412,422..LHD..5F..TD;WU410,XZU414,424..LHD..5F

 1
88712-3V700

WU41#,422..LHD

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37590

WU410,XZU412,414,422,424..LHD..5F

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37850

WU410,XZU412,414,422,424..LHD..5F

 1
Common parts
55165-37080
55166-37020
88718-37730
88718-37750
90178-08003
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-B0814
94150-80600
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(0610- )WU41#,422..LHD

Click highlighted areas on diagram

PIPING

diagram 5516537080 5516637020 8714 8719 88711 88712 88712B 88716A 8871837730 8871837730 8871837750 88721A 9017808003 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9165160616 9165160645 91651B0814 9415080600 9415080600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37810

WU410..LHD

 1
88711-3V081

WU41#,422..LHD

 1
88711-3V080

WU41#,422..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3V380

WU410..GCC,GEN

 1
88712-3V670

WU41#,422..GCC,GEN

 1
88712-3V671

WU41#,422..GCC,GEN

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V400

XZU412,422..LHD..5F..TD;WU410,XZU414,424..LHD..5F

 1
88712-3V700

WU41#,422..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37850

WU410,XZU412,414,422,424..LHD..5F

 1
Common parts
55165-37080
55166-37020
88718-37730
88718-37750
90178-08003
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-B0814
94150-80600
Linked diagrams
8714
8719
