WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

AUTO A/C OR PUSH TYPE MANUAL A/C

diagram 87116A 87165C 88501 88510 88510 88510F 88515 88625 8862628010 88650 88710A 9009900968 9009904493 9009904497 9015950322 9015960096 9162640620 9162640620 9331914006
Part # Description Qty Price
Common parts
88626-28010
90099-00968
90099-04493
90099-04497
90159-50322
90159-60096
91626-40620
93319-14006

ILLUST NO. 1 OF 2(0010- )

Click highlighted areas on diagram

LEVER TYPE MANUAL A/C

diagram 87116A 87138C 88501 88510 88510 88510F 88515 88625 8862628010 88650C 88710A 9009900968 9009904493 9009904497 9015950322 9015960096 9162640620 9162640620 9331914006
Part # Description Qty Price
Common parts
88626-28010
90099-00968
90099-04493
90099-04497
90159-50322
90159-60096
91626-40620
93319-14006

ILLUST NO. 2 OF 2(0110- )BU410,420,WU41#,42#,XZU404,412,413,414,415,417,420,422,423,424,425,427,4

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

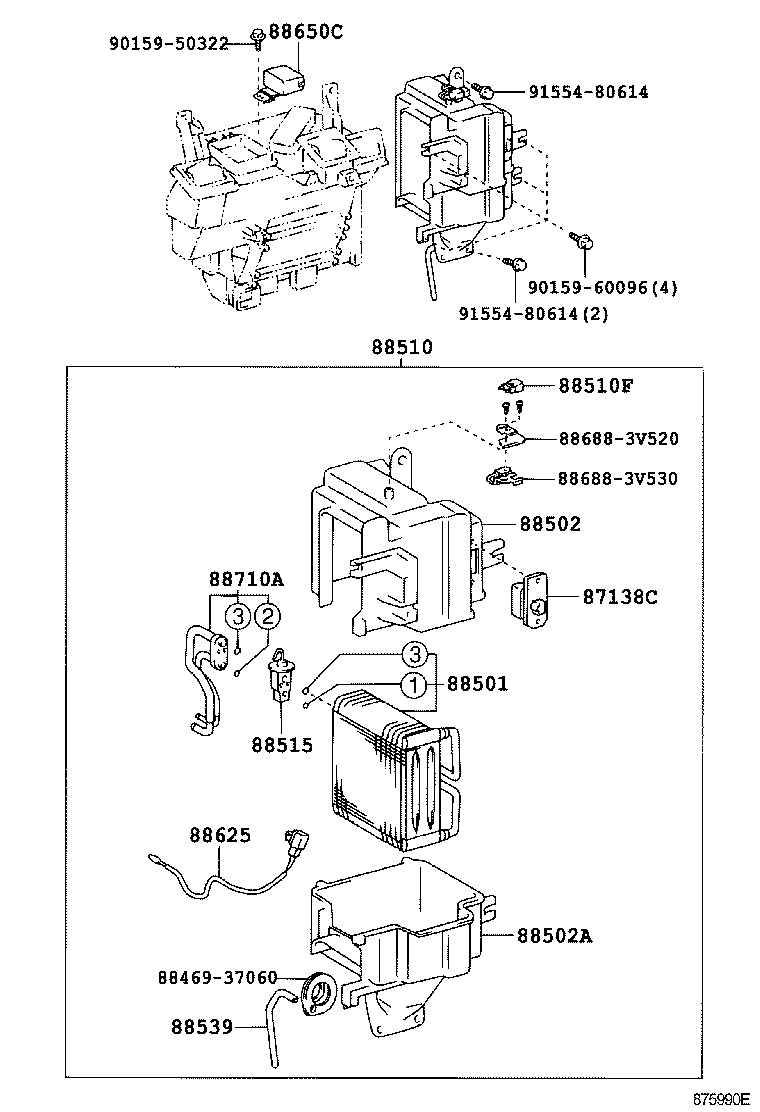

ILLUST NO. 1 OF 2(0212-0809)WU41#,422,XZU413,417,423,427..LHD ; (0212- )XZU414,424,434..LHD ; (02

Click highlighted areas on diagram

diagram 87138C 8846937060 88501 88502 88502A 88510 88510F 88515 88539 88625 88650C 886883V520 886883V530 88710A 9015950322 9015960096 9155480614 9155480614
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37220

WU41#,422,XZU413,417,423,427..LHD

 1
87138-37220

WU410,XZU412,414,422,424..LHD..5F

 1
87138-37090

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37070

WU410,XZU412,414,422,424..LHD..5F

 1
88510 - UNIT ASSY, COOLER
88510-37200

WU41#,422,XZU413,417,423,427..LHD

 1
88510-37270

WU41#,422,XZU413,417,419,423,427,429,439..LHD

 1
88510-37200

WU410,XZU412,414,422,424..LHD..5F

 1
88510F - HOLDER, FUSE
82630-95J03

WU410,XZU412,414,422,424..LHD..5F

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

WU410,XZU41#,422,424..LHD..5F

 1
88515-28160

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37070

WU410,XZU412,414,422,424..LHD..5F

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

WU410,XZU412,414,422,424..LHD..5F

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

WU410,XZU412,414,422,424..LHD..5F

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37460

WU410,XZU412,414,422,424..LHD..5F

 1
Common parts
88469-37060
88688-3V520
88688-3V530
90159-50322
90159-60096
91554-80614

ILLUST NO. 1 OF 2(0809- )WU41#,422,XZU413,417,419,423,427,429,439..LHD

Click highlighted areas on diagram

diagram 87116A 87138C 88501 88510 88515 88539 88578B 88578C 88625 8862628010 88650C 88710A 88710B 9009900968 9009904493 9009904497 9015950322 9015960096 9155480614 9155480614
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37220

WU41#,422,XZU413,417,423,427..LHD

 1
87138-37220

WU410,XZU412,414,422,424..LHD..5F

 1
87138-37090

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37070

WU410,XZU412,414,422,424..LHD..5F

 1
88510 - UNIT ASSY, COOLER
88510-37200

WU41#,422,XZU413,417,423,427..LHD

 1
88510-37270

WU41#,422,XZU413,417,419,423,427,429,439..LHD

 1
88510-37200

WU410,XZU412,414,422,424..LHD..5F

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

WU410,XZU41#,422,424..LHD..5F

 1
88515-28160

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37070

WU410,XZU412,414,422,424..LHD..5F

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

WU410,XZU412,414,422,424..LHD..5F

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

WU410,XZU412,414,422,424..LHD..5F

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37460

WU410,XZU412,414,422,424..LHD..5F

 1
Common parts
88626-28010
90099-00968
90099-04493
90099-04497
90159-50322
90159-60096
91554-80614
