8401 - SWITCH & RELAY & COMPUTER

WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-11002
90109-11008
90164-50048
90170-11206
90201-09351
90461-07028
90468-08007
93315-14012
93319-15012
93540-16014
93566-14512
Linked diagrams
5551

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06011
90179-06015
90179-06070
90179-06078
91511-40612
91551-40616
91611-40612
91611-40616
91651-40612
91651-40616
91651-40816
93319-15008
93319-15014
94115-40500
94120-40800
Linked diagrams
1903
8406
8501

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06142
90179-06007
90179-06158
90464-00190
90560-08268
91611-40812
91611-40816
91611-41025
91651-40612
91651-40820
91656-40818
93319-14010
94110-40800
94120-41000
Linked diagrams
4711

(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-36020
90202-10012

ILLUST NO. 6 OF 9(0010- )

Click highlighted areas on diagram

IGNITION SW. & COMBINATION SW.

Part #	Description	Period	Qty	Price
Common parts
82711-16830
82716-37240
90080-46104
90168-40129
90464-00551
91611-G0612
93319-15012
Linked diagrams
4501

ILLUST NO. 1 OF 9(0010- )

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty	Price
Common parts
90031-19110
90034-01011
90034-30041
90202-10012
90404-10024

ILLUST NO. 2 OF 9(0010- )MTM

Click highlighted areas on diagram

TRANSMISSION & TRANSFER

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 9(0010- )

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty	Price
Common parts
90179-06158
91651-B0825
Linked diagrams
8405
8414

ILLUST NO. 4 OF 9(0010- )

Click highlighted areas on diagram

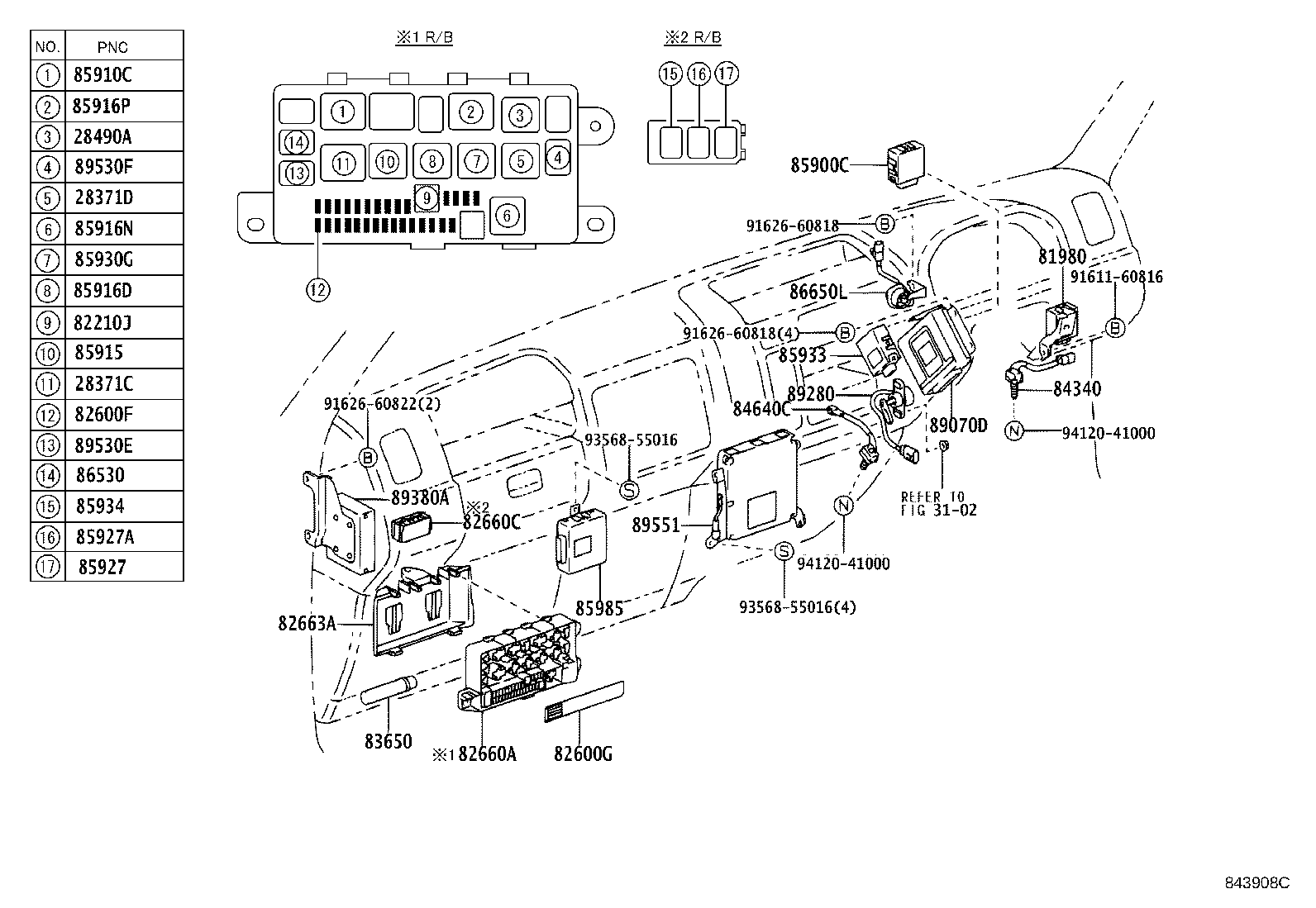

INSTRUMENT PANEL & COWL

Part #	Description	Period	Qty	Price
Common parts
91611-60816
91626-60818
91626-60822
93568-55016
94120-41000
Linked diagrams
3102

ILLUST NO. 5 OF 9(0010- )

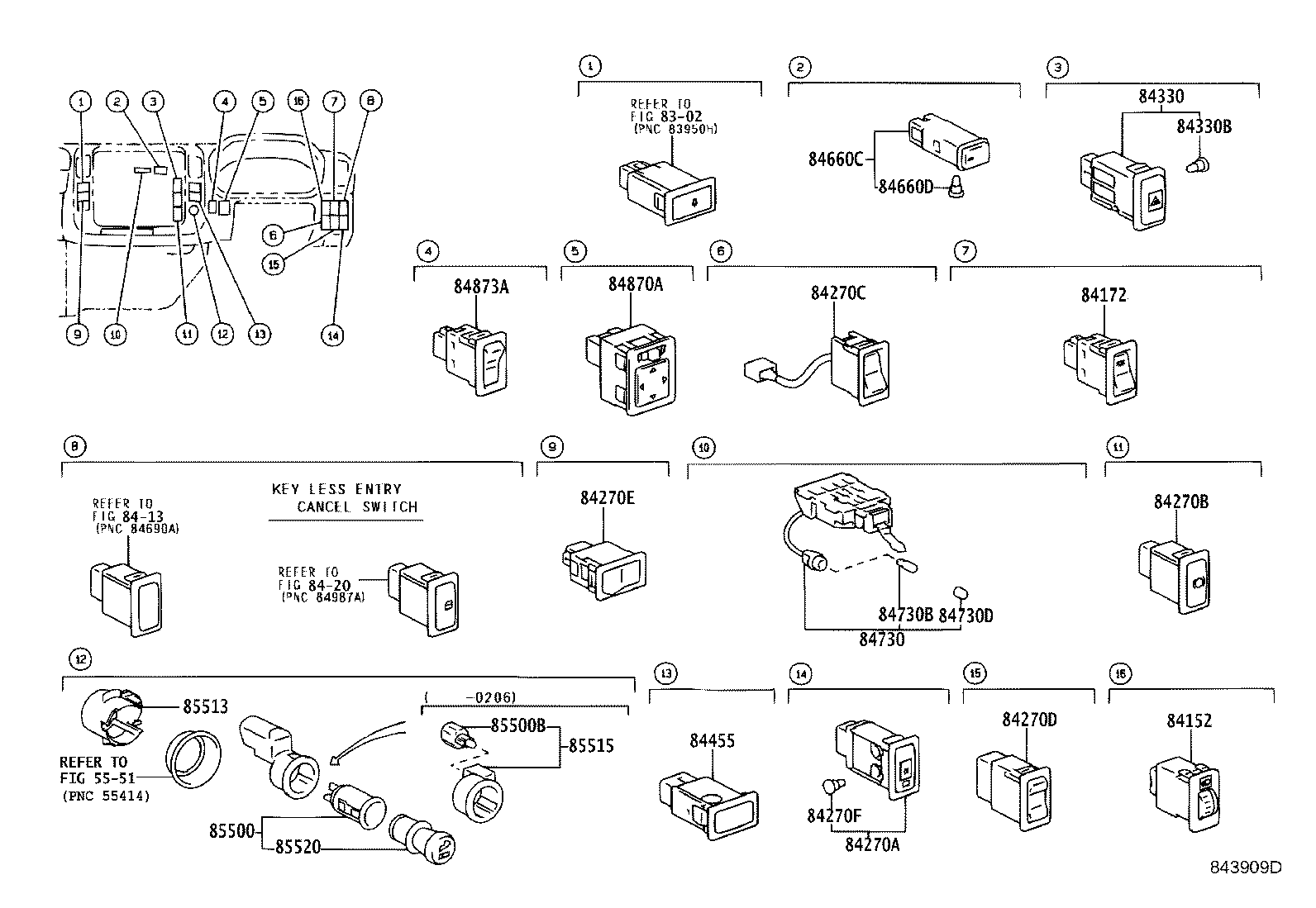

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCH

Part #	Description	Period	Qty	Price
Linked diagrams
5551
8302
8413
8420

ILLUST NO. 7 OF 9(0010- )

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

Part #	Description	Period	Qty	Price
Common parts
90109-06296
90164-30009

ILLUST NO. 8 OF 9(0010- )

Click highlighted areas on diagram

TILT SWITCH

Part #	Description	Period	Qty	Price
Common parts
90178-06002

ILLUST NO. 9 OF 9(0010- )

Click highlighted areas on diagram

REAR BODY

Part #	Description	Period	Qty	Price
Common parts
91611-60816
93319-A4010
94130-00802

ILLUST NO. 7 OF10(0110- )LHD

Click highlighted areas on diagram

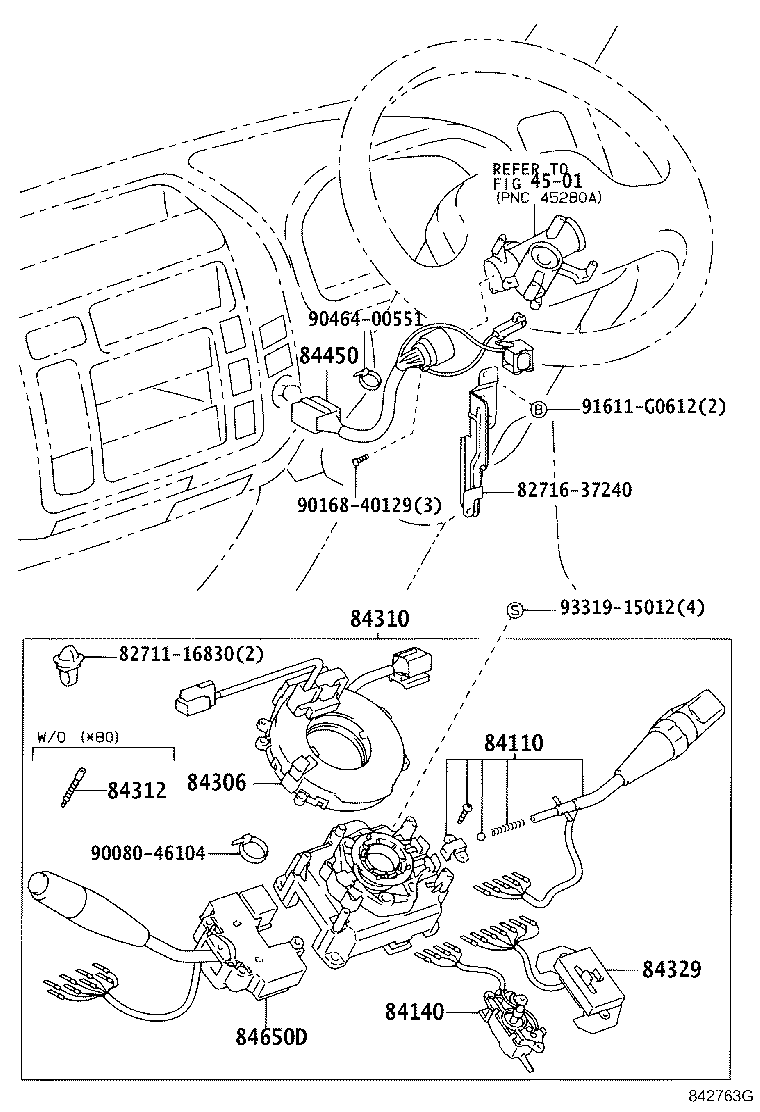

STEERING

Part #	Description	Period	Qty
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80223	WU410,XZU412,414,422,424..LHD..5F	10/2001 - 10/2006	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-37061	WU410,XZU412,414,422,424..LHD..5F	07/2003 - 10/2006	1
84140-37060	WU410,XZU41#,422,424,434..LHD	10/2001 - 07/2003	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-37221	WU410,XZU41#,422,424,434..LHD	07/2003 - 02/2004	1
84310-37220	WU410,XZU41#,422,424,434..LHD	10/2001 - 07/2003	1
84310-37222	WU410,XZU412,414,422,424..LHD..5F	02/2004 - 10/2006	1
84312 - PLATE, HORN CONTACT
84312-20011	WU410,XZU412,414,422,424..LHD..5F	07/2003 - 10/2006	1
84312-20011	WU410,XZU41#,422,424,434..LHD	10/2001 - 06/2003	1
84329 - SWITCH, TURN SIGNAL
84329-37081	WU410,XZU412,414,422,424..LHD..5F	07/2003 - 10/2006	1
84329-37080	WU410,XZU41#,422,424,434..LHD	10/2001 - 07/2003	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-37160	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-37180	WU410,XZU41#,422,424,434..LHD	10/2001 - 07/2003	1
84652-37182	WU410,XZU412,414,422,424..LHD..5F	02/2004 - 10/2006	1
84652-37181	WU410,XZU41#,422,424,434..LHD	07/2003 - 02/2004	1
Common parts
82711-16830
82711-1E340
82716-37241
90080-46104
90168-40129
90464-00551
91611-G0612
93319-15012
Linked diagrams
4501

ILLUST NO. 8 OF10(0110- )LHD

Click highlighted areas on diagram

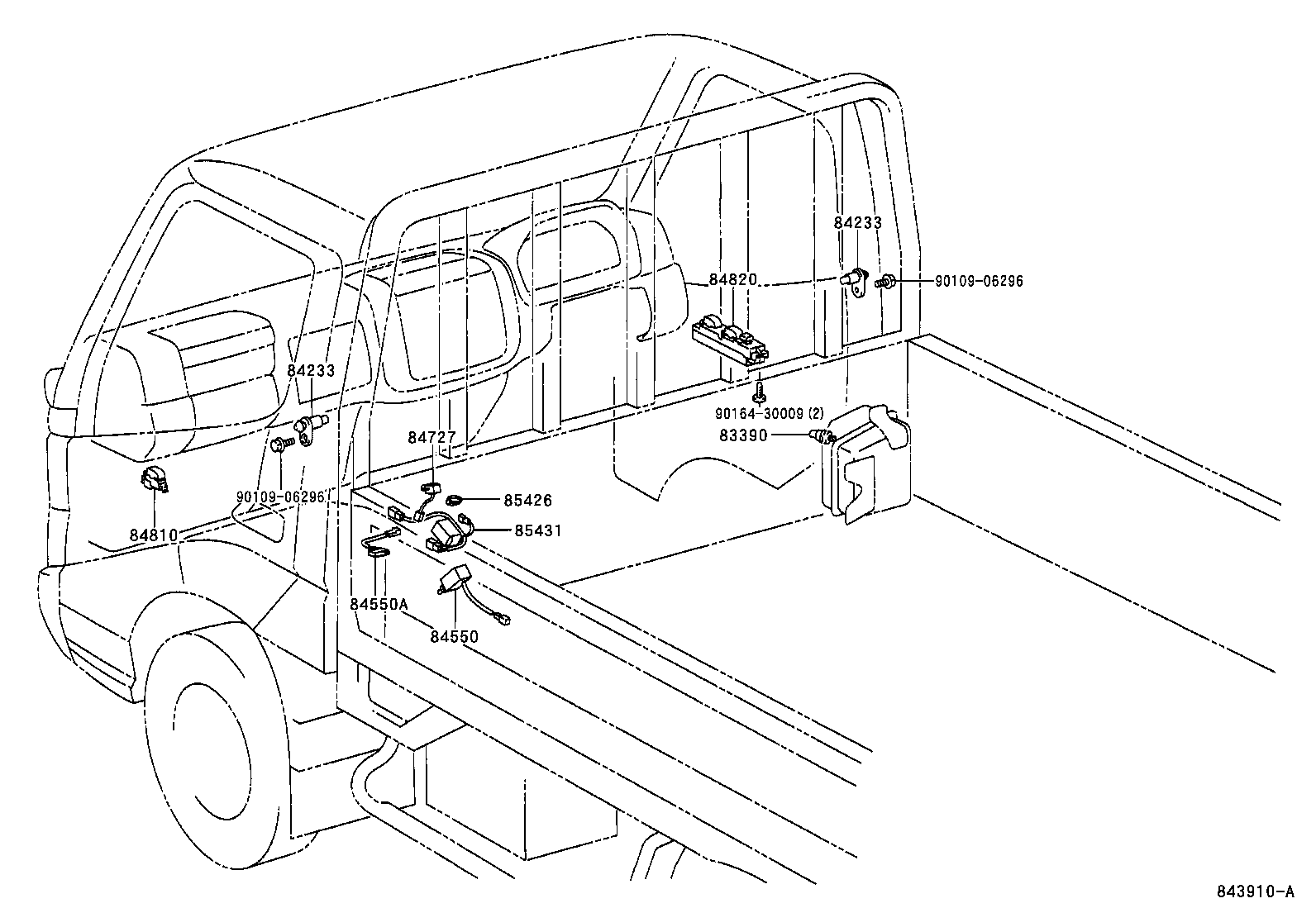

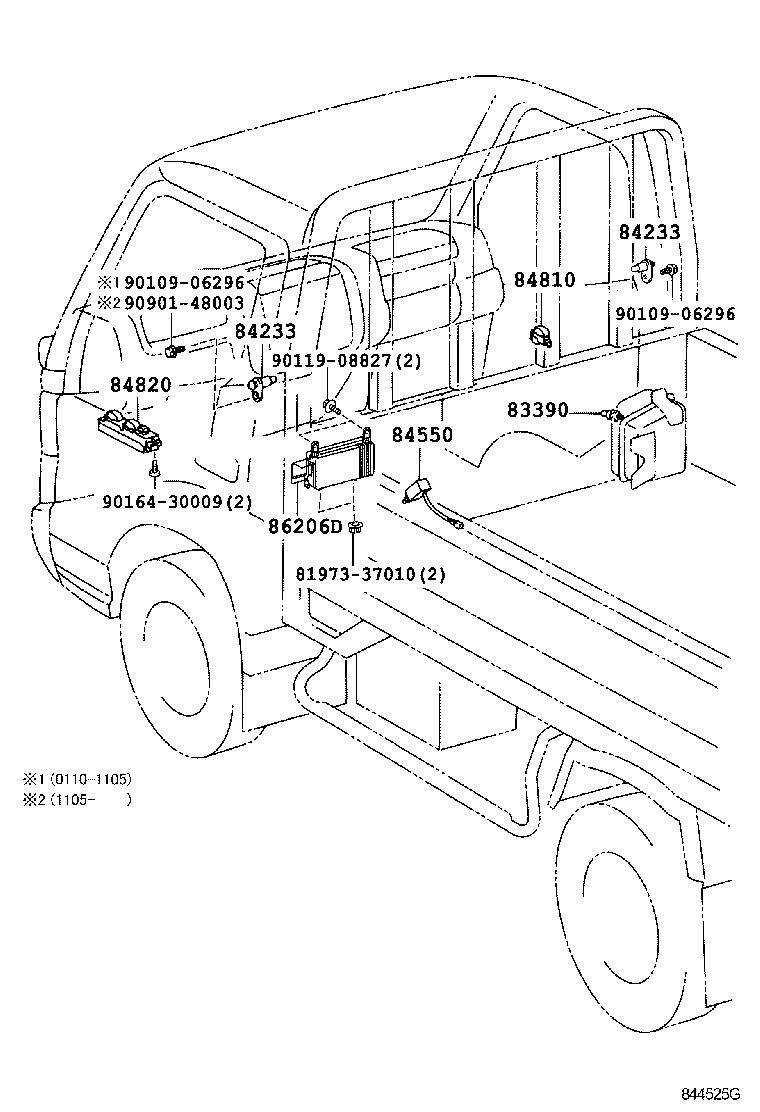

DOOR,ROOF & FLOOR

Part #	Description	Period	Qty
83390 - SWITCH ASSY, VACUUM WARNING
83390-12340	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)	10/2001 - 10/2006	1
84231-60070	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)	10/2001 - 10/2006	1
84231-60070	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL	10/2006 - 06/2011	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-37021	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
81973-37010
90109-06296
90119-08827
90164-30009
90901-48003

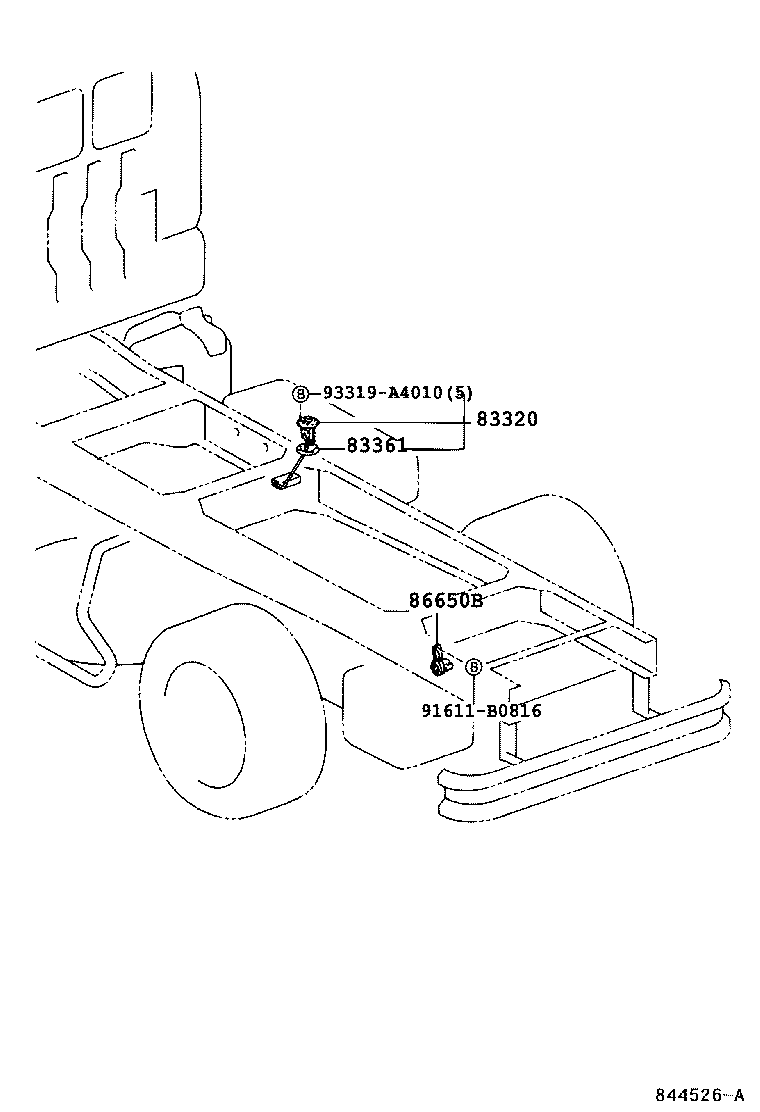

ILLUST NO.10 OF10(0110- )

Click highlighted areas on diagram

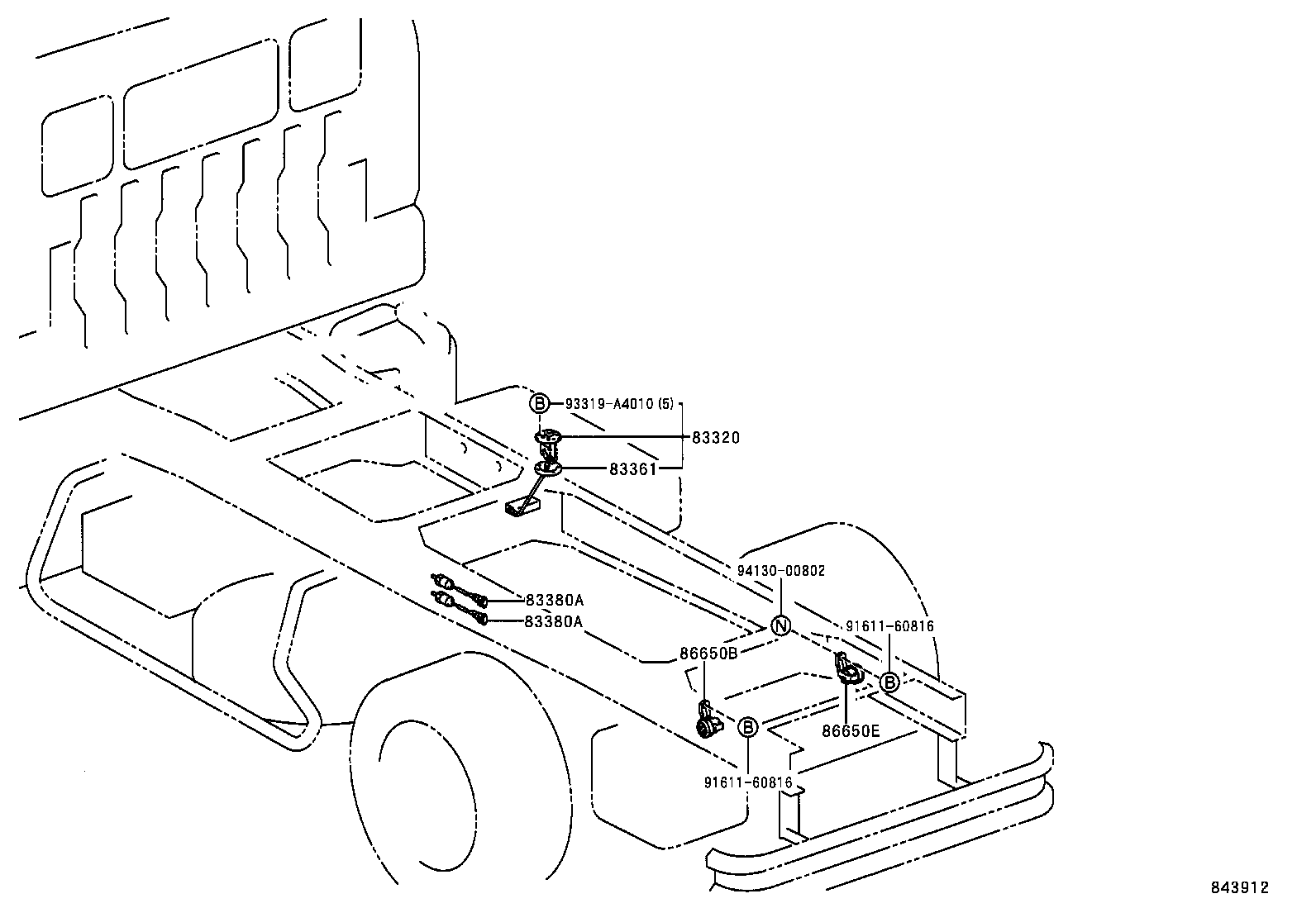

REAR BODY

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80374	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 01/2008	1
83320-80374	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-37050	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
91611-B0816
93319-A4010

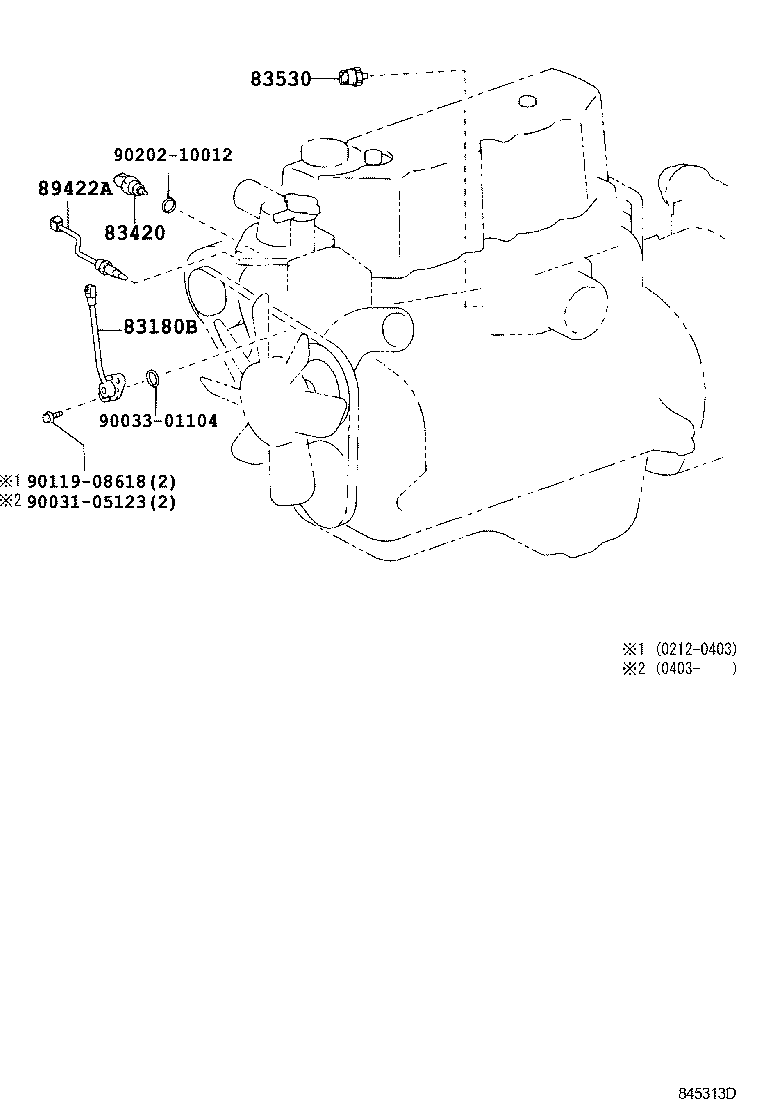

ILLUST NO. 1 OF10(0212- )WU41#,42#

Click highlighted areas on diagram

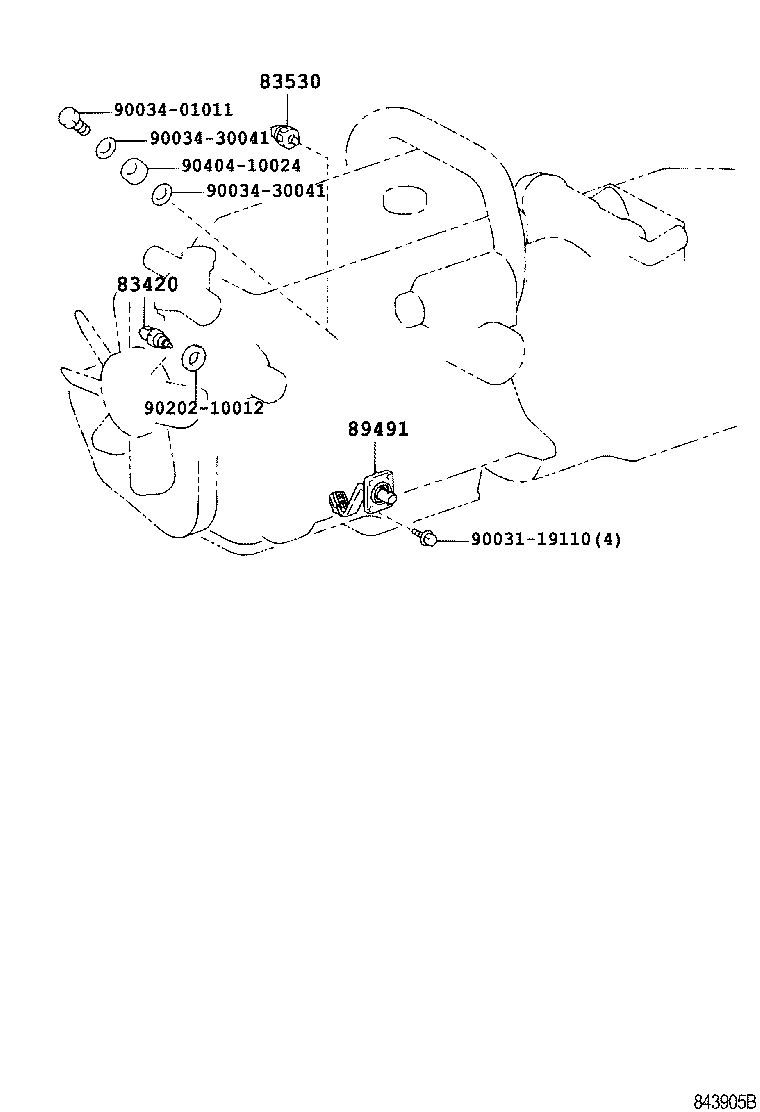

ENGINE

Part #	Description	Period	Qty
83180B - DETECTOR ASSY, REVOLUTION
83180-37022	WU412,42#;WU410..65T;WU410..75T..GEN	10/2006 - 12/2999	1
83180-37022	WU410..GCC,GEN	12/2002 - 10/2006	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-37020	WU410..GCC,GEN	12/2002 - 10/2006	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-37030	WU410,XZU412,422..(GCC,GEN)..DSL	12/2002 - 10/2006	1
83530-37030	WU412,42#;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
89422A - SENSOR, WATER TEMPERATURE
89422-37022	XZU404,41#,42#,434	10/2001 - 02/2003	1
89422-37040	WU410..GCC,GEN	12/2002 - 10/2006	1
89422-37040	WU412,42#;WU410..65T;WU410..75T..GEN	10/2006 - 12/2999	1
Common parts
90031-05123
90033-01104
90119-08618
90202-10012

ILLUST NO. 6 OF10(0610- )LHD..DCRTJ,DCRTK,DSL

Click highlighted areas on diagram

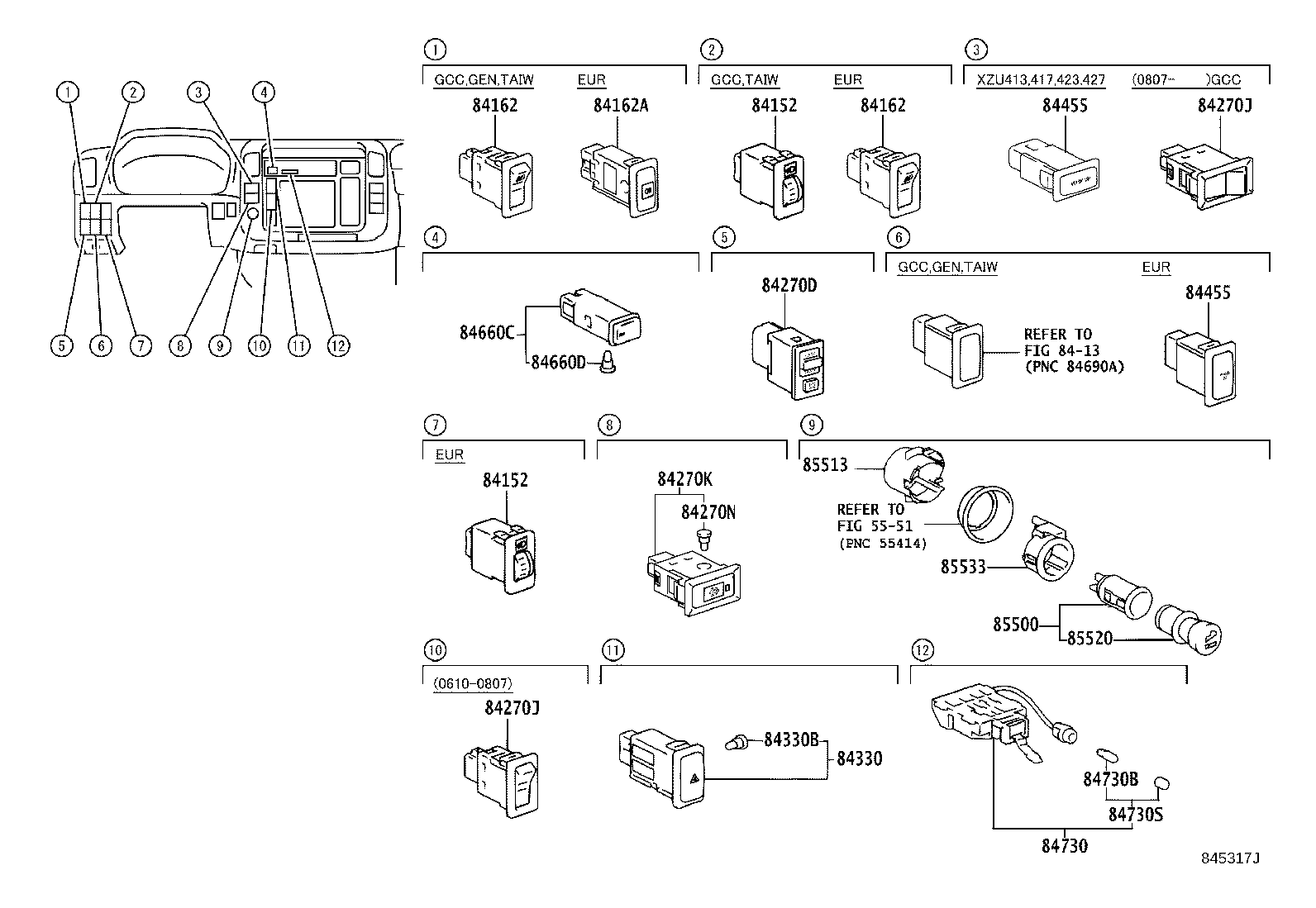

INSTRUMENT PANEL SWITCH

Part #	Description	Period	Qty
84162 - SWITCH, FRONT FOG LAMP
84160-37030	WU410,XZU412,414,422,424..LHD..5F	02/2003 - 10/2006	1
84162 - SWITCH, FRONT FOG LAMP
84160-37030	WU410,XZU412,414,422,424..LHD..5F	02/2003 - 10/2006	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-37090	XZU415,425,435..DCR;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW	12/2002 - 02/2008	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10570	BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD 28V 0.024A	10/2001 - 02/2008	1
84660C - SWITCH, COOLER
84660-37010	WU410,XZU412,414,422,424..LHD..5F	02/2003 - 10/2006	1
84660D - BULB(FOR COOLER SWITCH)
88607-37010	WU410,XZU412,414,422,424..LHD..5F 28V 0.87W	02/2003 - 10/2006	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-37050	BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD	10/2001 - 02/2008	1
84730B - BULB, HEATER BLOWER SWITCH
90981-16020	WU41#,422,XZU413,423..LHD 24V 1.8W	10/2006 - 05/2009	1
90981-16020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 24V 1.8W	10/2001 - 10/2006	1
84730S - BULB, HEATER BLOWER SWITCH
90010-01153	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 24V 1.8W,W(CAP)	10/2001 - 10/2006	1
85500 - LIGHTER ASSY, CIGARETTE
85500-36020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-95400	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-26010	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Linked diagrams
5551
8413

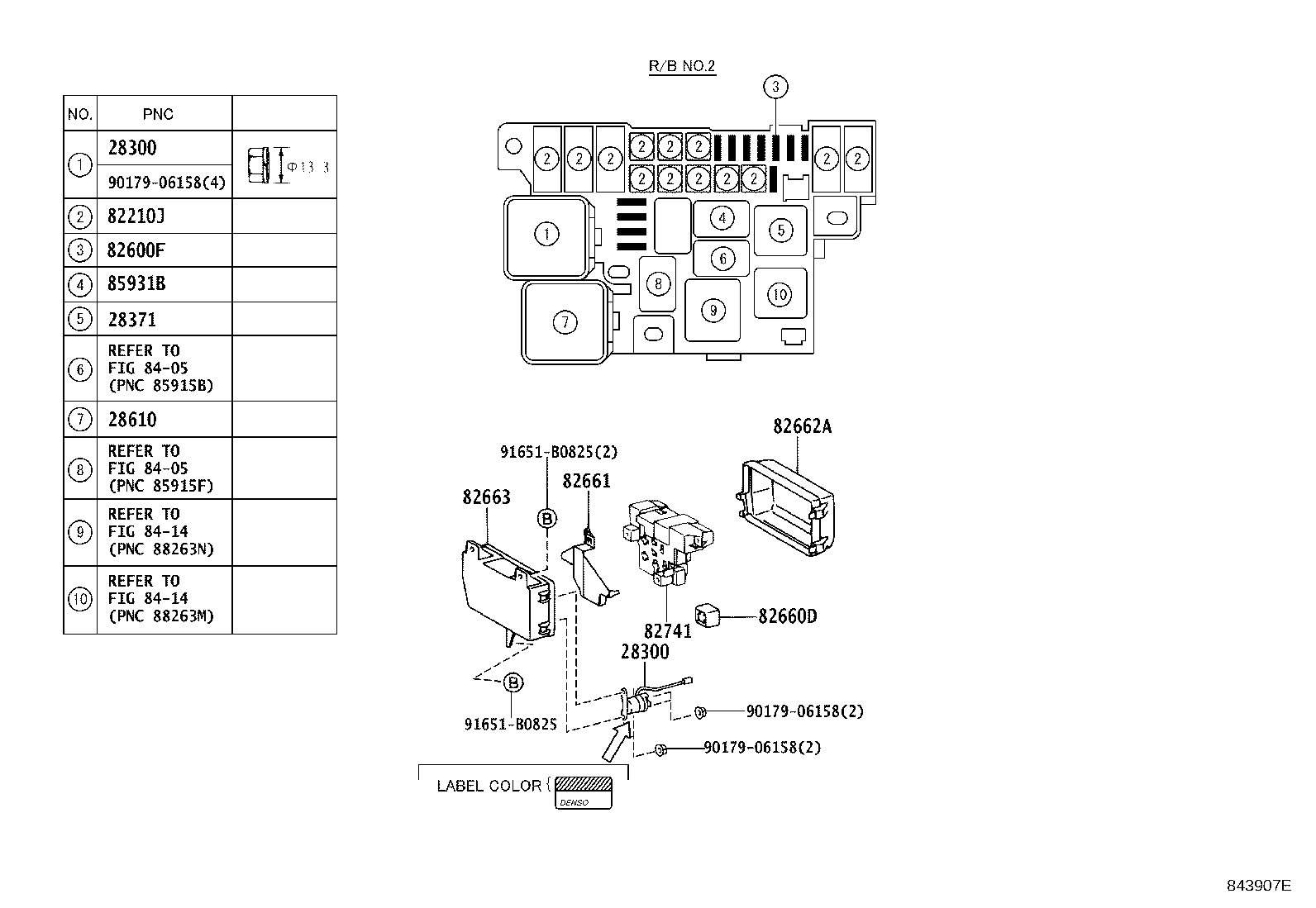

ILLUST NO. 4 OF10(0110-0610)5F..GEN ; (0110-0708)EUR ; (0212-0610)ARL,GCC ; (0304-0802)SA ; (0401-08

Click highlighted areas on diagram

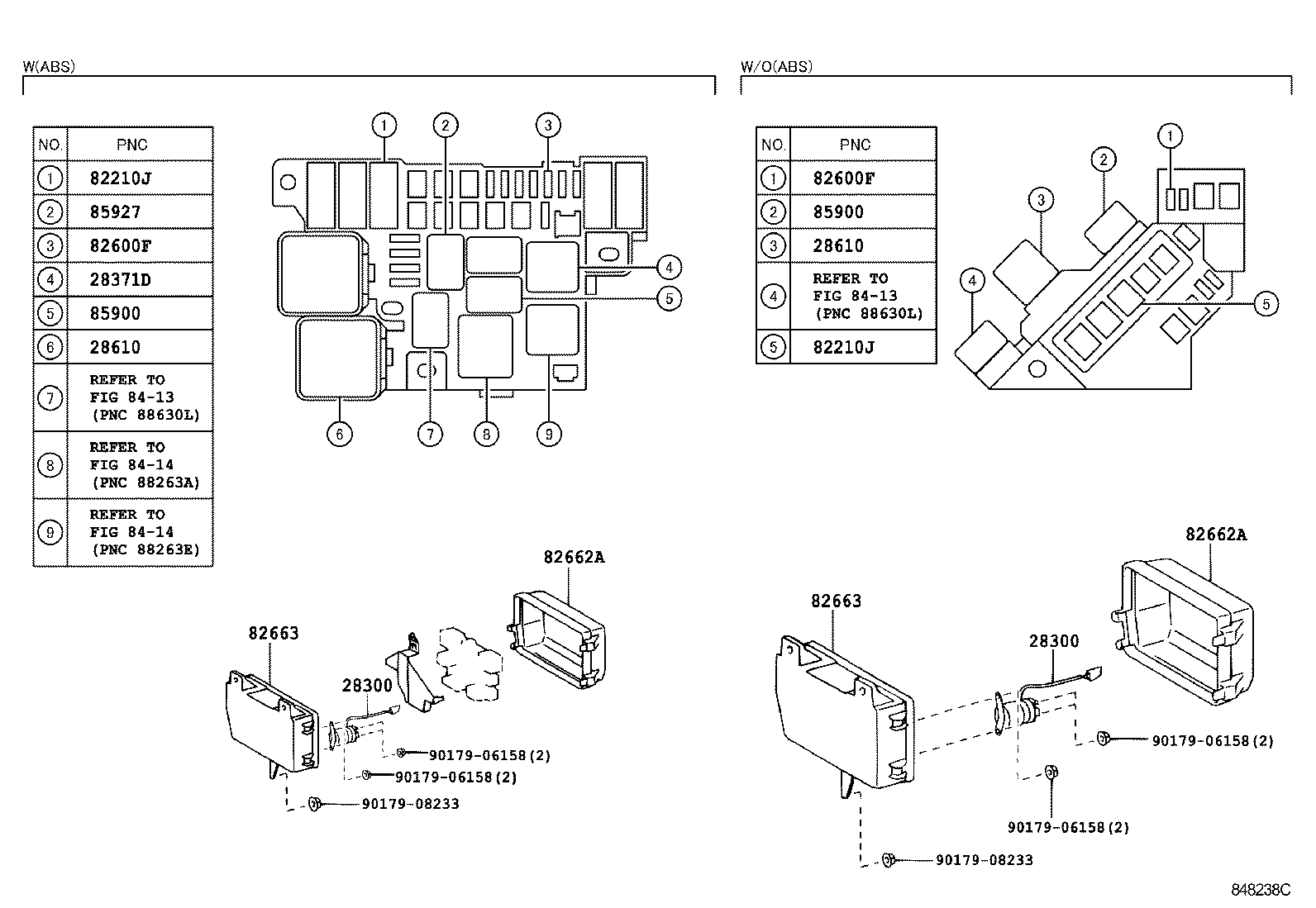

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-78020	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28300 - RELAY ASSY, STARTER
28300-78020	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58230	S05C,W04D..WU410,XZU412,422..GEN..DSL	02/2003 - 10/2006	1
28610-58230	W04D..WU41#,422..GEN	10/2006 - 06/2011	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58230	S05C,W04D..WU410,XZU412,422..GEN..DSL	02/2003 - 10/2006	1
28610-58230	W04D..WU41#,422..GEN	10/2006 - 06/2011	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
90982-08188	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 30A,TERM.:FEMALE,PNK,PACIFIC	10/2006 - 06/2011	1
90982-08189	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 40A,TERM.:FEMALE,GRN	10/2006 - 06/2011	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
90982-08188	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 30A,TERM.:FEMALE,PNK,PACIFIC	10/2006 - 06/2011	1
90982-08189	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 40A,TERM.:FEMALE,GRN	10/2006 - 06/2011	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
90982-09007	WU412,42#;WU410..65T;WU410..75T..GEN 5A,MINI FUSE,TAN	10/2006 - 06/2011	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
90982-09007	WU412,42#;WU410..65T;WU410..75T..GEN 5A,MINI FUSE,TAN	10/2006 - 06/2011	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37220	WU410,XZU412,422..GCC,GEN	12/2002 - 05/2004	1
82662-37330	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
82662-37221	WU410,XZU412,422..5F..(GCC,GEN)	05/2004 - 10/2006	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37220	WU410,XZU412,422..GCC,GEN	12/2002 - 05/2004	1
82662-37330	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
82662-37221	WU410,XZU412,422..5F..(GCC,GEN)	05/2004 - 10/2006	1
Common parts
90179-06158
90179-08233
91651-B0825
Linked diagrams
8405
8414

ILLUST NO. 4 OF10(0610- )EUR,GCC,GEN,TAIW..DCRTJ,DCRTK,DSL ; (0802- )SA

Click highlighted areas on diagram

R/B NO.2

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-78020	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28300 - RELAY ASSY, STARTER
28300-78020	S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58230	S05C,W04D..WU410,XZU412,422..GEN..DSL	02/2003 - 10/2006	1
28610-58230	W04D..WU41#,422..GEN	10/2006 - 06/2011	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58230	S05C,W04D..WU410,XZU412,422..GEN..DSL	02/2003 - 10/2006	1
28610-58230	W04D..WU41#,422..GEN	10/2006 - 06/2011	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
90982-08188	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 30A,TERM.:FEMALE,PNK,PACIFIC	10/2006 - 06/2011	1
90982-08189	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 40A,TERM.:FEMALE,GRN	10/2006 - 06/2011	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
90982-08188	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 30A,TERM.:FEMALE,PNK,PACIFIC	10/2006 - 06/2011	1
90982-08189	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 40A,TERM.:FEMALE,GRN	10/2006 - 06/2011	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
90982-09007	WU412,42#;WU410..65T;WU410..75T..GEN 5A,MINI FUSE,TAN	10/2006 - 06/2011	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
90982-09007	WU412,42#;WU410..65T;WU410..75T..GEN 5A,MINI FUSE,TAN	10/2006 - 06/2011	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37220	WU410,XZU412,422..GCC,GEN	12/2002 - 05/2004	1
82662-37330	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
82662-37221	WU410,XZU412,422..5F..(GCC,GEN)	05/2004 - 10/2006	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37220	WU410,XZU412,422..GCC,GEN	12/2002 - 05/2004	1
82662-37330	WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW	10/2006 - 06/2011	1
82662-37221	WU410,XZU412,422..5F..(GCC,GEN)	05/2004 - 10/2006	1
85927 - RELAY, COOLING FAN
90987-02017	WU410,XZU412,414,422,424..LHD..5F	02/2003 - 10/2006	1
Common parts
90179-06158
90179-08233
Linked diagrams
8413
8414

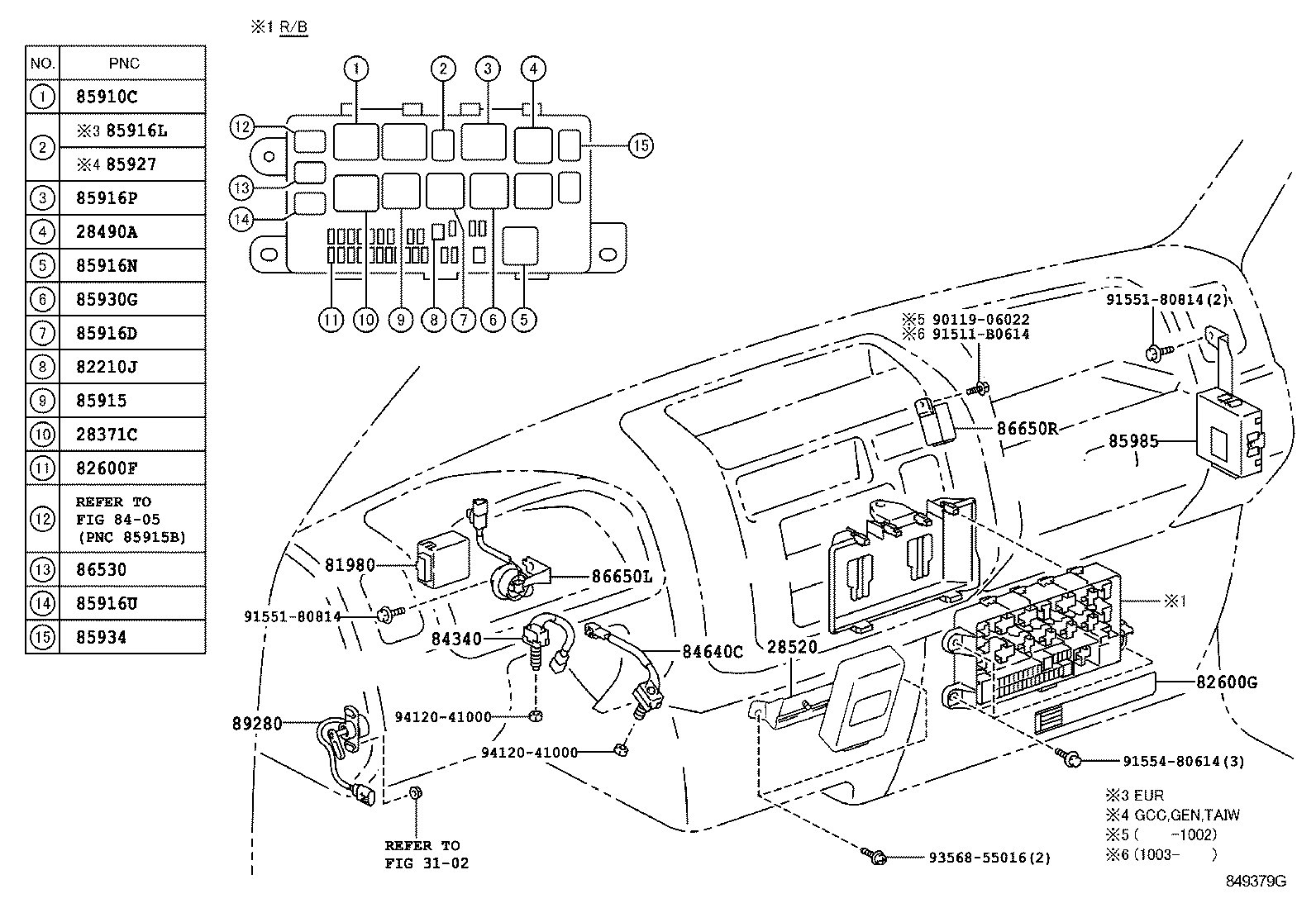

ILLUST NO. 5 OF10(0610- )LHD..DCRTJ,DCRTK,DSL

Click highlighted areas on diagram

INSTRUMENT PANEL & COWL

Part #	Description	Period	Qty
28520 - TIMER ASSY, PREHEATING
28520-78030	W04D..WU410..GEN	12/2002 - 10/2006	1
28520-78030	W04D..WU41#,422..GEN	10/2006 - 06/2011	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37200	WU41#,422,XZU413,423..LHD	10/2006 - 06/2011	1
81980-37200	WU410,XZU412,414,422,424..LHD..5F	12/2002 - 10/2006	1
82210J - FUSIBLE LINK
90982-08202	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 60A,TERM.:MALE,YEL	10/2001 - 10/2006	1
90982-08203	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 80A,TERM.:MALE,BLK	10/2001 - 10/2006	1
90982-08280	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 30A,TERM.:FEMALE,PNK	10/2001 - 10/2006	1
90982-08282	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 50A,TERM.:FEMALE,RED	10/2001 - 10/2006	1
90982-08281	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 40A,TERM.:FEMALE,GRN	10/2001 - 10/2006	1
90982-08246	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 100A,TERM.:MALE,BLUE	10/2001 - 10/2006	1
90982-08188	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 30A,TERM.:FEMALE,PNK,PACIFIC	10/2006 - 06/2011	1
90982-08189	WU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,417,427 40A,TERM.:FEMALE,GRN	10/2006 - 06/2011	1
82600F - FUSE, FUSE BLOCK
90982-09009	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 10A,MINI FUSE,RED	10/2001 - 10/2006	1
90982-09010	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 15A,MINI FUSE,BLUE	10/2001 - 10/2006	1
90982-09011	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 20A,MINI FUSE,YELLOW	10/2001 - 10/2006	1
90982-09008	XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 7.5A,MINI FUSE,BRN	10/2001 - 10/2006	1
90982-09007	WU412,42#;WU410..65T;WU410..75T..GEN 5A,MINI FUSE,TAN	10/2006 - 06/2011	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-37310	WU410,XZU412,422..LHD SPANISH & ARABIC	12/2002 - 05/2003	1
82683-37300	WU410,XZU412,422..GEN ENGLISH & FRANCE	12/2002 - 05/2003	1
82683-37311	WU410,XZU412,422..LHD SPANISH & ARABIC	05/2003 - 10/2006	1
82683-37301	WU410,XZU412,422..GEN ENGLISH & FRANCE	05/2003 - 10/2006	1
82683-37400	WU41#,422,XZU413,417,423,427..GEN,TAIW	10/2006 - 06/2011	1
82683-37420	WU41#,422..LHD..GEN ENGLISH & FRANCE	10/2006 - 06/2011	1
84340 - SWITCH ASSY, STOP LAMP
84340-37020	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
84340-37020	WU412,42#;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-37050	WU410,XZU412,422..5F..(GCC,GEN)	02/2003 - 10/2006	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04007	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85916D - RELAY, FOG LAMP
90987-02018	WU410,XZU404,412,414,422,424..5F..(GCC,GEN)	10/2001 - 10/2006	1
85916N - RELAY, TAIL LAMP
90987-02018	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85916P - RELAY, HEADLAMP
90987-02019	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
85927 - RELAY, COOLING FAN
90987-02017	WU410,XZU412,414,422,424..LHD..5F	02/2003 - 10/2006	1
85934 - RELAY, MAGNET-CLUTCH
90987-02017	WU410,XZU412,414,422,424..LHD..5F	02/2003 - 10/2006	1
86530 - RELAY ASSY, HORN
90987-02017	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
86650L - BUZZER ASSY, VACUUM WARNING
86650-37060	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
86650-37060	WU41#,422,XZU413,423..GCC,GEN	10/2006 - 12/2006	1
Common parts
90119-06022
91511-B0614
91551-80814
91554-80614
93568-55016
94120-41000
Linked diagrams
3102
8405

WU410L-TKMQS3 (2002)

(7708- )

(7708- )

(7708- )

(7708- )

ILLUST NO. 6 OF 9(0010- )

ILLUST NO. 1 OF 9(0010- )

ILLUST NO. 2 OF 9(0010- )MTM

ILLUST NO. 3 OF 9(0010- )

ILLUST NO. 4 OF 9(0010- )

ILLUST NO. 5 OF 9(0010- )

ILLUST NO. 7 OF 9(0010- )

ILLUST NO. 8 OF 9(0010- )

ILLUST NO. 9 OF 9(0010- )

ILLUST NO. 7 OF10(0110- )LHD

ILLUST NO. 8 OF10(0110- )LHD

ILLUST NO.10 OF10(0110- )

ILLUST NO. 1 OF10(0212- )WU41#,42#

ILLUST NO. 6 OF10(0610- )LHD..DCRTJ,DCRTK,DSL

ILLUST NO. 4 OF10(0110-0610)5F..GEN ; (0110-0708)EUR ; (0212-0610)ARL,GCC ; (0304-0802)SA ; (0401-08

ILLUST NO. 4 OF10(0610- )EUR,GCC,GEN,TAIW..DCRTJ,DCRTK,DSL ; (0802- )SA

ILLUST NO. 5 OF10(0610- )LHD..DCRTJ,DCRTK,DSL

Part Price Details
