WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 83100 83100B 83100G 83101 83101 83102 83110 83110B 83110G 83111 83132 83134 83134B 83135 83145A 83145B 83145C 83210 83310 83410 83910 9354014016 9356614516 9356655514
Part # Description Qty Price
Common parts
93540-14016
93566-14516
93566-55514

(7708- )

Click highlighted areas on diagram

diagram 3304 3304 3304 3304 83710 83710 83770 83798
Part # Description Qty Price
Linked diagrams
3304

(7708- )

Click highlighted areas on diagram

diagram 8271112200 9046108261 9046108417 9046108915 9046110128 9046110232 9046110254 9046110283 9046110306 9046306161 9046308375 9046312009 9046805023 9098901001 9161140816 9161140816 9161140816 9161140816 9412040800 9412640800 9412640800
Part # Description Qty Price
Common parts
82711-12200
90461-08261
90461-08417
90461-08915
90461-10128
90461-10232
90461-10254
90461-10283
90461-10306
90463-06161
90463-08375
90463-12009
90468-05023
90989-01001
91611-40816
94120-40800
94126-40800

ILLUST NO. 2 OF 3(0010- )

Click highlighted areas on diagram

TACHOGRAPH

diagram 83205 83205 83210 9015950343 9015950343
Part # Description Qty Price
Common parts
90159-50343

ILLUST NO. 3 OF 3(0010- )

Click highlighted areas on diagram

SPEED SENSOR

diagram 83181A
Part # Description Qty Price

ILLUST NO. 1 OF 3(0010- )

Click highlighted areas on diagram

METER

diagram 82824Q 82824R 83100B 83100B 83100B 83100B 83102 83110 83128 83132 83133 83134 83138G 8316120740 8316120740 8316165020 8319487704 83242 83293 83310 83878 9007600019 9007600019 9007600019 9356755016
Part # Description Qty Price
Common parts
83161-20740
83161-65020
83194-87704
90076-00019
93567-55016

(0212- )ARL,GCC,GEN,SA,TAIW ; (0408- )EUR

Click highlighted areas on diagram

COMBINATION METER

diagram 83100 83134 83138G 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-37790

WU410,XZU412,422..GEN..DSL

W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)

 1
83800-37800

WU410,XZU412,422..5F..GEN

W(SPEED METER---MILE/H & KM/H)

 1
83800-37850

WU410,XZU412,422..GEN..DSL

W(TACHOMETER)

 1
83800-3V120

WU410,XZU412,422..5F..GEN

 1
83800-37E50

WU41#,422..GEN

 1
83800-37E20

WU41#,422..GEN

W(SPEED METER---MILE/H & KM/H) & W(TACHO METER)

 1
83800-37E60

WU41#,422..GEN

W(SPEED METER---MILE/H & KM/H)

 1
83800-37E10

WU41#,422..GEN

W(TACHOMETER)

 1
83134 - COVER, COMBINATION METER, NO.1
83821-37610

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
83138G - GLASS, COMBINATION METER
83852-37250

XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)

 1
Common parts
93568-55016

(0110- )BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434

Click highlighted areas on diagram

SPEED SENSOR

diagram 83181A
Part # Description Qty Price
83181A - SENSOR, SPEEDOMETER
83181-37010

BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW

 1
83181-37010

WU420;WU410..65T;WU410..75T..GEN

 1

(0212- )

Click highlighted areas on diagram

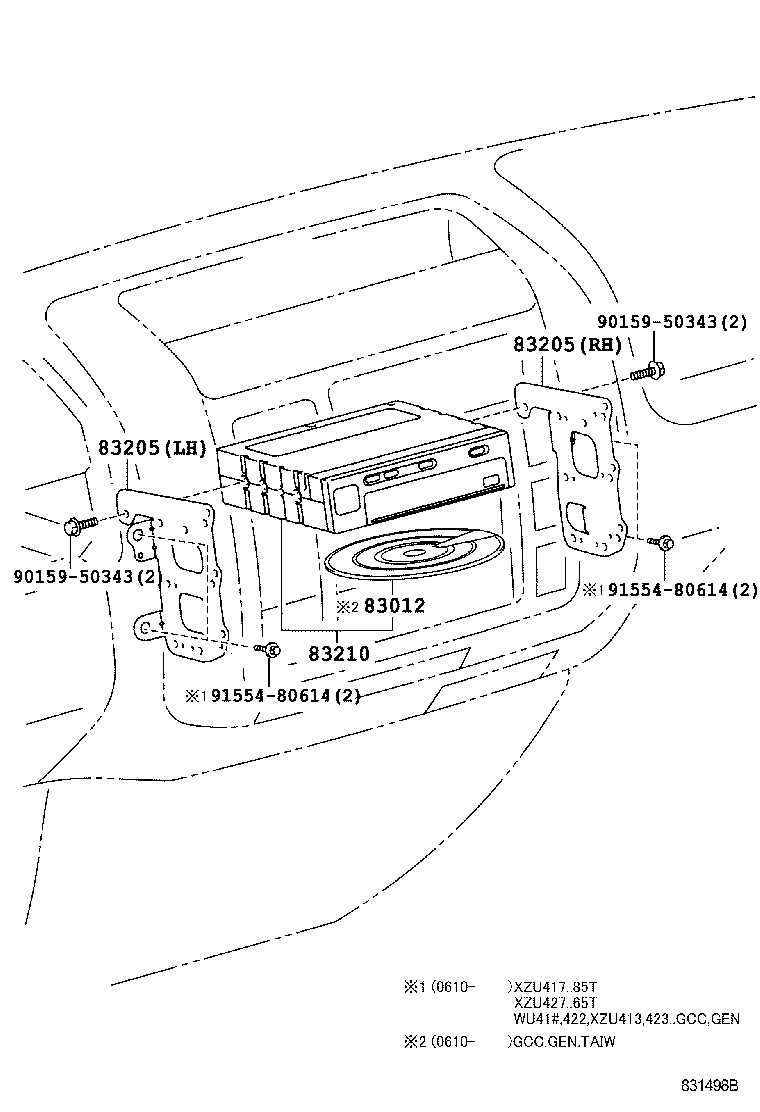

TACHOGRAPH

diagram 83012 83205 83205 83210 9015950343 9015950343 9155480614 9155480614
Part # Description Qty Price
83012 - SHEET SET, TACHOGRAPH CHART
83012-37010

XZU417..85T;XZU427..65T;WU41#,422,XZU413,423..GCC,GEN

 1
83205 - BRACKET, SUB-ASSY, TACHOGRAPH
86211-37080

WU410,XZU412,414,422,424..LHD..5F

RH

 1
86212-37060

WU410,XZU412,414,422,424..LHD..5F

LH

 1
86212-37060

WU41#,422,XZU413,417,423,427..LHD

LH

 1
86211-37080

WU41#,422,XZU413,417,423,427..LHD

RH

 1
83205 - BRACKET, SUB-ASSY, TACHOGRAPH
86211-37080

WU410,XZU412,414,422,424..LHD..5F

RH

 1
86212-37060

WU410,XZU412,414,422,424..LHD..5F

LH

 1
86212-37060

WU41#,422,XZU413,417,423,427..LHD

LH

 1
86211-37080

WU41#,422,XZU413,417,423,427..LHD

RH

 1
83210 - TACHOGRAPH ASSY
83210-37310

WU41#,422,XZU413,417,423,427..GEN,TAIW

 1
83210-37310

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 1
Common parts
90159-50343
91554-80614
