WU410L-TKMQS3 (2002)
Toyota Dyna
(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81279-91D01 | ||||
| 81629-14070 | ||||
| Linked diagrams | ||||
| 7554 | ||||
(0110- )DCR,DSL,TD

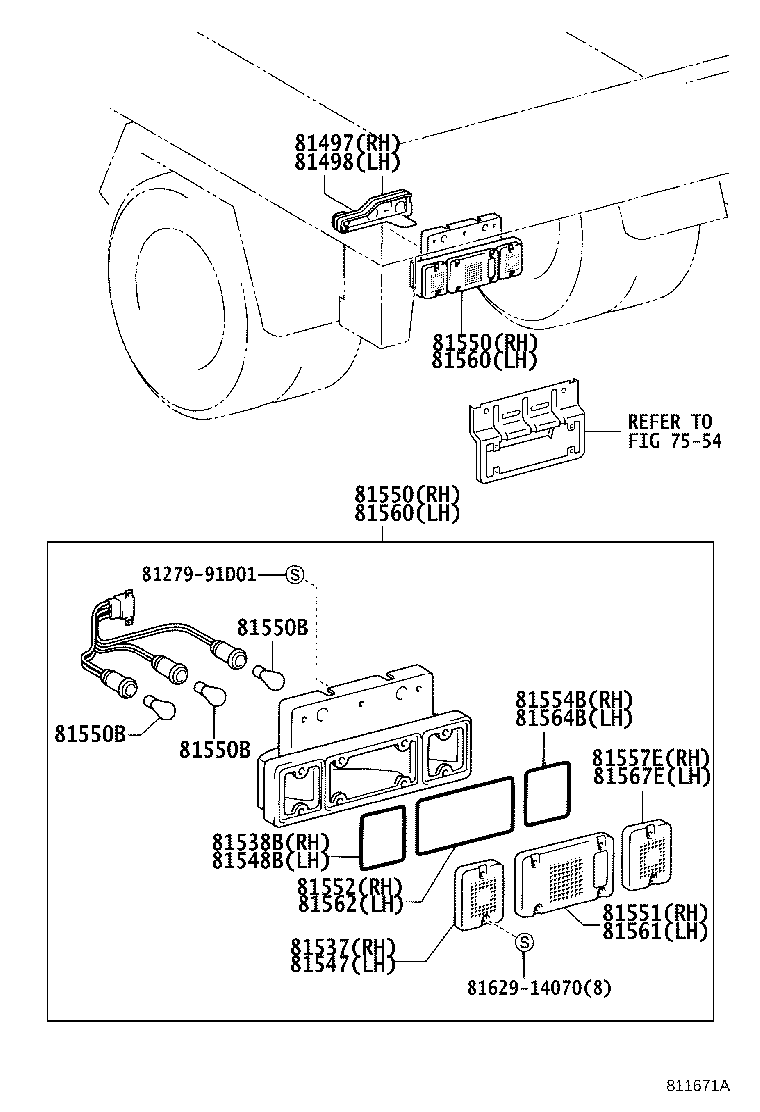

TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-37010 |
WU410,XZU404,41#,422,424,434..(ARL,EUR,GCC,GEN)..IV3 |
1 | ||
| 81497-37011 |
XZU412,422..5F..IV3;WU410,XZU404,414,424,434..(ARL,GCC,GEN)..IV3 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-37010 |
WU410,XZU404,41#,422,424,434..(ARL,EUR,GCC,GEN)..IV3 |
1 | ||
| 81498-37011 |
XZU412,422..5F..IV3;WU410,XZU404,414,424,434..(ARL,GCC,GEN)..IV3 |
1 | ||
| 81537 - LENS, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81537-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81537-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81538-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81538-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81547 - LENS, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81547-37130 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81547-37130 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81538-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81538-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37050 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81550-37120 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81550-37220 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81550-37230 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81550-37220 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81550-37270 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-37120 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 |
1 | ||
| 81551-37120 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81552-95400 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH | ||||
| 81554-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81554-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81557E - LENS, REAR COMBINATION LAMP, RH NO.2 | ||||
| 81557-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81557-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37070 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81560-37130 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560-37220 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81560-37230 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560-37280 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81560-37220 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-37130 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81561-37130 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-95400 |
WU410..GEN;XZU414,424..LHD..GEN;XZU412,422..5F..GEN..IV3;XZU412,422..RHD..CBU..DSL;WU410,XZU412,422..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81552-95400 |
WU410..GEN;XZU412,422..GEN..IV3;XZU414,424..LHD..GEN;XZU412,422..RHD..CBU..DSL;WU410,XZU412,422..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH | ||||
| 81554-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| 81554-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81567E - LENS, REAR COMBINATION LAMP, LH NO.2 | ||||
| 81557-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 |
1 | ||
| 81557-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 |
1 | ||
| Common parts | ||||
| 81559-37180 | ||||
| 81629-14070 | ||||
| 90075-02051 | ||||
(0212-0505)
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37050 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81550-37120 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81550-37220 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81550-37230 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81550-37220 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81550-37270 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-60451 |
WU41#,422,XZU413,423..GCC,GEN |
1 | ||
| 81551-60451 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81552-95400 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37070 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81560-37130 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560-37220 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81560-37230 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560-37280 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81560-37220 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-60381 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU |
1 | ||
| 81561-60381 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU |
1 | ||
| 81561-60381 |
WU41#,422,XZU413,423..GCC,GEN |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-95400 |
WU410..GEN;XZU414,424..LHD..GEN;XZU412,422..5F..GEN..IV3;XZU412,422..RHD..CBU..DSL;WU410,XZU412,422..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81552-95400 |
WU410..GEN;XZU412,422..GEN..IV3;XZU414,424..LHD..GEN;XZU412,422..RHD..CBU..DSL;WU410,XZU412,422..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 81559-95400 | ||||
(0505- )DCRTJ,DCRTK,DSL,TD
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-37050 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81550-37120 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81550-37220 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81550-37230 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81550-37220 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81550-37270 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-16027 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) 24V 25/10W,NO.1 |
2 | ||
| 99134-11250 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU 24V 25W,TYPE B:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 99134-11250 |
WU41#,422,XZU413,423..GCC,GEN 24V 25W,NO.2 |
4 | ||
| 99134-12250 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 24V 25W,TYPE A:REFER TO ILLUSTRATION,NO.2 |
4 | ||
| 90981-16027 |
WU41#,422,XZU413,423..GCC,GEN 24V 25/10W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-60451 |
WU41#,422,XZU413,423..GCC,GEN |
1 | ||
| 81551-60451 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81552-95400 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-37070 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81560-37130 |
XZU412,422..5F..IV3;XZU414,424..LHD..GEN;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560-37220 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81560-37230 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81560-37280 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81560-37220 |
WU41#,422,XZU413,423..(GCC,GEN)..IV3 TYPE B:REFER ILLUST. |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-60381 |
XZU422..CBU;XZU414,424..LHD..GEN;XZU422..5F..GEN..IV3;WU410,XZU412..5F..GEN;WU410,XZU412..GCC..CBU |
1 | ||
| 81561-60381 |
XZU422..CBU;XZU422..GEN..IV3;WU410,XZU412..GEN;XZU414,424..LHD..GEN;WU410,XZU412..GCC..CBU |
1 | ||
| 81561-60381 |
WU41#,422,XZU413,423..GCC,GEN |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-95400 |
WU410..GEN;XZU414,424..LHD..GEN;XZU412,422..5F..GEN..IV3;XZU412,422..RHD..CBU..DSL;WU410,XZU412,422..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;WU410..(GCC,GEN)..IV3;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU412,414,422..LHD..(55T,65T,85T)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 81552-95400 |
WU410..GEN;XZU412,422..GEN..IV3;XZU414,424..LHD..GEN;XZU412,422..RHD..CBU..DSL;WU410,XZU412,422..GCC..CBU TYPE B:REFER ILLUST. |
1 | ||
| 81552-37120 |
XZU424..LHD..GEN;XZU412,422..5F..75T..TD;XZU412,422..RHD..IV3..DSL;XZU412,422..75T..GCC..IV3;XZU41#,422..LHD..(55T,65T,85T)..IV3;BU410,420,WU410..(GCC,GEN,TAIW)..IV3 TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 81559-95400 | ||||
| 90075-02047 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
