WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 73210 73220 73230 73240 73330 73340 9095001126
Part # Description Qty Price
Common parts
90950-01126

(7708- )

Click highlighted areas on diagram

diagram 58490 72911 72911 73150 73163 73164 73210 73220 73230 73240 73350 73360 73370 73380 73390
Part # Description Qty Price

(0010- )

Click highlighted areas on diagram

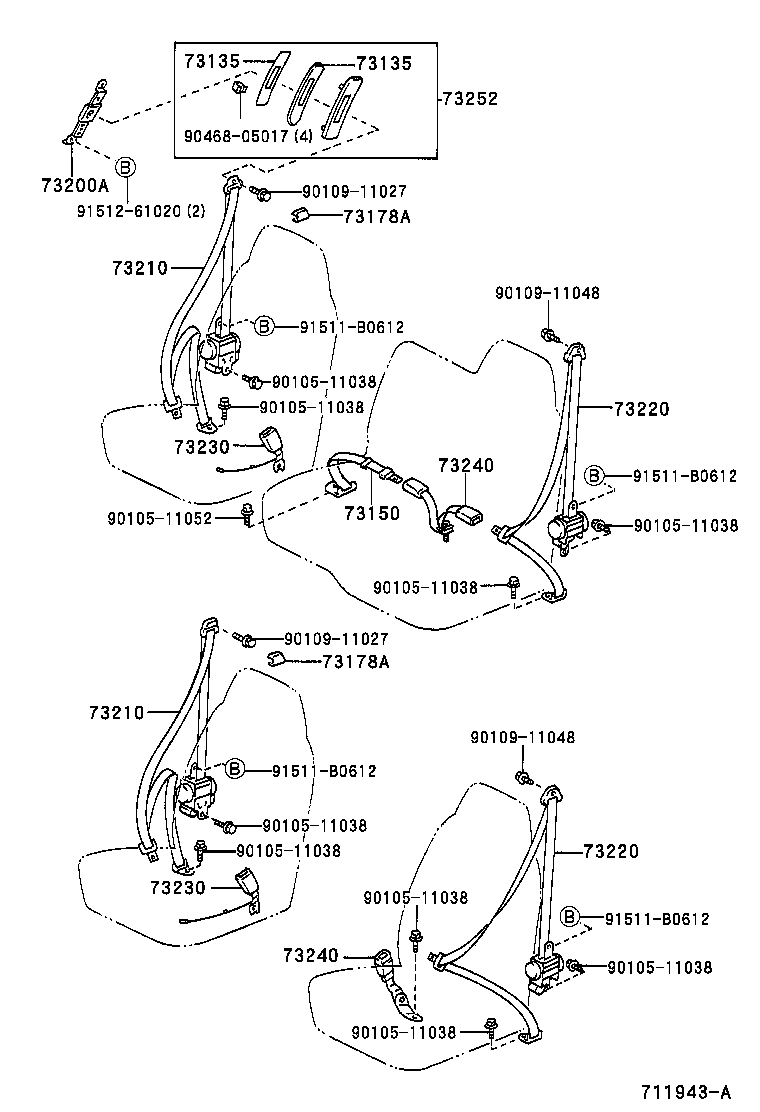

diagram 73135 73135 73150 73178A 73178A 73200A 73210 73210 73220 73220 73230 73230 73240 73240 73252 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010511052 9010911027 9010911027 9010911048 9010911048 9046805017 91511B0612 91511B0612 91511B0612 91511B0612 9151261020
Part # Description Qty Price
Common parts
90105-11038
90105-11052
90109-11027
90109-11048
90468-05017
91511-B0612
91512-61020

(0212- )LHD..GCC,GEN,TAIW

Click highlighted areas on diagram

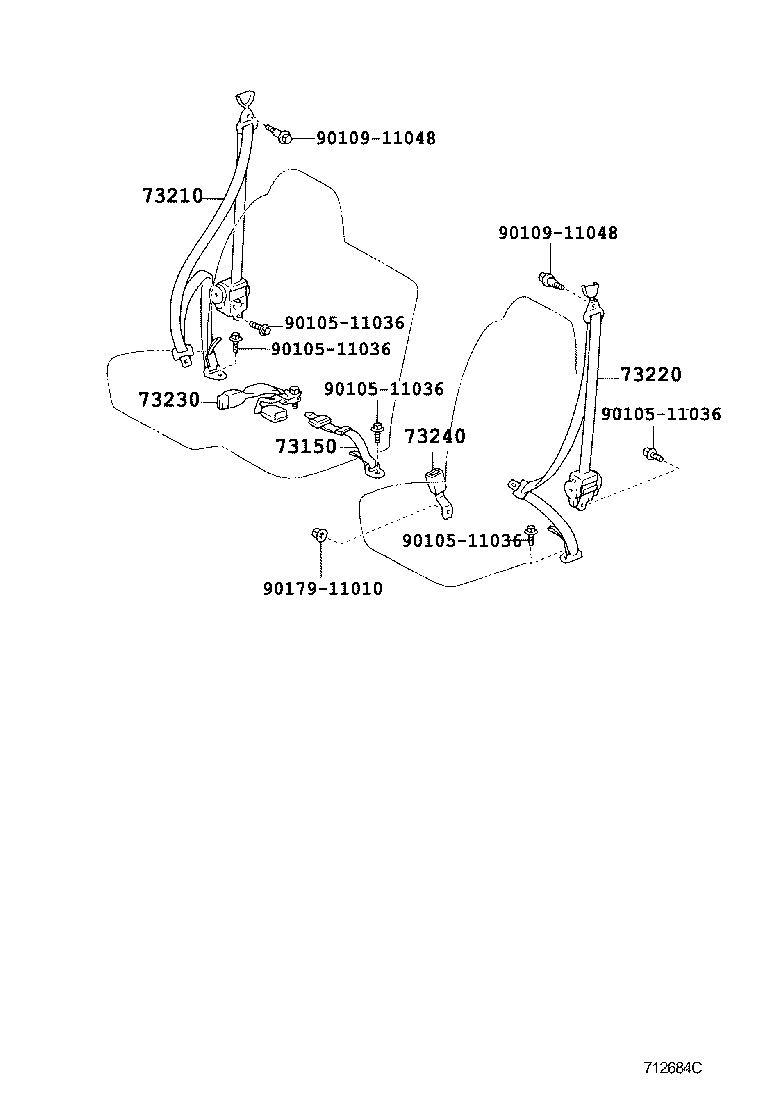

diagram 73150 73210 73220 73230 73240 9010511036 9010511036 9010511036 9010511036 9010511036 9010911048 9010911048 9017911010
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37100B0

WU410,XZU412,414,422,424..LHD..5F..GEN

GRAY,TRIM1#

 1
73150-37100B0

WU410..65T;XZU423..SA;WU410,XZU413,423..5F..(55T,75T)..GEN;WU412,42#,XZU415,417,425,427,433,435..DCRTJ,DCRTK,DSL

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37250B0

WU41#,422,XZU413,415,417,423,425,427,435..(EUR,GCC,GEN,TAIW)..(DCRTJ,DCRTK,DSL)

GRAY,TRIM1#

 1
73210-25060B0

WU41#,422,XZU413,423..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-25061B1

WU41#,422,XZU413,423..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-25061B0

WU41#,422,XZU413,423..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37251B0

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-25060B0

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-37250B0

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

GRAY,TRIM1#

 1
73210-25060B0

WU41#,422,XZU413,423..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-25061B0

WU41#,422,XZU413,423..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37170B0

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

GRAY,TRIM1#

 1
73210-37251B0

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433

GRAY,TRIM1#

 1
73210-25061B1

WU41#,422,XZU413,423..5F..GEN

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

 1
73210-37251B1

WU41#,422,XZU413,423

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37190B0

WU410,XZU412,414,422,424..LHD..GEN

W(CENTER SEAT BELT),GRAY,TRIM1#

 1
73240-37180B0

WU41#,422,XZU413,423..LHD..5F..GEN

W/O(CENTER SEAT BELT),DK.CHARCOAL,TRIM1#

 1
73240-37180B6

WU41#,422,XZU413,423..LHD..5F..GEN

W/O(CENTER SEAT BELT),GRAY,TRIM1#

 1
73240-37180B0

WU410,XZU412,414,422,424..LHD..GEN..IV3

DK.CHARCOAL,TRIM1#

 1
73230-37191B0

WU41#,422,XZU41#,42#,435..LHD

GRAY,TRIM1#

 1
73230-37190B0

WU41#,422,XZU413,415,417,423,425,427,435..LHD..(DCRTJ,DCRTK,DSL)

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37110B0

BU410,420,WU410,XZU412,414,415,422,424,425,434,435..LHD..(EUR,GEN,TAIW)..(DCR,DSL,TD)

DK.CHARCOAL,TRIM1#

 1
Common parts
90105-11036
90109-11048
90179-11010
