WU410L-TKMQS3 (2002)
Toyota Dyna

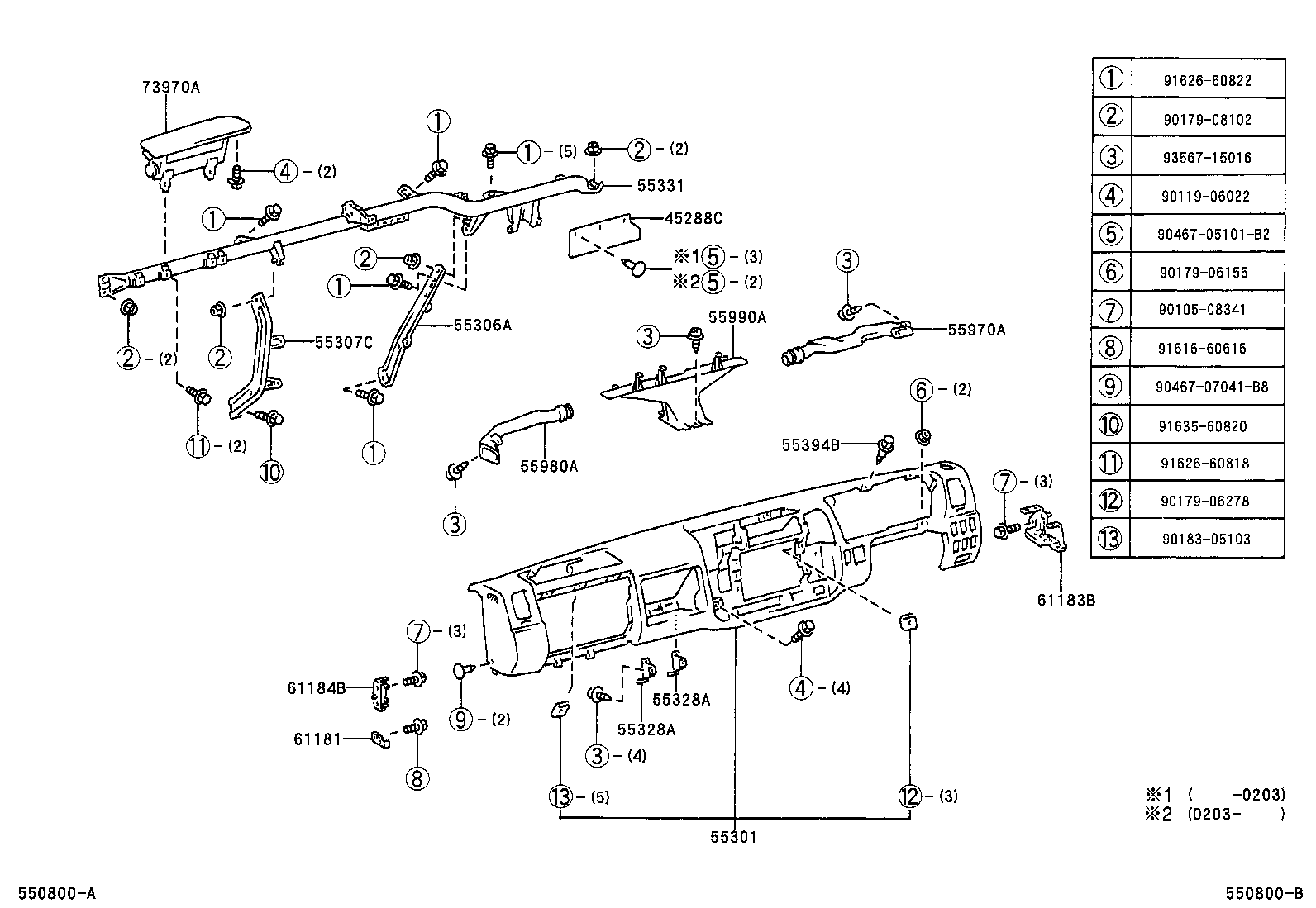

ILLUST NO. 1 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08341 | ||||
| 90119-06022 | ||||
| 90179-06156 | ||||
| 90179-06278 | ||||
| 90179-08102 | ||||
| 90183-05103 | ||||
| 90467-05101B2 | ||||
| 90467-07041B8 | ||||
| 91616-60616 | ||||
| 91626-60818 | ||||
| 91626-60822 | ||||
| 91635-60820 | ||||
| 93567-15016 | ||||

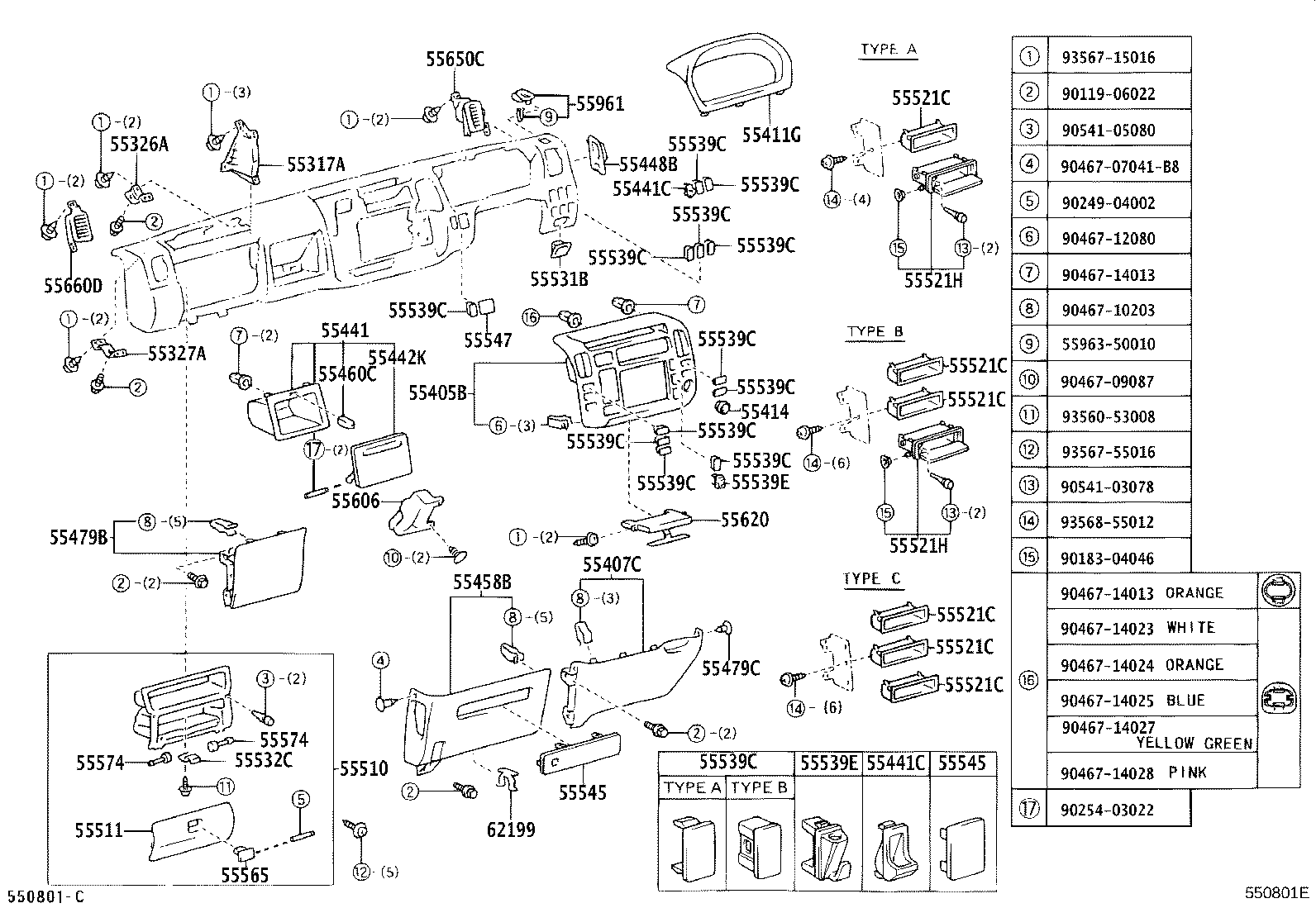

ILLUST NO. 2 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55963-50010 | ||||
| 90119-06022 | ||||
| 90183-04046 | ||||
| 90249-04002 | ||||
| 90254-03022 | ||||
| 90467-07041B8 | ||||
| 90467-09087 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-14013 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 90541-03078 | ||||
| 90541-05080 | ||||
| 93560-53008 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||

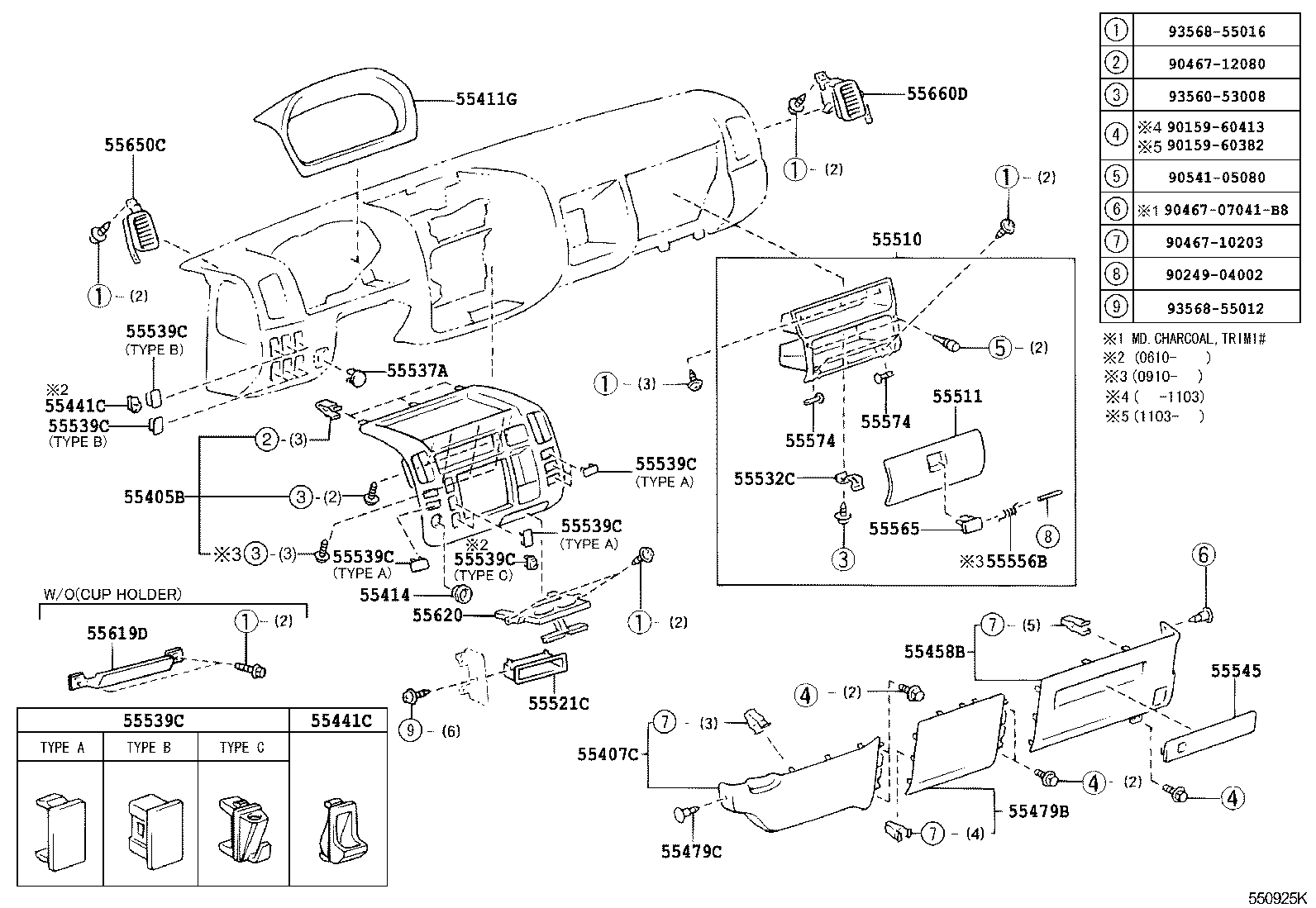

ILLUST NO. 2 OF 2(0110- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-37160 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 55405-37160 |
WU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL) |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55320-37020B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55320-37020B0 |
WU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL) MD.CHARCOAL,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-25030B0 |
WU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL) MD.CHARCOAL,TRIM1# |
1 | ||
| 55411-25030B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-37020 |
BU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-37020B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55458-37020B0 |
WU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL) MD.CHARCOAL,TRIM1# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55340-37020B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B8 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-37010B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55550-37010B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55511-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55511-37020B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL |
1 | ||
| 55521-89102 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 55532C - STOPPER, GLOVE DOOR | ||||
| 55532-37030 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
XZU404,414,424..ARL;XZU412,422..5F..GEN;XZU414,424..LHD..GEN;WU410,XZU434..ARL,GEN TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
XZU404,414,424..ARL;XZU412,422..5F..GEN;XZU414,424..LHD..GEN;WU410,XZU434..ARL,GEN TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
XZU404,414,424..ARL;XZU412,422..5F..GEN;XZU414,424..LHD..GEN;WU410,XZU434..ARL,GEN TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
XZU404,414,424..ARL;XZU412,422..5F..GEN;XZU414,424..LHD..GEN;WU410,XZU434..ARL,GEN TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
XZU404,414,424..ARL;XZU412,422..5F..GEN;XZU414,424..LHD..GEN;WU410,XZU434..ARL,GEN TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
XZU404,414,424..ARL;XZU412,422..5F..GEN;XZU414,424..LHD..GEN;WU410,XZU434..ARL,GEN TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 55539-37020B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55539-37020B0 |
XZU404,414,424..ARL;XZU412,422..5F..GEN;XZU414,424..LHD..GEN;WU410,XZU434..ARL,GEN TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-37010B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55545-37010B0 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL MD.CHARCOAL,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-37030B0 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-38010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 55619D - COVER, CUP HOLDER HOLE | ||||
| 55619-25010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 55619-25010 |
XZU414,424..LHD..GEN;WU410,XZU412,422..GCC,GEN |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-37021 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-37040B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55660D - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55660-37020B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-60382 | ||||
| 90159-60413 | ||||
| 90249-04002 | ||||
| 90467-07041B8 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90541-05080 | ||||
| 93560-53008 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||

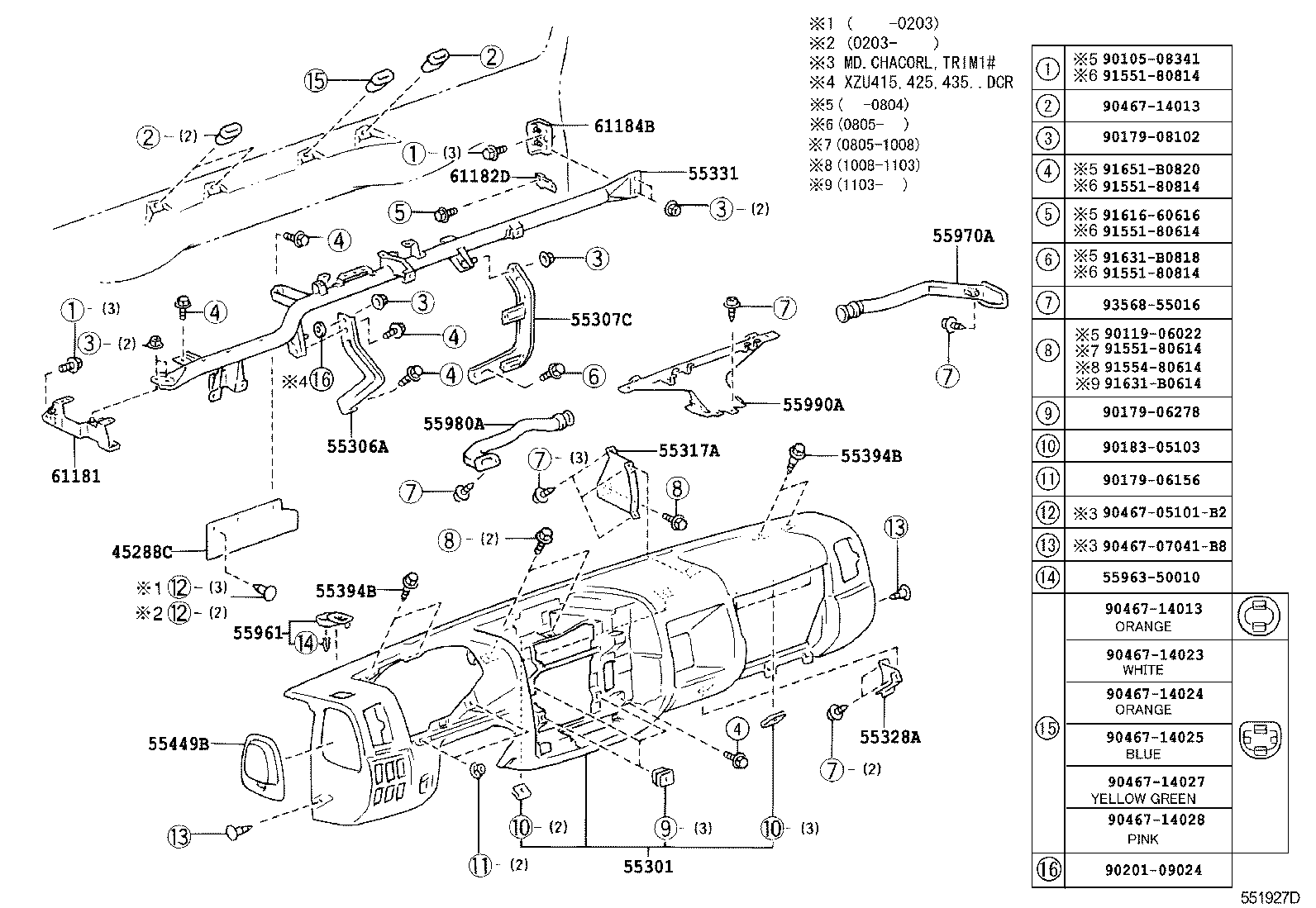

ILLUST NO. 1 OF 2(0110- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45288C - PLATE, STEERING COLUMN COVER | ||||
| 45288-37010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-37070B0 |
WU410,XZU412,414,422,424..LHD..5F MD.CHARCOAL,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-37021 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-37080 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 55307-37080 |
WU41#,422,XZU413,415,417,423,425,427,435..LHD..(DCRTJ,DCRTK,DSL) |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-37020 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-37020 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-37080 |
WU410,XZU412,414,422,424..LHD..5F |
1 | ||
| 55330-37081 |
WU41#,422,XZU413,417,423,427..LHD |
1 | ||
| 55330-37080 |
WU41#,422,XZU413,417,423,427..LHD |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 55449B - COVER, OIL RESERVOIR TANK, LH | ||||
| 55449-37010B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-37040B0 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 55970A - DUCT ASSY, SIDE DEFROSTER, RH | ||||
| 55972-37060 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 55980A - DUCT ASSY, SIDE DEFROSTER, LH | ||||
| 55971-37060 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-37070 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 55707-37020 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 61182D - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-37060 |
WU410,XZU412,414,422,424..LHD..(GCC,GEN) |
1 | ||
| 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH | ||||
| 61184-37010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 55963-50010 | ||||
| 90105-08341 | ||||
| 90119-06022 | ||||
| 90179-06156 | ||||
| 90179-06278 | ||||
| 90179-08102 | ||||
| 90183-05103 | ||||
| 90201-09024 | ||||
| 90467-05101B2 | ||||
| 90467-07041B8 | ||||
| 90467-14013 | ||||
| 90467-14023 | ||||
| 90467-14024 | ||||
| 90467-14025 | ||||
| 90467-14027 | ||||
| 90467-14028 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91554-80614 | ||||
| 91616-60616 | ||||
| 91631-B0614 | ||||
| 91631-B0818 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
