WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

Click highlighted areas on diagram

diagram 52011A 52012A 52111E 52141D 52142C 9011908521 9011908521 9017908123 9017908123 91635G0835 91635G0835
Part # Description Qty Price
Common parts
90119-08521
90179-08123
91635-G0835

(0010- )

Click highlighted areas on diagram

W(FRONT SPOILER)

diagram 52011A 52012A 52111E 52133B 52134B 52141D 52142C 52711 52711 57037C 61415D 61416D 76851C 9011908521 9011908521 9011908812 9017908123 9017908123 9017908123 9056010008 91635G0835 91635G0835 91641C0814 91645H0830 91651B0825
Part # Description Qty Price
Common parts
90119-08521
90119-08812
90179-08123
90560-10008
91635-G0835
91641-C0814
91645-H0830
91651-B0825

(0110- )

Click highlighted areas on diagram

STEEL TYPE

diagram 52111E 52141D 52142C 52543A 52543A 9011908521 9011908521 9017908123 9017908123 9046706046C0 9046706046C0
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-37320

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

RESIN TYPE (LESS COLOR)

 1
52101-37921

BU410,420,WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52111-37320

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

RESIN TYPE (LESS COLOR)

 1
52101-37950

WU41#,422,XZU413,423

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52101-37925

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52101-37920

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52141D - STAY, FRONT BUMPER, RH
52141-37180

BU410,420,WU410,XZU404,41#,422,424,434..ARL,GCC,GEN,TAIW

MARK = RZ

 1
52141-37181

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = RZ

 1
52141-37131

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = R

 1
52141-37181

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

MARK = RZ

 1
52142C - STAY, FRONT BUMPER, LH
52142-37160

BU410,420,WU410,XZU404,41#,422,424,434..ARL,GCC,GEN,TAIW

MARK = LZ

 1
52142-37111

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = L

 1
52142-37161

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = LZ

 1
52142-37161

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

MARK = LZ

 1
Common parts
90119-08521
90179-08123
90467-06046C0

(0212- )

Click highlighted areas on diagram

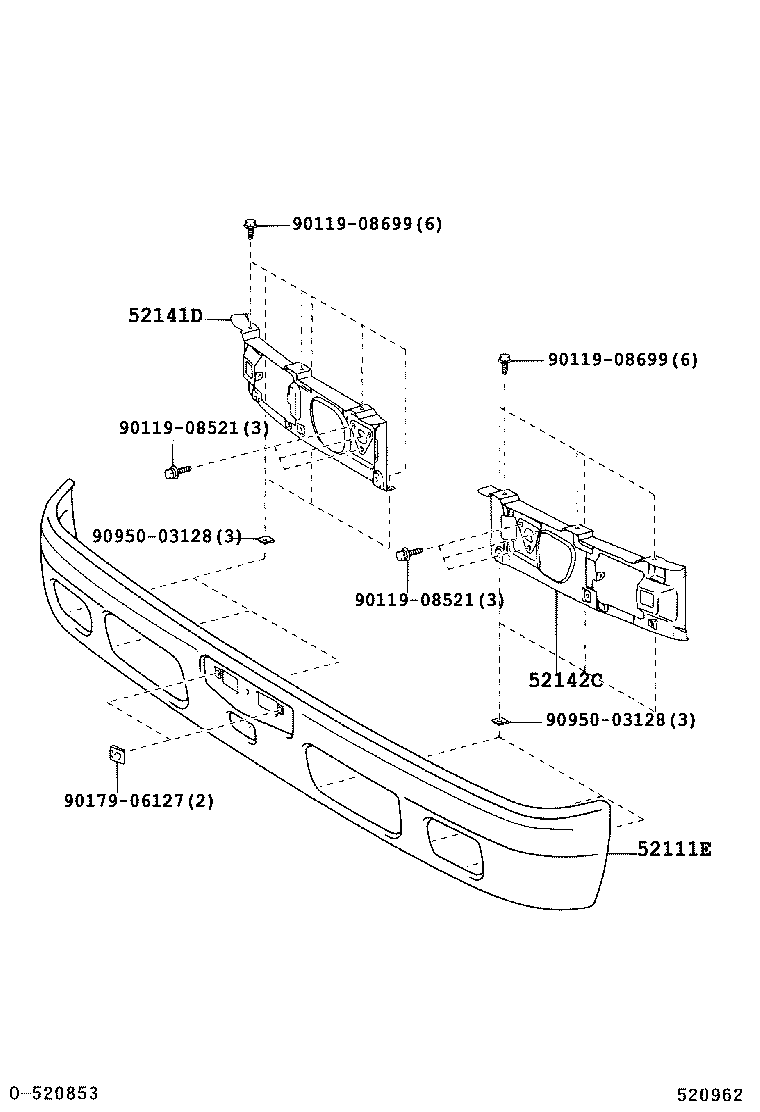

RESIN TYPE

diagram 52111E 52141D 52142C 9011908521 9011908521 9011908699 9011908699 9017906127 9095003128 9095003128
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-37320

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

RESIN TYPE (LESS COLOR)

 1
52101-37921

BU410,420,WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52111-37320

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

RESIN TYPE (LESS COLOR)

 1
52101-37950

WU41#,422,XZU413,423

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52101-37925

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52101-37920

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

STEEL TYPE (DARK GRAY METALLIC PAINTED)

 1
52141D - STAY, FRONT BUMPER, RH
52141-37180

BU410,420,WU410,XZU404,41#,422,424,434..ARL,GCC,GEN,TAIW

MARK = RZ

 1
52141-37181

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = RZ

 1
52141-37131

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = R

 1
52141-37181

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

MARK = RZ

 1
52142C - STAY, FRONT BUMPER, LH
52142-37160

BU410,420,WU410,XZU404,41#,422,424,434..ARL,GCC,GEN,TAIW

MARK = LZ

 1
52142-37111

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = L

 1
52142-37161

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

MARK = LZ

 1
52142-37161

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

MARK = LZ

 1
Common parts
90119-08521
90119-08699
90179-06127
90950-03128
