WU410L-TKMQS3 (2002)
Toyota Dyna
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
ILLUST NO. 1 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90101-10081 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90105-16075 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 91651-60820 | ||||
| 94130-01002 | ||||
| 94184-61001 | ||||

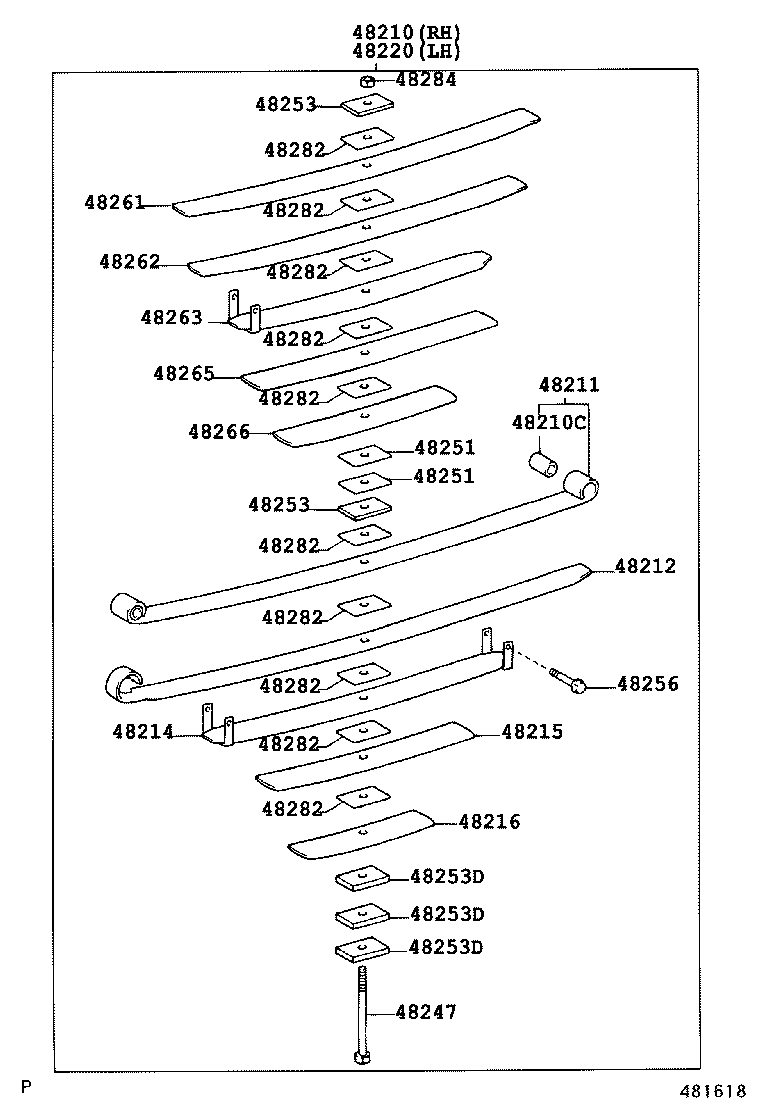

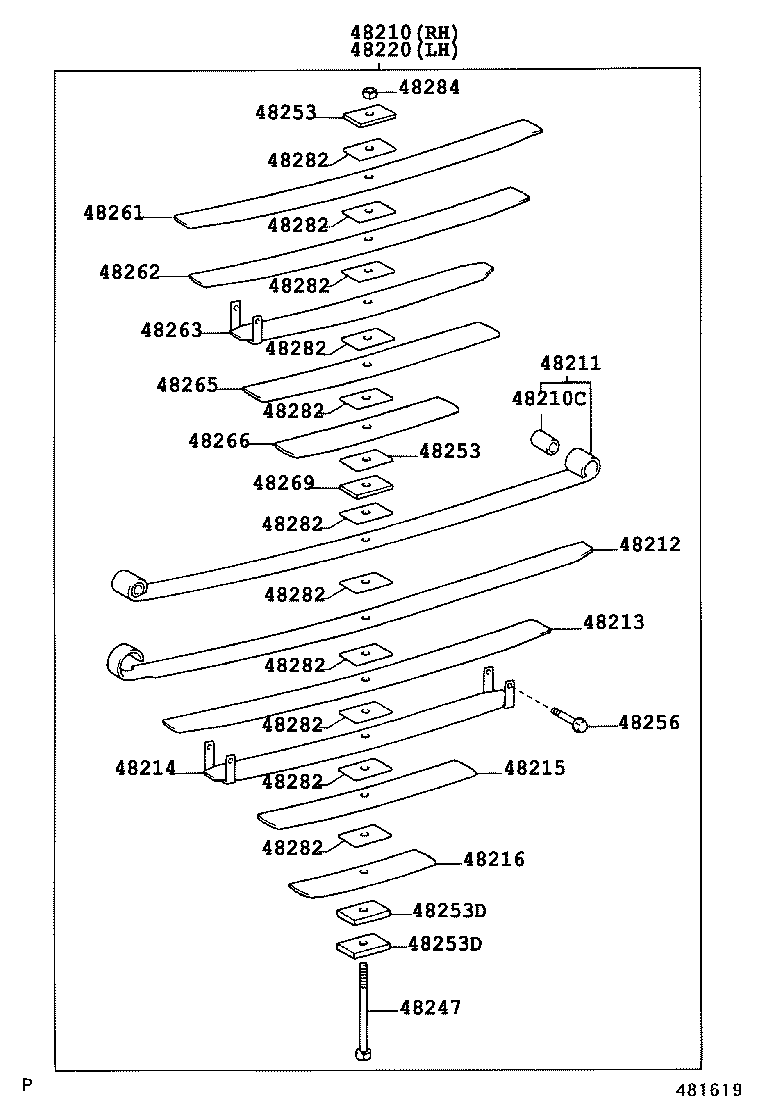

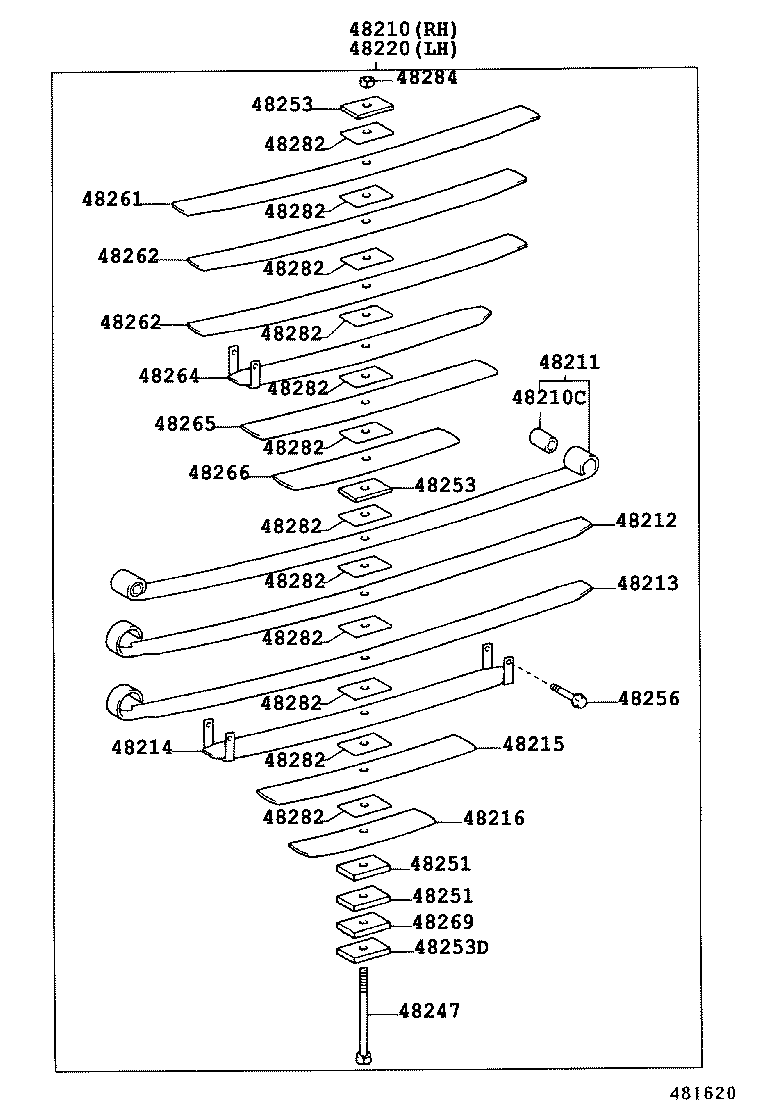

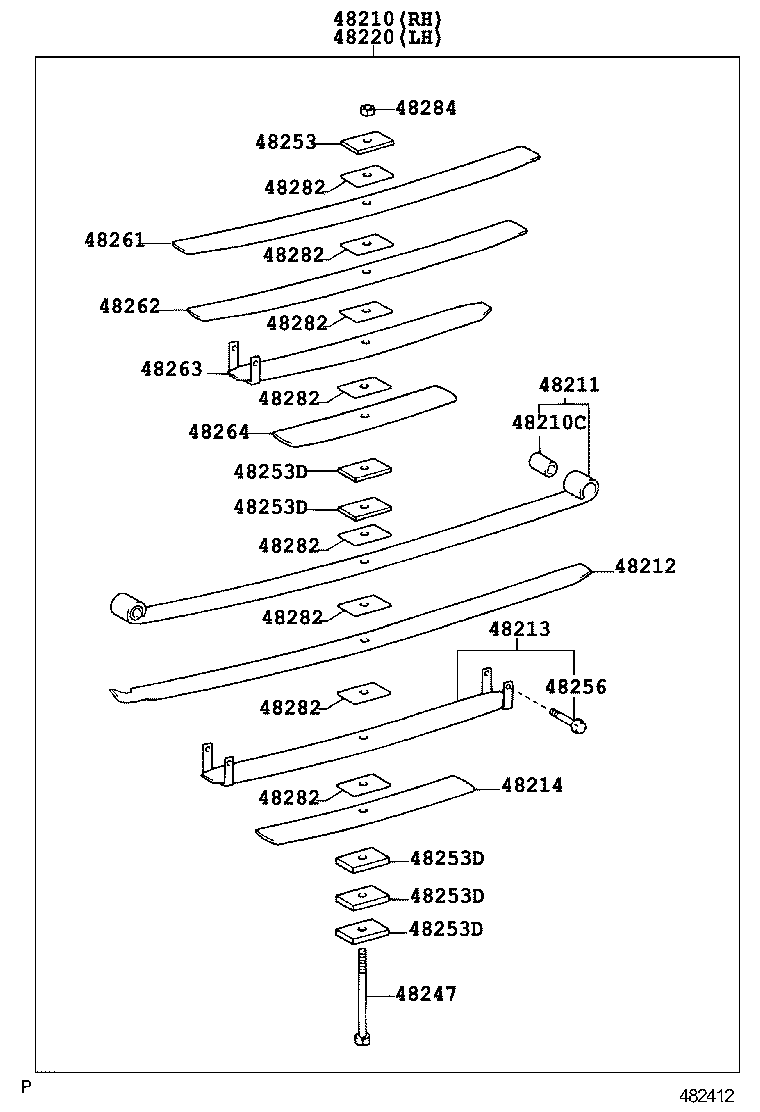

ILLUST NO. 2 OF 2(0110-0801)BU410,420,WU410,XZU404..55T,65T..GCC,GEN,SA,TAIW ; (0701- )XZU417,427
TYPE A:MAIN 5+HELPER 5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48201-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48201-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48201-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48201-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48201-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48212-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48212-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48212-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48214-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48202-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48215-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48215-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48215-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48216-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V460 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48247-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3V460 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
6 | ||
| 48256-3V460 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
6 | ||
| 48256-3V460 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 48256-3V460 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 48256-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
4 | ||
| 48256-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
4 | ||
| 48256-3V461 |
WU41#,422,XZU413,423 |
6 | ||
| 48256-3V461 |
WU41#,422,XZU413,423 |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48261-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48261-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48261-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48261-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48261-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48207-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48207-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48207-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48207-3V620 |
WU41#,422,XZU413,423..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48207-3V620 |
WU41#,422,XZU413,423..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48265-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48265-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48265-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48266-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-0W070 |
WU41#,422,XZU413,423 |
2 | ||
| 48284-0W070 |
WU41#,422,XZU413,423 |
2 | ||
| 48284-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48284-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48284-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48284-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
ILLUST NO. 2 OF 2(0110-0801)WU410..65T ; (0110-0801)WU420,XZU412,422..5F ; (0110-0801)BU410,420,WU41
TYPE B:MAIN 6+HELPER 5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48201-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48201-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48201-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48201-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48201-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48212-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48212-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48212-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48213-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48204-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48204-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48213-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48213-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48214-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48202-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48215-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48215-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48215-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48216-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V460 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48247-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3V460 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
6 | ||
| 48256-3V460 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
6 | ||
| 48256-3V460 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 48256-3V460 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 48256-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
4 | ||
| 48256-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
4 | ||
| 48256-3V461 |
WU41#,422,XZU413,423 |
6 | ||
| 48256-3V461 |
WU41#,422,XZU413,423 |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48261-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48261-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48261-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48261-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48261-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48207-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48207-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48207-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48207-3V620 |
WU41#,422,XZU413,423..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48207-3V620 |
WU41#,422,XZU413,423..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48265-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48265-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48265-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48266-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48269 - LEAF, REAR HELPER SPRING, NO.9 | ||||
| 48269-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48269-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48269-3V150 |
WU41#,422,XZU413..GCC,GEN;WU420,XZU417,423,427,433..75T,85T |
2 | ||
| 48269-3V150 |
WU41#,422,XZU413..GCC,GEN;WU420,XZU417,423,427,433..75T,85T |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-0W070 |
WU41#,422,XZU413,423 |
2 | ||
| 48284-0W070 |
WU41#,422,XZU413,423 |
2 | ||
| 48284-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48284-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48284-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48284-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
ILLUST NO. 2 OF 2(0110-0801)WU410..65T ; (0110-0801)WU420,XZU422..5F ; (0110-0801)XZU412..5F..75T,85
TYPE C:MAIN 6+HELPER 6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48201-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48201-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48201-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48201-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48201-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48212-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48212-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48212-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48213-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48204-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48204-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48213-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48213-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48214-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48202-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48215-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48215-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48215-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48216-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48216-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V460 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48247-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3V460 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
6 | ||
| 48256-3V460 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
6 | ||
| 48256-3V460 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 48256-3V460 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 48256-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
4 | ||
| 48256-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
4 | ||
| 48256-3V461 |
WU41#,422,XZU413,423 |
6 | ||
| 48256-3V461 |
WU41#,422,XZU413,423 |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48261-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48261-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48261-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48261-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48261-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48264-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48265-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48265-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48265-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266-3V630 |
WU420,XZU423,433..75T,85T;WU41#,422,XZU413,417,427..GCC,GEN,TAIW |
2 | ||
| 48266-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48266-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48269 - LEAF, REAR HELPER SPRING, NO.9 | ||||
| 48269-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48269-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48269-3V150 |
WU41#,422,XZU413..GCC,GEN;WU420,XZU417,423,427,433..75T,85T |
2 | ||
| 48269-3V150 |
WU41#,422,XZU413..GCC,GEN;WU420,XZU417,423,427,433..75T,85T |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-0W070 |
WU41#,422,XZU413,423 |
2 | ||
| 48284-0W070 |
WU41#,422,XZU413,423 |
2 | ||
| 48284-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48284-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48284-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48284-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
ILLUST NO. 1 OF 2(0110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37110 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) |
1 | ||
| 48473-37110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,435,439..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17028 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=400 |
4 | ||
| 90031-17028 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427..55T,65T,75T L=400 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90031-17028 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=400 |
4 | ||
| 90031-17028 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427..55T,65T,75T L=400 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37110 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) |
1 | ||
| 48473-37110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,435,439..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
6 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
6 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37140 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433 |
2 | ||
| 48344-37140 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37020 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37090 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37050 |
XZU424..75T,85T;XZU414..75T..GEN;XZU414..LHD..GEN;XZU404,414..ARL,EUR;BU410,420,WU410,420,XZU412,420,422,43# |
1 | ||
| 48505-37051 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37050 |
XZU424..75T,85T;XZU414..75T..GEN;XZU414..LHD..GEN;XZU404,414..ARL,EUR;BU410,420,WU410,420,XZU412,420,422,43# |
1 | ||
| 48505-37051 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37200 |
WU410,XZU404,412,414,422,424..5F..(GCC,GEN) MARK 48531-37200 |
1 | ||
| 48531-37141 |
XZU414,424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,430 MARK 48531-37141 |
1 | ||
| 48531-37200 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 MARK 48531-37200 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU414..75T..GEN;XZU414..LHD..GEN;XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU414..75T..GEN;XZU414..LHD..GEN;XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37200 |
WU410,XZU404,412,414,422,424..5F..(GCC,GEN) MARK 48531-37200 |
1 | ||
| 48531-37141 |
XZU414,424..LHD..GEN;BU410,420,WU410,420,XZU412,420,422,430 MARK 48531-37141 |
1 | ||
| 48531-37200 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 MARK 48531-37200 |
1 | ||
| Common parts | ||||
| 90031-79042 | ||||
| 90032-01143 | ||||
| 90032-04031 | ||||
| 90101-10081 | ||||
| 90105-16021 | ||||
| 90105-16070 | ||||
| 90105-16075 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90201-16035 | ||||
| 91112-81025 | ||||
| 91651-B0820 | ||||
| 91672-L1240 | ||||
| 91672-L1255 | ||||
| 91672-L1495 | ||||
| 94130-01002 | ||||
| 94184-01001 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 2(0610- )WU41#,420,XZU413..55T,65T
MAIN 4+HELPER 4-LEAF 48210-37B60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48201-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48201-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48212-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48212-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48204-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48213-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 48202-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48214-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48202-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-3V620 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) MAIN 6+HELPER 5-LEAF |
1 | ||
| 48210-37B60 |
WU41#,420,XZU413..55T,65T MAIN 4+HELPER 4-LEAF |
1 | ||
| 48210-3V610 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) MAIN 5+HELPER 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V460 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-3V460 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48247-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48215-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48218-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48218-3V280 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
6 | ||
| 48216-37B60 |
WU41#,420,XZU413..55T,65T |
10 | ||
| 48218-3V280 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48218-3V280 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3V460 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
6 | ||
| 48256-3V460 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
6 | ||
| 48256-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
4 | ||
| 48256-3V461 |
WU41#,422,XZU413,423 |
6 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V630 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 48261-3V630 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48261-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48262-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48262-3V630 |
WU420,XZU423..75T;WU41#,422,XZU413,417,427..(55T,65T,75T)..(GCC,GEN,TAIW) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-3V620 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE A OR TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48207-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48207-3V620 |
WU41#,422,XZU413,423..5F..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-37B60 |
WU41#,420,XZU413..55T,65T |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-3V150 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
20 | ||
| 48282-3V150 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-3V150 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
22 | ||
| 48282-37B60 |
WU41#,420,XZU413..55T,65T |
16 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-0W070 |
WU41#,422,XZU413,423 |
2 | ||
| 48284-37B60 |
WU41#,XZU413..(55T,65T)..(GCC,GEN) MAIN 4+HELPER 4-LEAF |
2 | ||
| 48284-3V150 |
XZU413,423..5F;WU41#,422..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
