WU410L-TKMQS3 (2002)
Toyota Dyna
(7708- )BU2#,3#,HU30,JU20,RU2#,30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14003 | ||||
| 90170-16139 | ||||
| 91611-41020 | ||||
| 93220-18030 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94115-41600 | ||||
| 94115-51400 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
(0010- )
| Part # | Description | Qty | Price |
|---|

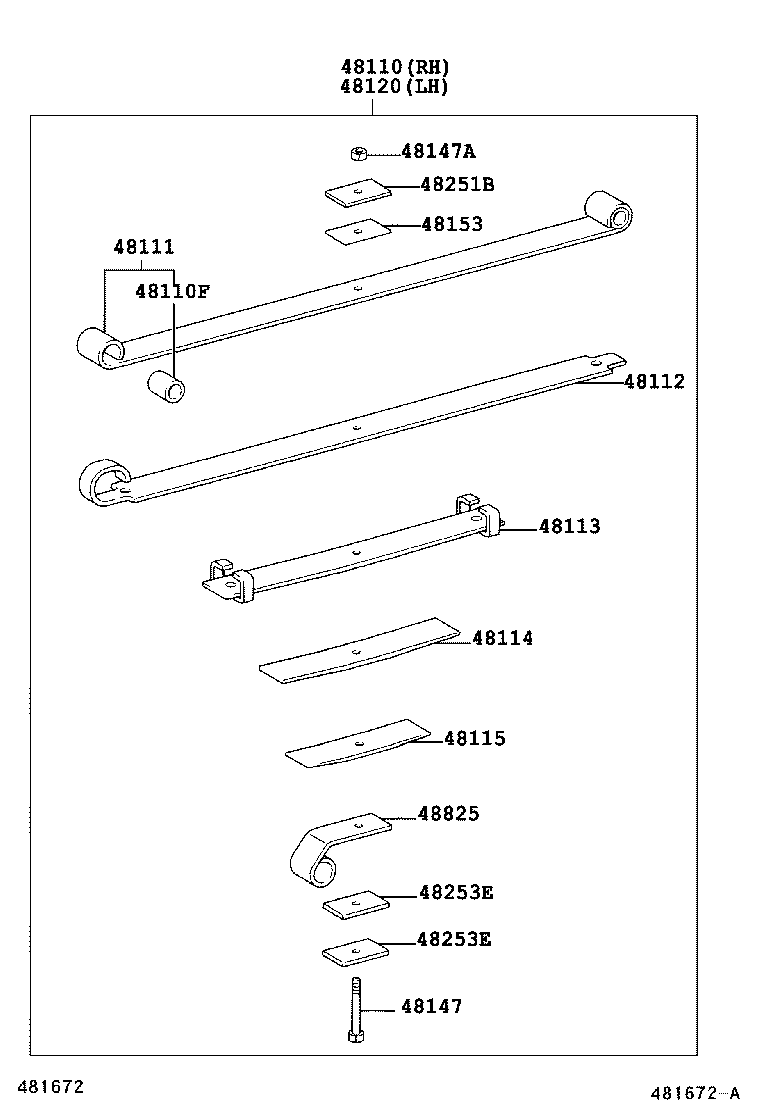

ILLUST NO. 2 OF 2(0212-0610)5F..55T,65T,75T..GCC,GEN ; (0304-)WU420,XZU420 ; (0304- )XZU412,4
6-LEAF 48110-3V640,3V760
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V680 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V680 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V620 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF |
1 | ||
| 48110-3V620 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF |
1 | ||
| 48110-3V700 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V700 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V640 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF |
1 | ||
| 48110-3V640 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF |
1 | ||
| 48110-3V640 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF |
1 | ||
| 48110-3V640 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF |
1 | ||
| 48110-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) 5-LEAF |
1 | ||
| 48110-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) 5-LEAF |
1 | ||
| 48110-3V700 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V700 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V680 |
WU41#,420..65T..(GEN,SA) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V680 |
WU41#,420..65T..(GEN,SA) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V420 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48101-3V420 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48101-3V430 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48101-3V430 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48101-3V430 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48101-3V430 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48101-3V420 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48101-3V420 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V640 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48112-3V640 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48112-3V650 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48112-3V650 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48112-3V640 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48112-3V640 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48112-3V650 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48112-3V650 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3V620 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48102-3V620 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48113-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48113-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48102-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48102-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48113-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48113-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48102-3V630 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) PASSENGER SIDE |
1 | ||
| 48102-3V630 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) PASSENGER SIDE |
1 | ||
| 48113-3V650 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48113-3V650 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48102-3V620 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) DRIVER SIDE |
1 | ||
| 48102-3V620 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) DRIVER SIDE |
1 | ||
| 48113-3V640 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48113-3V640 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3V640 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48102-3V640 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48102-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48102-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48115-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48115-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48102-3V650 |
WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T PASSENGER SIDE |
1 | ||
| 48102-3V650 |
WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T PASSENGER SIDE |
1 | ||
| 48102-3V640 |
WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T DRIVER SIDE |
1 | ||
| 48102-3V640 |
WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T DRIVER SIDE |
1 | ||
| 48115-3V650 |
WU41#,XZU413..(55T,65T)..GEN W(STABILIZER),PASSENGER SIDE |
1 | ||
| 48115-3V650 |
WU41#,XZU413..(55T,65T)..GEN W(STABILIZER),PASSENGER SIDE |
1 | ||
| 48104-37U20 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN W(FRONT STABILIZER),DRIVER SIDE |
1 | ||
| 48104-37U20 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN W(FRONT STABILIZER),DRIVER SIDE |
1 | ||
| 48104-37T00 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN W(FRONT STABILIZER),PASSENGER SIDE |
1 | ||
| 48104-37T00 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN W(FRONT STABILIZER),PASSENGER SIDE |
1 | ||
| 48115-3V640 |
WU41#,XZU413..(55T,65T)..GEN W(STABILIZER),DRIVER SIDE |
1 | ||
| 48115-3V640 |
WU41#,XZU413..(55T,65T)..GEN W(STABILIZER),DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48115-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48115-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48115-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48116-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48116-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48116-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48116-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48116-3V650 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) PASSENGER SIDE |
1 | ||
| 48116-3V650 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) PASSENGER SIDE |
1 | ||
| 48116-3V640 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) DRIVER SIDE |
1 | ||
| 48116-3V640 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) DRIVER SIDE |
1 | ||
| 48115-3V640 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48115-3V640 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48115-3V650 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48115-3V650 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-3V640 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48116-3V640 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48116-3V650 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48116-3V650 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48116-3V650 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48116-3V650 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48116-3V640 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48116-3V640 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V650 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF |
1 | ||
| 48110-3V650 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF |
1 | ||
| 48110-3V690 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V690 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V630 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF |
1 | ||
| 48110-3V630 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF |
1 | ||
| 48110-3V710 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V710 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V650 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF |
1 | ||
| 48110-3V650 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF |
1 | ||
| 48110-3V710 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V710 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V630 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) 5-LEAF |
1 | ||
| 48110-3V630 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) 5-LEAF |
1 | ||
| 48110-3V690 |
WU41#,420..65T..(GEN,SA) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V690 |
WU41#,420..65T..(GEN,SA) 5-LEAF,W(STABILIZER) |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3V660 |
WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T L=100 |
2 | ||
| 48147-3V660 |
WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T L=100 |
2 | ||
| 48147-37870 |
WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN) L=90 |
2 | ||
| 48147-37870 |
WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN) L=90 |
2 | ||
| 48147-37870 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN L=90 |
2 | ||
| 48147-37870 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN L=90 |
2 | ||
| 48147-3V620 |
BU410,420,WU410,420,XZU412..65T L=105 |
2 | ||
| 48147-3V620 |
BU410,420,WU410,420,XZU412..65T L=105 |
2 | ||
| 48147-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) L=105 |
2 | ||
| 48147-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) L=105 |
2 | ||
| 48147-3V660 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T) |
2 | ||
| 48147-3V660 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T) |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48155-3B470 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-0W060 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN PASSENGER SIDE |
1 | ||
| 48284-0W060 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN PASSENGER SIDE |
1 | ||
| 48155-3B470 |
XZU413,423..5F;WU41#,422..GCC,GEN HEAVY DUTY SUSPENSION |
2 | ||
| 48155-3B470 |
XZU413,423..5F;WU41#,422..GCC,GEN HEAVY DUTY SUSPENSION |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37P20 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48152-37P20 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48152-37730 |
WU41#,422..GCC,GEN;XZU413,423..5F..75T HEAVY DUTY SUSPENSION |
2 | ||
| 48152-37730 |
WU41#,422..GCC,GEN;XZU413,423..5F..75T HEAVY DUTY SUSPENSION |
2 | ||
| 48152-37730 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48152-37730 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48152-37730 |
WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48152-37730 |
WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48116-37730 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48116-37730 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48152-0W110 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48152-0W110 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48116-37730 |
WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW) |
2 | ||
| 48116-37730 |
WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW) |
2 | ||
| 48116-37730 |
WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48116-37730 |
WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48116-37780 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48116-37780 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48116-3V620 |
WU410,XZU412..65T..(GCC,GEN) HEAVY DUTY SUSPENSION |
6 | ||
| 48116-3V620 |
WU410,XZU412..65T..(GCC,GEN) HEAVY DUTY SUSPENSION |
6 | ||
| 48116-37780 |
WU41#..65T..(GCC,GEN) HEAVY DUTY SUSPENSION |
2 | ||
| 48116-37780 |
WU41#..65T..(GCC,GEN) HEAVY DUTY SUSPENSION |
2 | ||
| 48116-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) |
6 | ||
| 48116-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) |
6 | ||
ILLUST NO. 2 OF 2(0212-0801)WU410,420,XZU412..65T ; (0610- )65T..GEN,SA
6-LEAF,W(STABILIZER) 48110-3V680
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V680 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V620 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF |
1 | ||
| 48110-3V700 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V640 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF |
1 | ||
| 48110-3V640 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF |
1 | ||
| 48110-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) 5-LEAF |
1 | ||
| 48110-3V700 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V680 |
WU41#,420..65T..(GEN,SA) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90033-84013 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V420 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48101-3V430 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48101-3V430 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48101-3V420 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V640 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48112-3V650 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48112-3V640 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48112-3V650 |
WU412,422;WU410,XZU413,423..5F..(65T,75T)..GEN HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3V620 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48113-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48102-3V630 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48113-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48102-3V630 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) PASSENGER SIDE |
1 | ||
| 48113-3V650 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48102-3V620 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) DRIVER SIDE |
1 | ||
| 48113-3V640 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3V640 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48102-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48115-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48102-3V650 |
WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T PASSENGER SIDE |
1 | ||
| 48102-3V640 |
WU420..75T;WU410,XZU413..GEN;WU412,422,XZU423..65T,75T DRIVER SIDE |
1 | ||
| 48115-3V650 |
WU41#,XZU413..(55T,65T)..GEN W(STABILIZER),PASSENGER SIDE |
1 | ||
| 48104-37U20 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN W(FRONT STABILIZER),DRIVER SIDE |
1 | ||
| 48104-37T00 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN W(FRONT STABILIZER),PASSENGER SIDE |
1 | ||
| 48115-3V640 |
WU41#,XZU413..(55T,65T)..GEN W(STABILIZER),DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48115-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48116-3V640 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) DRIVER SIDE |
1 | ||
| 48116-3V650 |
XZU414..LHD..GEN;WU410,XZU412..(55T,65T)..(GCC,GEN) PASSENGER SIDE |
1 | ||
| 48116-3V650 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) PASSENGER SIDE |
1 | ||
| 48116-3V640 |
WU41#,420,XZU413,417,427..(55T,65T)..(GEN,SA,TAIW) DRIVER SIDE |
1 | ||
| 48115-3V640 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,DRIVER SIDE |
1 | ||
| 48115-3V650 |
WU41#,422,XZU413,423..5F..(GCC,GEN) HEAVY DUTY SUSPENSION,PASSENGER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V650 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF |
1 | ||
| 48110-3V690 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V630 |
WU410,XZU412..65T..(GCC,GEN) 5-LEAF |
1 | ||
| 48110-3V710 |
XZU424..LHD..75T..GEN;WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V650 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF |
1 | ||
| 48110-3V710 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN 6-LEAF,W(STABILIZER) |
1 | ||
| 48110-3V630 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) 5-LEAF |
1 | ||
| 48110-3V690 |
WU41#,420..65T..(GEN,SA) 5-LEAF,W(STABILIZER) |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3V660 |
WU410,420..65T;WU410..75T..GEN;XZU424..LHD..GEN;XZU412..65T,75T,85T;BU410,420,XZU422,430..75T,85T L=100 |
2 | ||
| 48147-37870 |
WU410..75T..SA;WU420,XZU420,422..75T;XZU424..LHD..75T..GEN;WU410,XZU412..(65T,75T)..(GCC,GEN) L=90 |
2 | ||
| 48147-37870 |
WU420..75T;WU412,422,XZU423..65T,75T;WU410,XZU413..(65T,75T)..GEN L=90 |
2 | ||
| 48147-3V620 |
BU410,420,WU410,420,XZU412..65T L=105 |
2 | ||
| 48147-3V620 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) L=105 |
2 | ||
| 48147-3V660 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,423..LHD..(65T,75T,85T) |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48284-0W060 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN PASSENGER SIDE |
1 | ||
| 48155-3B470 |
XZU413,423..5F;WU41#,422..GCC,GEN HEAVY DUTY SUSPENSION |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37P20 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48152-37730 |
WU41#,422..GCC,GEN;XZU413,423..5F..75T HEAVY DUTY SUSPENSION |
2 | ||
| 48152-37730 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48152-37730 |
WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48116-37730 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
2 | ||
| 48152-0W110 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48116-37730 |
WU410..75T..GEN;WU412,42#,XZU413,423,433;WU410,XZU417,427..65T..(GEN,SA,TAIW) |
2 | ||
| 48116-37730 |
WU412,422,XZU423,433;WU420,XZU417,427..75T,85T;WU410,XZU413..(65T,75T)..GEN DRIVER SIDE |
1 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
WU410,XZU412..65T..(GCC,GEN) |
4 | ||
| 48117-37730 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48117-37730 |
WU410,XZU412..65T..(GCC,GEN) |
4 | ||
| 48117-37730 |
WU41#,420,XZU417,427..65T..(GEN,SA,TAIW) |
4 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
ILLUST NO. 1 OF 2(0110-0801)WU410..65T ; (0110-0801)XZU412,422..5F ; (0110-0801)XZU414..6F..ARL ; (0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48304-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48304-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48323 - PIN, FRONT SPRING BRACKET, FRONT | ||||
| 48323-37020 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323-37020 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323-37020 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323A - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN) | ||||
| 90034-08004 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 90034-08004 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 90034-08004 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323B - PIN, FRONT SPRING BRACKET, REAR | ||||
| 48323-37030 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48323-37030 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48323-37030 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48323C - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN) | ||||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48442A - SHACKLE, FRONT SPRING, RH | ||||
| 48442-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442B - SHACKLE, FRONT SPRING, LH | ||||
| 48442-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48443A - PLATE, FORNT SPRING SHACKLE, OUTER | ||||
| 48443-37010 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48443-37010 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48443-37010 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-37060 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 48475-37060 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 48475-37060 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 48475-37060 |
WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW HEAVY DUTY SUSPENSION |
1 | ||
| 48475-37060 |
WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW HEAVY DUTY SUSPENSION |
1 | ||
| 48475-37060 |
WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW HEAVY DUTY SUSPENSION |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 90948-02017 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 90948-02017 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48514-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48514-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48515-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48515-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37040 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48802-37040 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48802-37040 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809 - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809-37020 |
WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
2 | ||
| 48809-37020 |
WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
2 | ||
| 48809-37020 |
WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48811-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48811-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48819-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48819-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48824-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48824-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-37050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48836-37050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48836-37050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48837-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48837-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01144 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90032-15012 | ||||
| 90101-12074 | ||||
| 90178-16004 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||
ILLUST NO. 1 OF 2(0610- )WU410..65T ; (0610- )WU410..75T..GEN ; (0610- )WU412,42#,XZU413,41
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48191-37070 |
WU410,420,XZU41#,42#,43#..65T,75T,85T |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48304-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48304-37080 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 48323 - PIN, FRONT SPRING BRACKET, FRONT | ||||
| 48323-37020 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323-37020 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323-37020 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323A - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN) | ||||
| 90034-08004 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 90034-08004 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 90034-08004 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48323B - PIN, FRONT SPRING BRACKET, REAR | ||||
| 48323-37030 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48323-37030 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48323-37030 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48323C - NIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN) | ||||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 90034-08006 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
4 | ||
| 48442A - SHACKLE, FRONT SPRING, RH | ||||
| 48442-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37040 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442B - SHACKLE, FRONT SPRING, LH | ||||
| 48442-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48442-37050 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
1 | ||
| 48443A - PLATE, FORNT SPRING SHACKLE, OUTER | ||||
| 48443-37010 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48443-37010 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48443-37010 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-37060 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 48475-37060 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 48475-37060 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 48475-37060 |
WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW HEAVY DUTY SUSPENSION |
1 | ||
| 48475-37060 |
WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW HEAVY DUTY SUSPENSION |
1 | ||
| 48475-37060 |
WU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW HEAVY DUTY SUSPENSION |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
XZU414,424..LHD..(55T,75T)..GEN;WU410,XZU412,422..5F..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16065 |
XZU404,414,434..ARL;XZU424..(75T,85T)..(ARL,GEN);WU410,XZU412,414,422..5F..(65T,75T,85T)..(GCC,GEN) L=150 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16075 |
XZU424..LHD..GEN;XZU404,414..55T..ARL;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) L=170 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16082 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=140 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16073 |
WU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN) L=160 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 90117-16075 |
WU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,417,423,427..LHD..(65T,75T,85T) L=170 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-01031 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 90948-02017 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 90948-02017 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-03018 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48514-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48514-37020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48515-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48515-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80115 |
BU410,420,WU410,420,XZU404,41#,42#,43# MARK 48511-37161 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-80095 |
XZU414,420,424,43#;WU410,420,XZU404,412,422..5F MARK 48511-37160 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48511-89215 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) MARK 48511-37260 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90385-19011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37040 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48802-37040 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48802-37040 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809 - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48809-37020 |
WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
2 | ||
| 48809-37020 |
WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
2 | ||
| 48809-37020 |
WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48811-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48811-37070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37080 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
2 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48815-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817-36011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02015 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 90948-02167 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48819-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48819-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48824-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48824-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-37050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48836-37050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48836-37050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48837-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 48837-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01144 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90032-15012 | ||||
| 90101-12074 | ||||
| 90178-16004 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
