WU410L-TKMQS3 (2002)
Toyota Dyna
(0212- )BU410,420,WU410,XZU413,423..65T,75T..GEN,TAIW

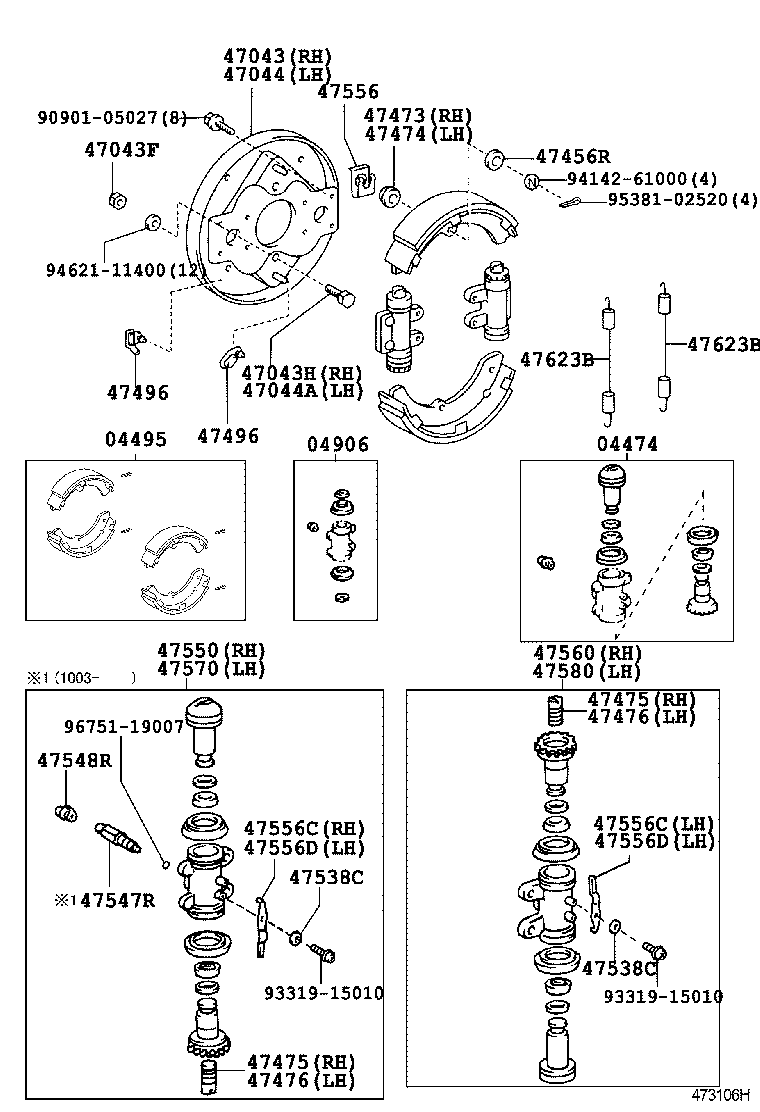

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-37170 |
BU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN) RH |
2 | ||
| 04474-37170 |
BU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN) RH |
2 | ||
| 04474-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN LH |
1 | ||
| 04474-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN LH |
1 | ||
| 04474-37180 |
BU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN) LH |
2 | ||
| 04474-37180 |
BU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN) LH |
2 | ||
| 04474-37170 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN RH |
1 | ||
| 04474-37170 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN RH |
1 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-37032 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) MARK NBK D2177 |
1 | ||
| 04495-37032 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) MARK NBK D2177 |
1 | ||
| 04495-37032 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN MARK NBK D2177 |
1 | ||
| 04495-37032 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN MARK NBK D2177 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-37210 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 04906-37210 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 04906-37090 |
BU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN) |
1 | ||
| 04906-37090 |
BU410,420..65T;XZU424..LHD..75T..GEN;WU410,XZU412,422..(65T,75T)..(GCC,GEN) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-37101 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47043-37101 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47043-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47043-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01441 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 94130-01441 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 94130-01441 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 94130-01441 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90101-14032 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 90101-14032 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 90101-14032 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 90101-14032 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37101 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47044-37101 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47044-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47044-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90101-14032 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 90101-14032 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 90101-14032 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 90101-14032 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 47456-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47473-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47473-37020 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
2 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37090 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
8 | ||
| 47491-37090 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T NO.1 |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T NO.1 |
8 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37090 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
8 | ||
| 47491-37090 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T NO.1 |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T NO.1 |
8 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-37130 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47547-37130 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 31478-30010 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 31478-30010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
2 | ||
| 31478-30010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37140 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47550-37140 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47550-37141 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47550-37141 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47550-37140 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47550-37140 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47556-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 47556-37010 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47555-37070 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37040 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47560-37040 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47560-37040 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47560-37040 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47560-37041 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47560-37041 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37100 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47570-37100 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47570-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47570-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47570-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47570-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47580-37030 |
BU410,420,XZU424..LHD..(75T,85T)..(GEN,TAIW);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47580-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47580-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47580-37031 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47580-37031 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90905-07017 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 90905-07017 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 90905-07017 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 90905-07017 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90905-07017 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 90905-07017 |
XZU414..RHD..(65T,75T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN);BU410,420,XZU424,434..(75T,85T)..(ARL,GEN,TAIW) |
4 | ||
| 90905-07017 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 90905-07017 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| Common parts | ||||
| 90901-05027 | ||||
| 93319-15010 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| 96751-19007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
