WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

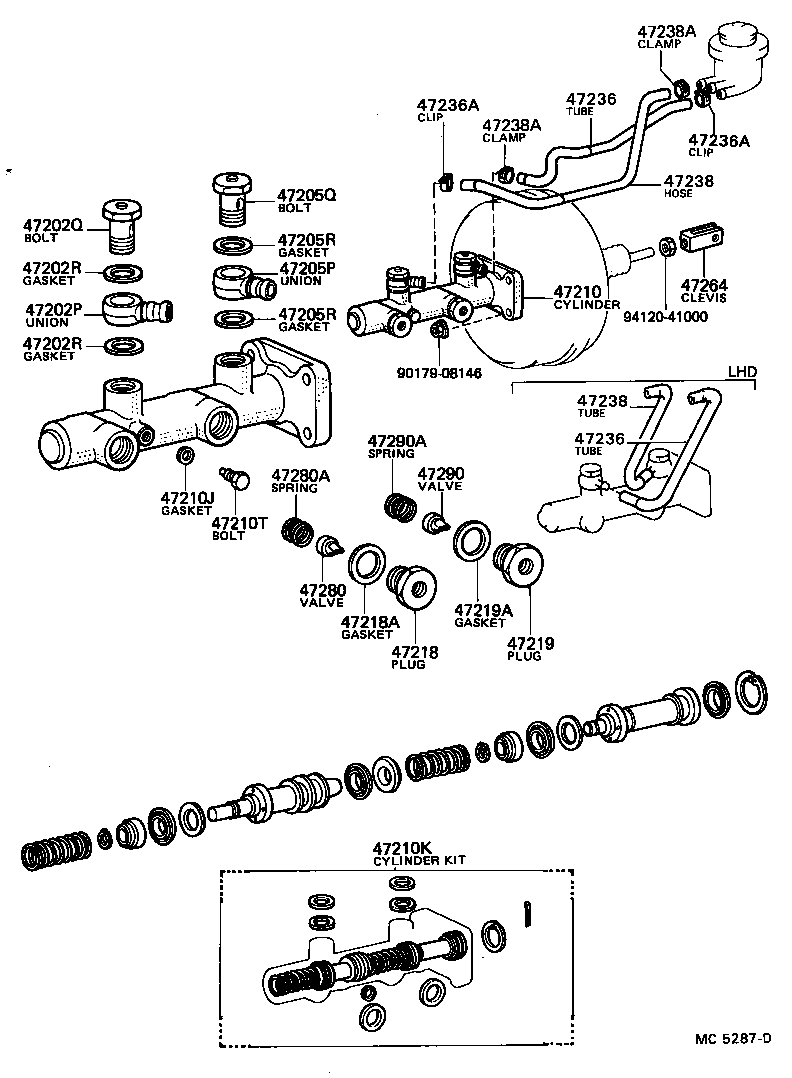

Click highlighted areas on diagram

diagram 47202P 47202Q 47202R 47202R 47205P 47205Q 47205R 47205R 47210 47210J 47210K 47210T 47218 47218A 47219 47219A 47236 47236 47236A 47236A 47238 47238 47238A 47238A 47264 47280 47280A 47290 47290A 9017908146 9412041000
Part # Description Qty Price
Common parts
90179-08146
94120-41000

(0010- )

Click highlighted areas on diagram

diagram 47201B 47202 47207 47218 47218 47218A 47218A 47230 47234B 47235B 47237A 47239 47255 47255 47281 47281 47281A 47281A 47282A 47282A 47299 55109A 89637D 9046716002 9046716002 9046716002 9046716002 9056116009 9151160614 9162660818
Part # Description Qty Price
Common parts
90467-16002
90561-16009
91511-60614
91626-60818

(0110- )LHD

Click highlighted areas on diagram

diagram 04493 47201B 47202 47207 47218 47218 47218A 47218A 47230 47234B 47235B 47237A 47239 47255 47255 47281 47281 47281A 47281A 47282A 47282B 47299 55109A 89637D 9017908204 9056116009 91511B0614 91621J0814 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-36210

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 1
04493-36210

WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-37071

WU410,XZU412,414,422,424..LHD..5F

 1
47220-37071

WU41#,422,XZU413,423..LHD

 1
47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47207-37020

XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)

 1
47207-37020

WU41#,422,XZU413,423..GCC,GEN

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-36091

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-36091

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-16013

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-16013

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-37020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
47230-37020

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 1
47234B - TUBE, RESERVOIR, NO.1
47234-37120

WU410,XZU412,414,422,424..LHD..5F

 1
47234-37120

WU41#,422,XZU413,423..LHD

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-37110

WU410,XZU412,414,422,424..LHD..5F

 1
47235-37110

WU41#,422,XZU413,423..LHD

 1
47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK
47237-36020

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR
47239-37020

WU410,XZU412,414,422,424..LHD..5F

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-52010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-52010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK
47281-36010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47281-36010

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 2
47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK
47281-36010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
47281-36010

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 2
47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE)
90905-01054

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
90905-01054

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 2
47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE)
90905-01054

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
90905-01054

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 2
47282A - SEAT, OUTLET CHECK VALVE, NO.1
47282-36010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
47282-36010

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 1
47282B - SEAT, OUTLET CHECK VALVE, NO.2
47282-36010

XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)

 1
47282-36010

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433

 1
47299-28010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
55109A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55109-37010

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
55109-37010

WU41#,422,XZU413,415,417,423,425,427,435..(EUR,GCC,GEN,TAIW)..(DCRTJ,DCRTK,DSL)

 1
Common parts
90179-08204
90561-16009
91511-B0614
91621-J0814
96133-41500
