WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

Click highlighted areas on diagram

diagram 04446 44033 44302 44302B 44302B 44302G 44302H 44304 44305 44310C 44310D 44312 44312A 44312B 44316 44320 44324B 44326A 44328C 44330 44330A 44335A 44337 44338A 44342 44360 44363 9002911402 9002911402 9003105008 9011910901
Part # Description Qty Price
Common parts
90029-11402
90031-05008
90119-10901

(0212-0610)WU410,420 ; (0610-0801)WU410,420..SA; (0801- )WU410..75T..SA

Click highlighted areas on diagram

diagram 44305 44310C 44320 44337 44337C 44360 44363 9003105122 9011910295 91611G0612
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37020

WU41#,422,XZU413,415,417,423,425,427,435..(EUR,GCC,GEN,TAIW)..(DCRTJ,DCRTK,DSL)

 1
44305-12030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44320 - PUMP ASSY, VANE
44310-37160

WU410..GCC,GEN

 1
44310-37160

WU420;WU410..65T;WU410..75T..GEN

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37080

XZU404,41#,42#,43#

 1
44337-37140

WU410..GCC,GEN

 1
44337-37350

WU420;WU410..65T;WU410..75T..GEN

 1
44337C - RING, O(FOR SUSPENSION CONTROL SUCTION PORT UNION)
96711-19022

WU410..GCC,GEN

 1
96711-19022

WU420;WU410..65T;WU410..75T..GEN

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37140

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-37130

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90031-05122
90119-10295
91611-G0612

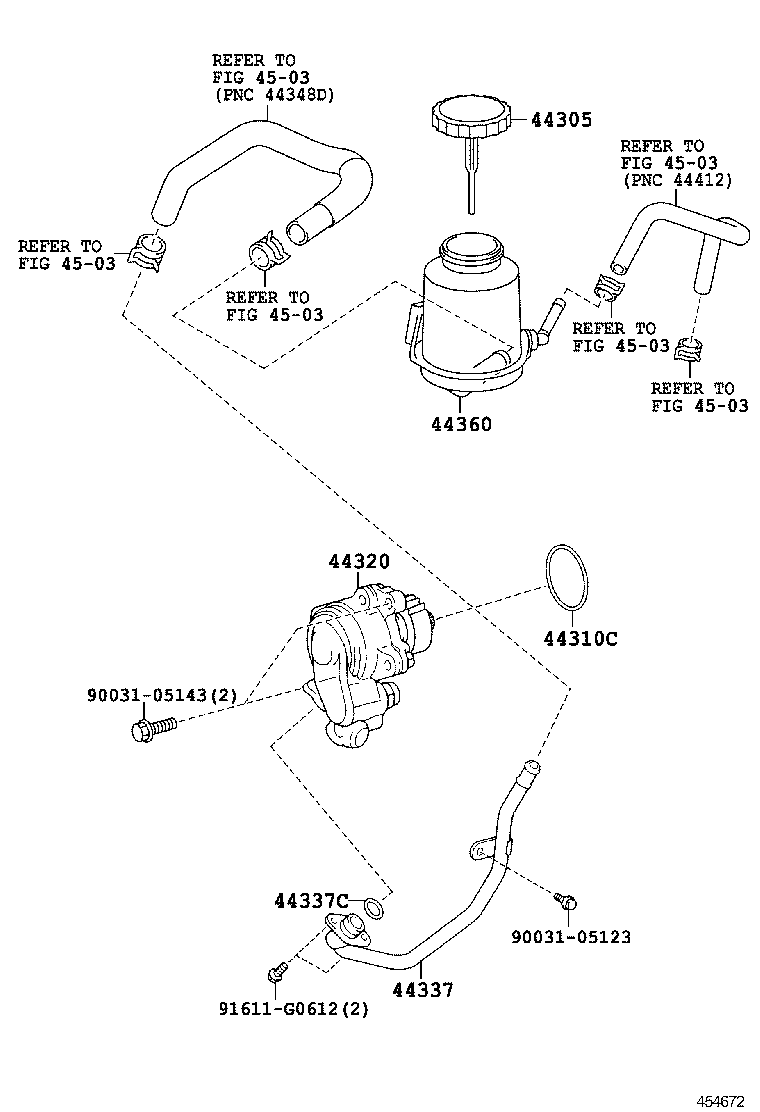

(0610- )WU410..GCC,GEN ; (0801- )WU420 ; (0801- )WU410..65T..SA

Click highlighted areas on diagram

diagram 44305 44310C 44320 44337 44337C 44360 4503 4503 4503 4503 4503 4503 9003105123 9003105143 91611G0612
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37020

WU41#,422,XZU413,415,417,423,425,427,435..(EUR,GCC,GEN,TAIW)..(DCRTJ,DCRTK,DSL)

 1
44305-12030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44320 - PUMP ASSY, VANE
44310-37160

WU410..GCC,GEN

 1
44310-37160

WU420;WU410..65T;WU410..75T..GEN

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37080

XZU404,41#,42#,43#

 1
44337-37140

WU410..GCC,GEN

 1
44337-37350

WU420;WU410..65T;WU410..75T..GEN

 1
44337C - RING, O(FOR SUSPENSION CONTROL SUCTION PORT UNION)
96711-19022

WU410..GCC,GEN

 1
96711-19022

WU420;WU410..65T;WU410..75T..GEN

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37140

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90031-05123
90031-05143
91611-G0612
Linked diagrams
4503
