WU410L-TKMQS3 (2002)
Toyota Dyna
ILLUST NO. 2 OF 2(0010- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||

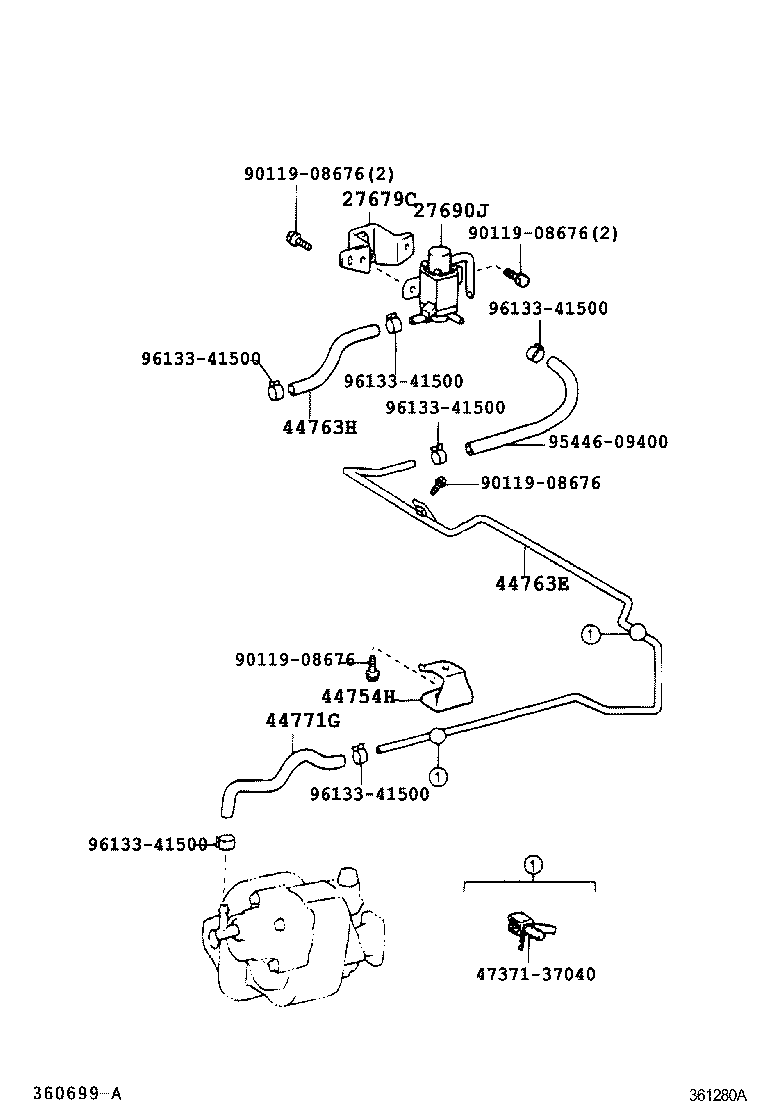

ILLUST NO. 2 OF 2(0110-0701)BU410,420,WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN,TAIW ; (0212-
VACUUM TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78140 |
W04D..WU410..65T;W04D..WU412,42#..5F;W04D..WU410..75T..GEN |
1 | ||
| 27679-78140 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78140 |
W04D..WU410..65T;W04D..WU412,42#..5F;W04D..WU410..75T..GEN |
1 | ||
| 27679-78140 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78032 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 27690-78080 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423..5F |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78032 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 27690-78080 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423..5F |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 44754-37110 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37350 |
BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 44763-37790 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN |
1 | ||
| 44763F - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-37250 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 44771-37230 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN |
1 | ||
| 44771-37230 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37370 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44771-37780 |
WU410..GCC,GEN |
1 | ||
| 44771-37781 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 44779J - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44779-37150 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 95446-09400 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
ILLUST NO. 1 OF 2(0212-0610)WU410..GCC,GEN ; (0304- )WU410,420..SA
VACUUM TYPE 15KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU414,424..6F..ARL;WU410,XZU434..ARL,GCC,GEN |
1 | ||
| 33162-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
BU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 35775-37010 |
WU410..GCC,GEN |
1 | ||
| 35775-37010 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 35775-93100 |
WU410 |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36421-37010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36421-93100 |
WU41#,422,XZU413,423..5F..(GCC,GEN) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
1 | ||
| 36422-93101 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
1 | ||
| 36422-93101 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.2 |
1 | ||
| 36422-93100 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.1 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.1 |
1 | ||
| 36422-93101 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) NO.2 |
1 | ||
| 36422-93101 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.2 |
1 | ||
| 36422-93100 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F NO.1 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37150 |
WU410..GCC,GEN VACUUM TYPE 15KG |
1 | ||
| 36610-37150 |
WU410..GCC,GEN VACUUM TYPE 15KG |
1 | ||
| 36610-37151 |
WU420;WU410..65T;WU410..75T..GEN VACUUM TYPE 15KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36621-93200 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 90311-25110 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36632-93101 |
WU410,XZU404,41#,42#,434..ARL,GCC,GEN |
1 | ||
| 36632-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36641-93100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37090 |
XZU404,41#,422,424..5F |
1 | ||
| 36714-93108 |
WU410..GCC,GEN |
1 | ||
| 36714-93108 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36718-93112 |
WU410..GCC,GEN |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
WU410..GCC,GEN |
1 | ||
| 36723-93107 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) T=16.25 |
1 | ||
| 90366-22001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90280-07011 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 90364-28020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 90364-28020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90387-25009 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 90387-25009 |
WU410..GCC,GEN |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
XZU414,424..6F..ARL;WU410,XZU434..ARL,GCC,GEN |
1 | ||
| 36728-93107 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
WU410..GCC,GEN |
2 | ||
| 90366-22001 |
WU420;WU410..65T;WU410..75T..GEN |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
WU410..GCC,GEN |
2 | ||
| 90366-22001 |
WU420;WU410..65T;WU410..75T..GEN |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 90521-56108 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 90521-56108 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90254-04002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.1 |
1 | ||
| 90564-25003 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.2 |
1 | ||
| 90564-25001 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.05 |
1 | ||
| 90564-25004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.5 |
1 | ||
| 90564-25004 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.5 |
1 | ||
| 90564-25002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.1 |
1 | ||
| 90564-25001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.05 |
1 | ||
| 90564-25003 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.2 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.07-0.13 |
1 | ||
| 90564-42001 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.02-0.08 |
1 | ||
| 90564-42003 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.17-0.23 |
1 | ||
| 90564-42004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) T=0.47-0.53 |
1 | ||
| 90564-42001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.02-0.08 |
1 | ||
| 90564-42004 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.47-0.53 |
1 | ||
| 90564-42003 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.17-0.23 |
1 | ||
| 90564-42002 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F T=0.07-0.13 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 36811-93104 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
WU410..GCC,GEN |
1 | ||
| 36814-93104 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 36851-37010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90101-08156 | ||||
| 90116-10103 | ||||
| 90119-08124 | ||||
| 90119-10029 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90389-25003 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| 97100-06205 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 2 OF 2(0610- )WU410..65T ; (0610- )WU412,42#..5F; (0610- )WU410..75T..GEN
VACUUM TYPE 15 KG, 25 KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78140 |
W04D..WU410..65T;W04D..WU412,42#..5F;W04D..WU410..75T..GEN |
1 | ||
| 27679-78140 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78032 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
S05C..XZU414,424,434..ARL,GEN;S05C,W04D..WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 27690-78080 |
J05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA |
1 | ||
| 27690-78080 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423..5F |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 44754-37110 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37350 |
BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 44763-37790 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN |
1 | ||
| 44763H - HOSE, VACUUM BRAKE | ||||
| 44771-37230 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN |
1 | ||
| 44771-37230 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37370 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44771-37780 |
WU410..GCC,GEN |
1 | ||
| 44771-37781 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 95446-09400 | ||||
| 96133-41500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
