WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU2#,3#,40,RU2#,30

Click highlighted areas on diagram

diagram 31111 31111 31121 31121 31122 33118 33118 33119 33119 33131 33131 33131A 33131A 33132 33132 9011908092 9011908092 9161161028 9161161028 9161161035 9161161035 9161161045 9161161045 9161161050 9161161050 9161161060 9161961245 9161961255 9161961255 9331116010
Part # Description Qty Price
Common parts
90119-08092
91611-61028
91611-61035
91611-61045
91611-61050
91611-61060
91619-61245
91619-61255
93311-16010

(7708- )

Click highlighted areas on diagram

diagram 33104 33104 33104A 33104A 33111 33111 33111A 33111A 33111J 33111J 33111J 33111J 33111X 33111X 33141 33141A 33141A 33151 33151 33157 33157 33161 33161 33161A 33161A 9010112412 9010112412 9011910121 9011910121 9011912115 9011912169 9161141016 9161141016 9161160825 9161160825 9161961230 9161961245 9161961245 9161961250 9161961255 9451201200
Part # Description Qty Price
Common parts
90101-12412
90119-10121
90119-12115
90119-12169
91611-41016
91611-60825
91619-61230
91619-61245
91619-61250
91619-61255
94512-01200

(0010- )MTM

Click highlighted areas on diagram

H260,H350,H351

diagram 31111 31111A 31121 31121 3305 33101C 33104 33104A 33111 33111A 33112C 33112C 33112C 33112E 33112G 33115 33124C 33124H 33125B 33131 33131A 33136 33139E 33151 33151K 33161 33162 33408B 33408C 33449B 33471A 36185D 36186D 9011908333 9011910019 9011910121 9011910188 9011910201 9014960053 9025010025 9034116013 9036010003 9050110127 9161160814 9161160814 91611G0820 91611G0820 9161261035 9161261045
Part # Description Qty Price
Common parts
90119-08333
90119-10019
90119-10121
90119-10188
90119-10201
90149-60053
90250-10025
90341-16013
90360-10003
90501-10127
91611-60814
91611-G0820
91612-61035
91612-61045
Linked diagrams
3305

(0212-0610)WU410..GCC,GEN ; (0304- )WU410,420..SA

Click highlighted areas on diagram

M153

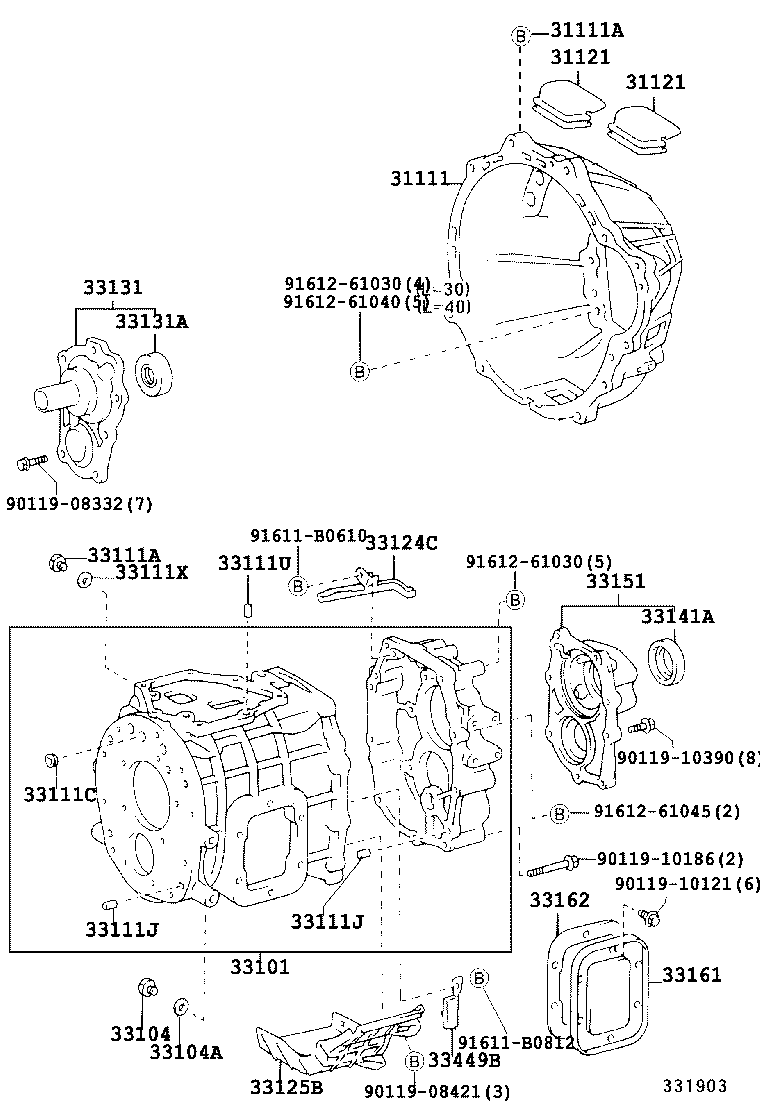

diagram 31111 31111A 31121 31121 33101 33104 33104A 33111A 33111C 33111J 33111J 33111U 33111X 33124C 33125B 33131 33131A 33141A 33151 33161 33162 33449B 9011908332 9011908421 9011910121 9011910186 9011910390 91611B0610 91611B0812 9161261030 9161261030 9161261040 9161261045
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-37090

WU410..GCC,GEN

 1
31111-37090

WU420;WU410..65T;WU410..75T..GEN

 1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10898

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36084

WU410..GCC,GEN

 1
33101-36084

WU420;WU410..65T;WU410..75T..GEN

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)

 1
90341-18006

WU420;WU410..65T;WU410..75T..GEN

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)

 1
90430-18008

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

XZU424..85T;XZU414..LHD..GEN;XZU414,424..75T..GEN;XZU404,414,434..(55T,85T)..ARL;WU410,XZU412,422..5F..(GCC,GEN)

 1
90341-18006

WU420;WU410..65T;WU410..75T..GEN

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600

WU410..GCC,GEN

 3
96411-11600

WU420;WU410..65T;WU410..75T..GEN

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

WU420;WU410..65T;WU410..75T..GEN

L=16,OD=12

 4
90250-12002

WU410,420

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

WU420;WU410..65T;WU410..75T..GEN

L=16,OD=12

 4
90250-12002

WU410,420

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

WU410..GCC,GEN

L=12,OD=13

 2
90253-13017

WU420;WU410..65T;WU410..75T..GEN

L=12,OD=13

 2
90253-11001

WU410..GCC,GEN

L=11,OD=11

 1
90253-11001

WU420;WU410..65T;WU410..75T..GEN

L=11,OD=11

 1
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

WU420;WU410..65T;WU410..75T..GEN

 1
90430-18008

WU410..GCC,GEN

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030

WU410..GCC,GEN

 1
33124-36030

WU420;WU410..65T;WU410..75T..GEN

 1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36020

WU420;WU410..65T;WU410..75T..GEN

 1
33125-36020

WU410..GCC,GEN

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-37010

WU410..GCC,GEN

 1
33018-37010

WU420;WU410..65T;WU410..75T..GEN

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023

XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)

 1
90311-35023

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011

WU410..GCC,GEN

 1
90311-48011

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031

WU410..GCC,GEN

 1
33017-36031

WU420;WU410..65T;WU410..75T..GEN

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33161-36010

XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;WU410,XZU404,412,422,434..ARL,GCC,GEN

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020

XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)

 1
33162-36020

WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F

 1
33449B - MAGNET, TRANSMISSION
33449-36010

WU410..GCC,GEN

 1
33449-36010

WU420;WU410..65T;WU410..75T..GEN

 1
Common parts
90119-08332
90119-08421
90119-10121
90119-10186
90119-10390
91611-B0610
91611-B0812
91612-61030
91612-61040
91612-61045
