WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

Click highlighted areas on diagram

diagram 30000K 33110
Part # Description Qty Price

(0010- )MTM

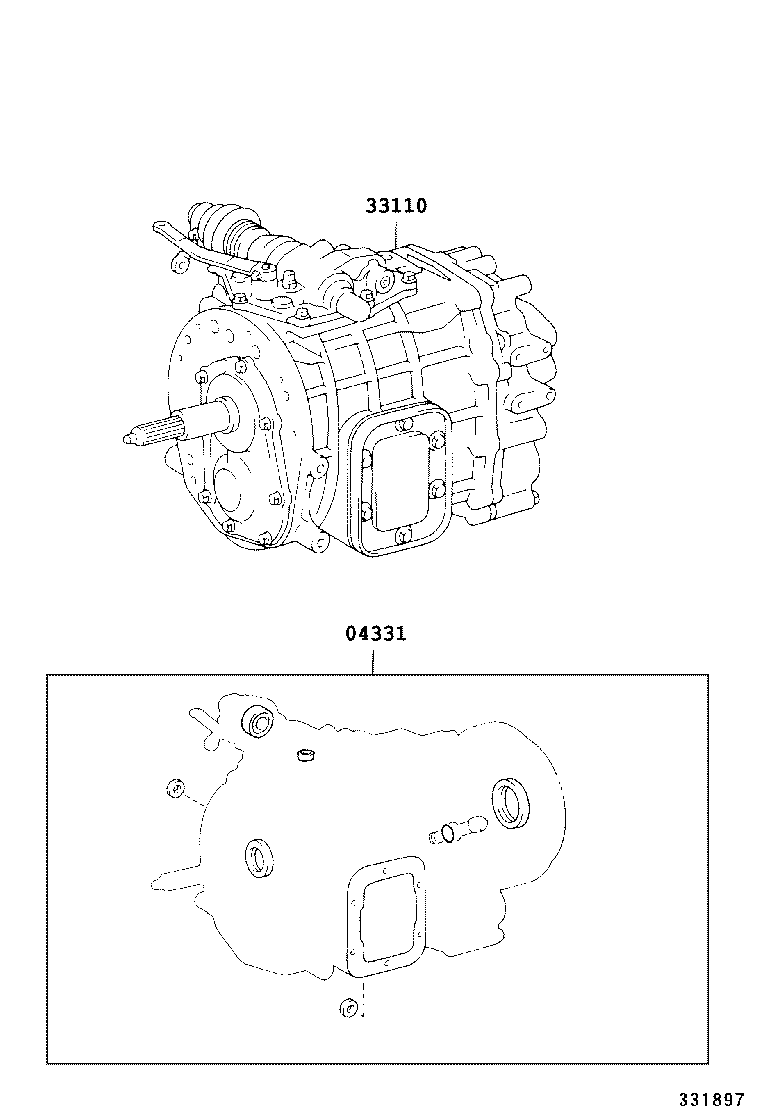

Click highlighted areas on diagram

H260,H350

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-37030

XZU414,424..LHD..(55T,85T);XZU414,424,434..RHD..(65T,75T,85T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
04331-37330

WU420;WU410..65T;WU410..75T..GEN

 1
33110 - TRANSMISSION ASSY, MANUAL
33120-37590

WU410..65T..(GCC,GEN)

W(DRIVEN GEAR N=21,22)

 1
33120-37600

WU410..GEN

W(DRIVEN GEAR N=23,24,25)

 1
33120-37590

WU410..65T..(GCC,GEN)

M153,W(DRIVEN GEAR N=21,22)

 1
33120-37591

WU410..65T

M153,W(DRIVEN GEAR N=21,22)

 1
33120-37601

WU410

M153,W(DRIVEN GEAR N=23,24)

 1
33120-37600

WU420..75T;WU410..GCC,GEN

M153,W(DRIVEN GEAR N=23,24)

 1

(0212-0610)WU410..GCC,GEN ; (0304- )WU410,420..SA

Click highlighted areas on diagram

M153

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-37030

XZU414,424..LHD..(55T,85T);XZU414,424,434..RHD..(65T,75T,85T);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
04331-37330

WU420;WU410..65T;WU410..75T..GEN

 1
33110 - TRANSMISSION ASSY, MANUAL
33120-37590

WU410..65T..(GCC,GEN)

W(DRIVEN GEAR N=21,22)

 1
33120-37600

WU410..GEN

W(DRIVEN GEAR N=23,24,25)

 1
33120-37590

WU410..65T..(GCC,GEN)

M153,W(DRIVEN GEAR N=21,22)

 1
33120-37591

WU410..65T

M153,W(DRIVEN GEAR N=21,22)

 1
33120-37601

WU410

M153,W(DRIVEN GEAR N=23,24)

 1
33120-37600

WU420..75T;WU410..GCC,GEN

M153,W(DRIVEN GEAR N=23,24)

 1
