WU410L-TKMQS3 (2002)
Toyota Dyna
(0010- )
AUSTRALIA SPEC & STACK TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 16721-78010 | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 90179-10015 | ||||
| 90917-08011 | ||||
| 91621-60814 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||

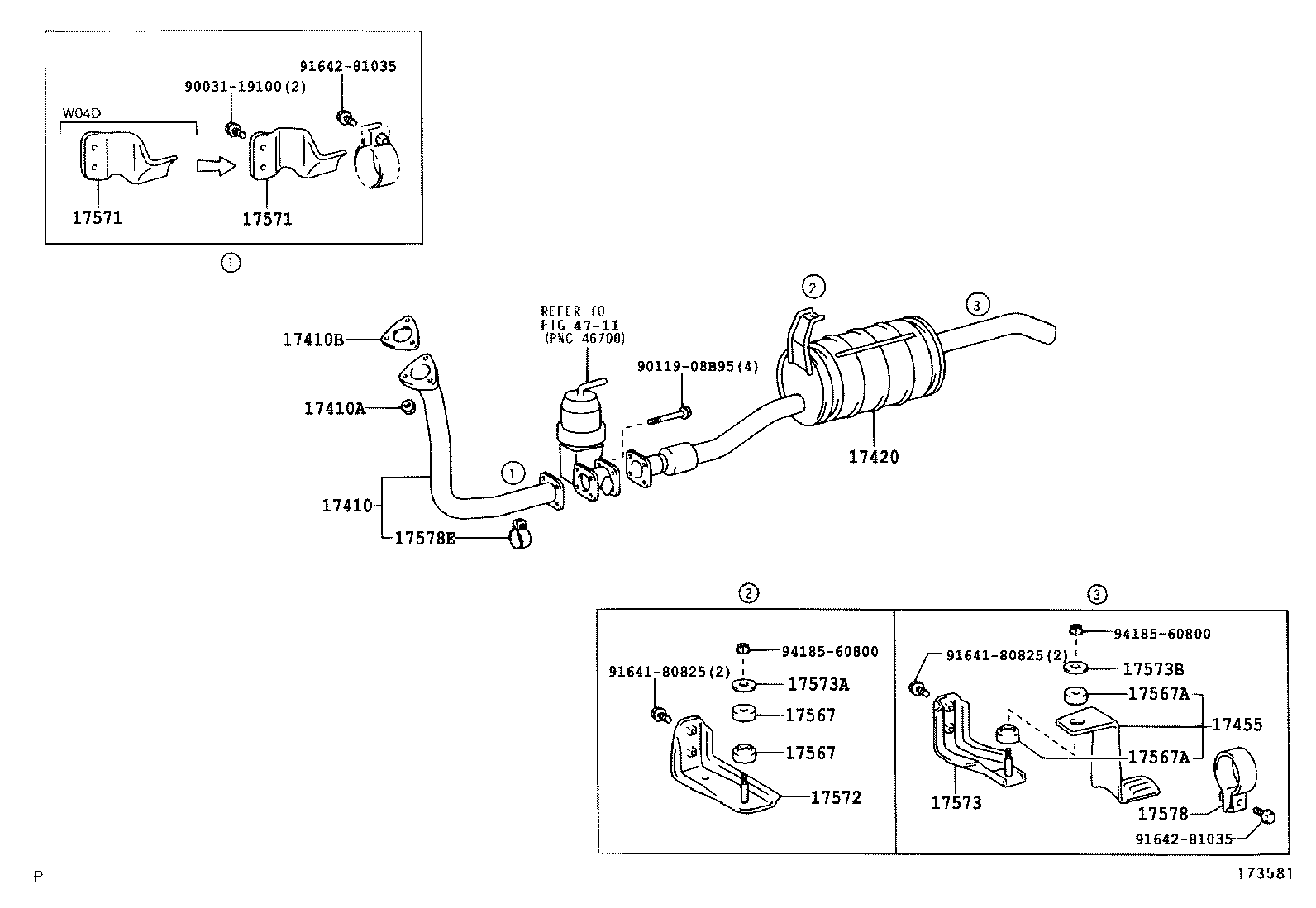

(0212-0610)W04D..WU410..GCC,GEN ; (0212- )J05C,S05C..XZU412,420,422,430..DSL ; (
SHORT TAIL PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78140 |
W04D..WU410..GCC,GEN |
1 | ||
| 17401-78340 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05C..XZU412,422..5F..TD;S05C,W04D..WU410,XZU404,414,424,434..ARL,GCC,GEN |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78480 |
W04D..WU410..GCC,GEN |
1 | ||
| 17403-78480 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78070 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17571-78040 |
W04D..WU410..GCC,GEN |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17571-78040 |
W04D..WU410..GCC,GEN |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17572-78071 |
J05C,S05C,W04D..WU410,420,XZU412,420,422,430..DSL |
1 | ||
| 17572-78072 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17573-78082 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 16721-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17578-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05C..XZU412,422..5F..GEN;S05C,W04D..WU410,XZU404,414,424,434..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90031-19100 | ||||
| 90119-08B95 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4711 | ||||

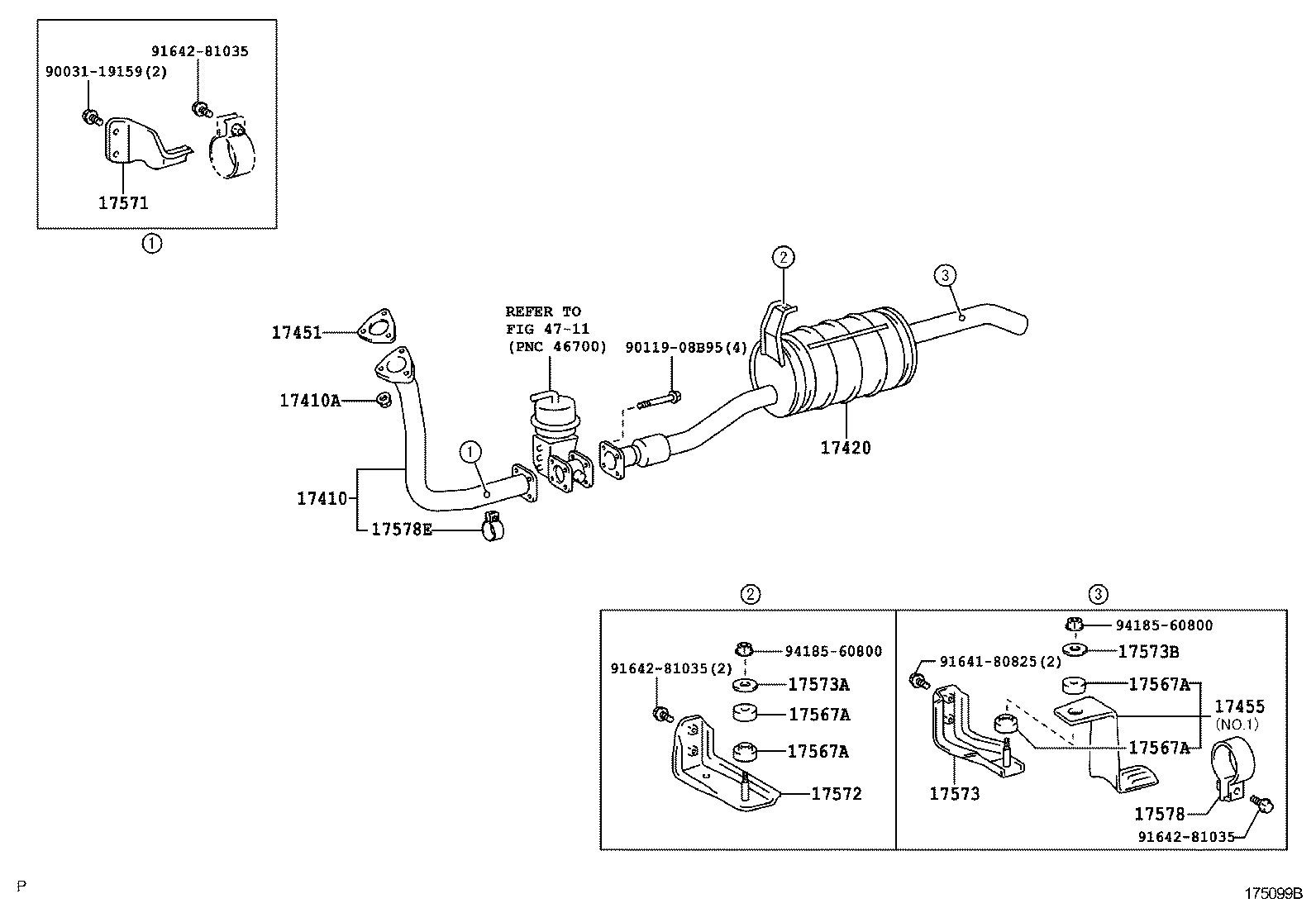

(0610- )W04D..WU410 ; (0802- )W04D..WU420
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78140 |
W04D..WU410..GCC,GEN |
1 | ||
| 17401-78340 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
S05C..XZU412,422..5F..TD;S05C,W04D..WU410,XZU404,414,424,434..ARL,GCC,GEN |
3 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78480 |
W04D..WU410..GCC,GEN |
1 | ||
| 17403-78480 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-78070 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 NO.1 |
1 | ||
| 17455-78070 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
2 | ||
| 17567-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 17571-78040 |
W04D..WU410..GCC,GEN |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78072 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 17572-78071 |
J05C,S05C,W04D..WU410,420,XZU412,420,422,430..DSL |
1 | ||
| 17572-78072 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78082 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17573-78082 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 16721-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 16721-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 16721-78010 |
S05C..XZU422..75T..DSL;S05C,W04D..WU410,XZU412..(GCC,GEN)..DSL SHORT TAIL & VERTICAL TAIL PIPE |
1 | ||
| 17578 - CLAMP, PIPE | ||||
| 17578-78010 |
S05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL SHORT TAIL PIPE |
1 | ||
| 17578-78010 |
W04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433 |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
S05C..XZU412,422..5F..GEN;S05C,W04D..WU410,XZU404,414,424,434..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90031-19159 | ||||
| 90119-08B95 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4711 | ||||
