WU410L-TKMQS3 (2002)
Toyota Dyna
ILLUST NO. 2 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-40830 | ||||
| 91651-B0820 | ||||
ILLUST NO. 1 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 16581-78100 | ||||
| 90031-05010 | ||||
| 90031-05050 | ||||
| 90031-05053 | ||||
| 90033-01047 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 8202 | ||||

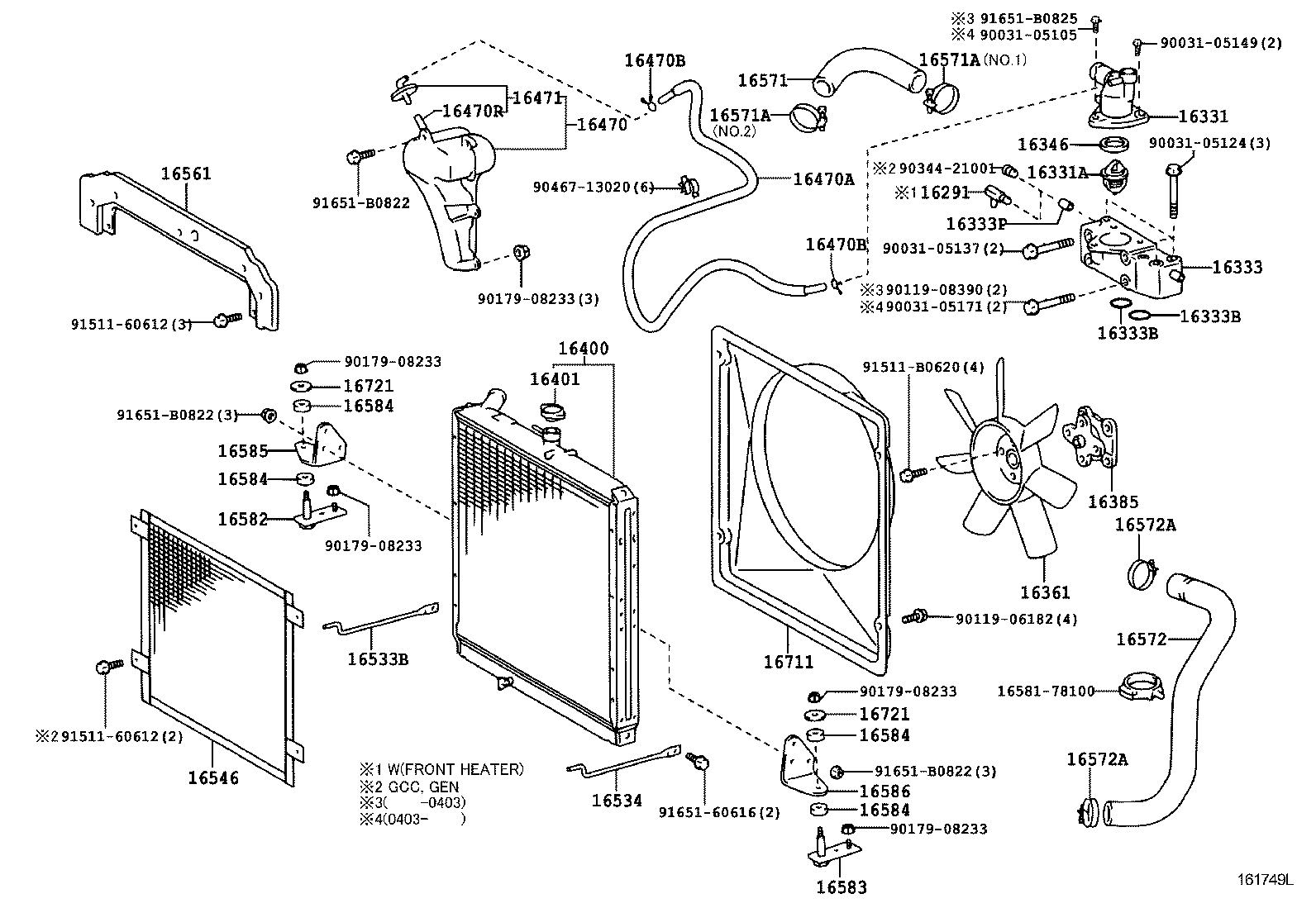

(0212-0610)W04D..WU410..GCC,GEN ; (0304-0802)W04D..WU410,420..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16291 - JOINT, WATER HOSE | ||||
| 87251-30190 |
W04D..WU410..GCC,GEN |
1 | ||
| 87251-30190 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16334-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16334-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33012 |
W04D..WU410..GCC,GEN *WAX 82-95 |
1 | ||
| 90038-33012 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78040 |
W04D..WU410..GCC,GEN |
1 | ||
| 16303-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
W04D..WU410..GCC,GEN |
2 | ||
| 90033-01068 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
W04D..WU410..GCC,GEN |
2 | ||
| 90033-01068 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16333P - UNION(FOR WATER OUTLET HOUSING) | ||||
| 90034-05021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90034-05021 |
W04D..WU410..GCC,GEN |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16346-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-78070 |
W04D..WU410..GCC,GEN |
1 | ||
| 16361-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16365-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 16365-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78101 |
W04D..WU410..GCC,GEN |
1 | ||
| 16400-78B70 |
W04D..WU410 |
1 | ||
| 16400-78570 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 16401-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16470-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78070 |
W04D..WU410..GCC,GEN L=1690 |
1 | ||
| 16567-78440 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=1755 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
W04D..WU410..GCC,GEN |
2 | ||
| 90467-11085 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
W04D..WU410..GCC,GEN |
2 | ||
| 90467-11085 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
W04D..WU410..GCC,GEN L=315 |
1 | ||
| 90445-12078 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16405-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78030 |
W04D..WU410,420 |
1 | ||
| 16533-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78030 |
W04D..WU410,420 |
1 | ||
| 16534-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16546-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78030 |
W04D..WU410..GCC,GEN |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78110 |
W04D..WU410..GCC,GEN |
1 | ||
| 16571-78111 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
W04D..WU410,420 NO.2 |
1 | ||
| 16581-58010 |
W04D..WU410,420 NO.1 |
1 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN NO.1 & NO.2 |
2 | ||
| 90460-55014 |
W04D..WU410,420 NO.1 & NO.2 |
2 | ||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
W04D..WU410,420 NO.2 |
1 | ||
| 16581-58010 |
W04D..WU410,420 NO.1 |
1 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN NO.1 & NO.2 |
2 | ||
| 90460-55014 |
W04D..WU410,420 NO.1 & NO.2 |
2 | ||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78120 |
W04D..WU410..GCC,GEN |
1 | ||
| 16572-78121 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 90460-55014 |
W04D..WU410,420 |
2 | ||
| 16581-78050 |
W04D..WU410,420 |
2 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 90460-55014 |
W04D..WU410,420 |
2 | ||
| 16581-78050 |
W04D..WU410,420 |
2 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16583-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 16583-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 16583-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78030 |
W04D..WU410..GCC,GEN |
1 | ||
| 16585-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 16586-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78070 |
W04D..WU410..GCC,GEN |
1 | ||
| 16711-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16721-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16721-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| Common parts | ||||
| 16581-78100 | ||||
| 90031-05105 | ||||
| 90031-05124 | ||||
| 90031-05137 | ||||
| 90031-05149 | ||||
| 90031-05171 | ||||
| 90119-06182 | ||||
| 90119-08390 | ||||
| 90179-08233 | ||||
| 90344-21001 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91511-B0620 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||

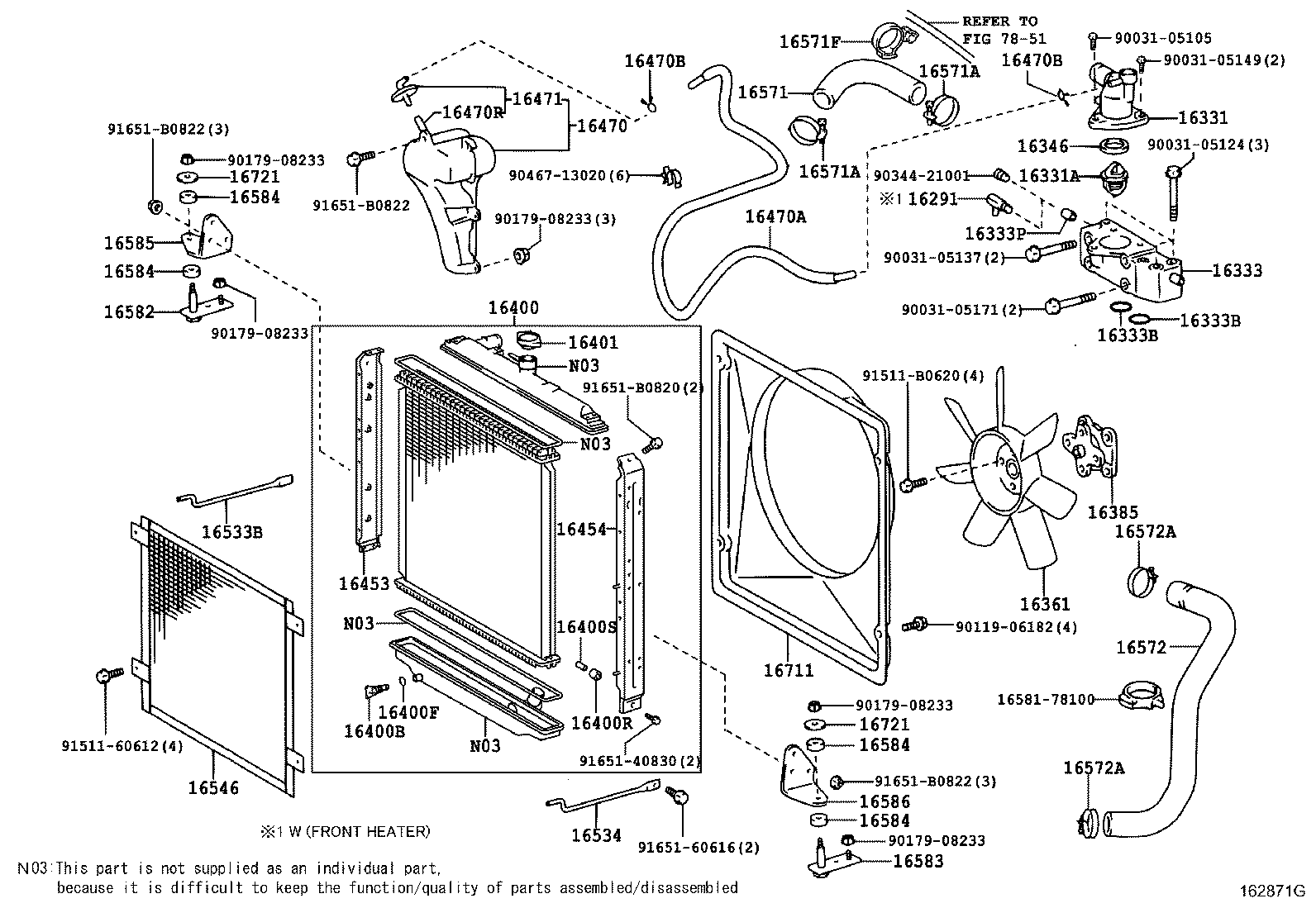

(0610- )W04D..WU410..GCC,GEN ; (0802-0812)W04D..WU410,420..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16291 - JOINT, WATER HOSE | ||||
| 87251-30190 |
W04D..WU410..GCC,GEN |
1 | ||
| 87251-30190 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16334-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16334-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33012 |
W04D..WU410..GCC,GEN *WAX 82-95 |
1 | ||
| 90038-33012 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78040 |
W04D..WU410..GCC,GEN |
1 | ||
| 16303-78040 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
W04D..WU410..GCC,GEN |
2 | ||
| 90033-01068 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
W04D..WU410..GCC,GEN |
2 | ||
| 90033-01068 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16333P - UNION(FOR WATER OUTLET HOUSING) | ||||
| 90034-05021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90034-05021 |
W04D..WU410..GCC,GEN |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16346-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16361 - FAN | ||||
| 16361-78070 |
W04D..WU410..GCC,GEN |
1 | ||
| 16361-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16365-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 16365-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78101 |
W04D..WU410..GCC,GEN |
1 | ||
| 16400-78B70 |
W04D..WU410 |
1 | ||
| 16400-78570 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-78100 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-78100 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 16401-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78570 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78570 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16454-78B70 |
W04D..WU410 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16470-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78070 |
W04D..WU410..GCC,GEN L=1690 |
1 | ||
| 16567-78440 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=1755 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
W04D..WU410..GCC,GEN |
2 | ||
| 90467-11085 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
W04D..WU410..GCC,GEN |
2 | ||
| 90467-11085 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
W04D..WU410..GCC,GEN L=315 |
1 | ||
| 90445-12078 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16405-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78030 |
W04D..WU410,420 |
1 | ||
| 16533-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78030 |
W04D..WU410,420 |
1 | ||
| 16534-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16546-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78110 |
W04D..WU410..GCC,GEN |
1 | ||
| 16571-78111 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
W04D..WU410,420 NO.2 |
1 | ||
| 16581-58010 |
W04D..WU410,420 NO.1 |
1 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN NO.1 & NO.2 |
2 | ||
| 90460-55014 |
W04D..WU410,420 NO.1 & NO.2 |
2 | ||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
W04D..WU410,420 NO.2 |
1 | ||
| 16581-58010 |
W04D..WU410,420 NO.1 |
1 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN NO.1 & NO.2 |
2 | ||
| 90460-55014 |
W04D..WU410,420 NO.1 & NO.2 |
2 | ||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 90464-00731 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78120 |
W04D..WU410..GCC,GEN |
1 | ||
| 16572-78121 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 90460-55014 |
W04D..WU410,420 |
2 | ||
| 16581-78050 |
W04D..WU410,420 |
2 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-52003 |
W04D..WU410,420 |
2 | ||
| 90460-55014 |
W04D..WU410,420 |
2 | ||
| 16581-78050 |
W04D..WU410,420 |
2 | ||
| 16581-78140 |
W04D..WU410..GCC,GEN |
2 | ||
| 16581-78191 |
W04D..WU41#,422 |
2 | ||
| 16581-78140 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16581-78190 |
W04D..WU41#,42# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16583-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 16583-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 16583-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
W04D..WU410..GCC,GEN |
4 | ||
| 16584-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78030 |
W04D..WU410..GCC,GEN |
1 | ||
| 16585-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 16586-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78070 |
W04D..WU410..GCC,GEN |
1 | ||
| 16711-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16721-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 16721-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| Common parts | ||||
| 16581-78100 | ||||
| 90031-05105 | ||||
| 90031-05124 | ||||
| 90031-05137 | ||||
| 90031-05149 | ||||
| 90031-05171 | ||||
| 90119-06182 | ||||
| 90179-08233 | ||||
| 90344-21001 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91511-B0620 | ||||
| 91651-40830 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 7851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
