WU410L-TKMQS3 (2002)
Toyota Dyna
(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90033-63032 | ||||
| 90038-01017 | ||||
| 90038-01020 | ||||
| 90038-01022 | ||||
| Linked diagrams | ||||
| 1302 | ||||

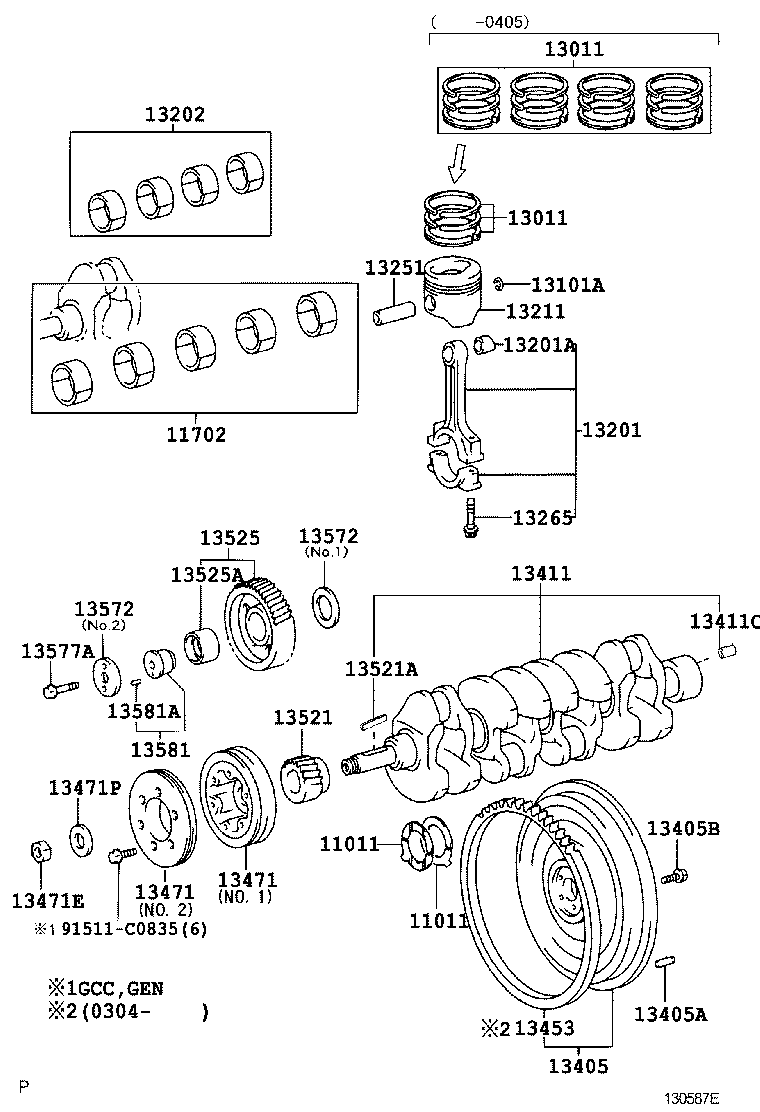

(0212-0610)W04D..WU410..GCC,GEN ; (0304-0802)W04D..WU410,420..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-78010 |
W04D..WU410..GCC,GEN O/S 0.250 |
1 | ||
| 11011-78010 |
W04D..WU410..GCC,GEN STD |
1 | ||
| 11011-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN STD |
1 | ||
| 11013-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN O/S 0.250 |
1 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-78010 |
W04D..WU410..GCC,GEN O/S 0.250 |
1 | ||
| 11011-78010 |
W04D..WU410..GCC,GEN STD |
1 | ||
| 11011-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN STD |
1 | ||
| 11013-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-78010 |
W04D..WU410..GCC,GEN U/S 0.25 |
1 | ||
| 11705-78010 |
W04D..WU410..GCC,GEN U/S 0.50 |
1 | ||
| 11701-78010 |
W04D..WU410..GCC,GEN STD |
1 | ||
| 11706-78010 |
W04D..WU410..GCC,GEN U/S 0.75 |
1 | ||
| 11707-78010 |
W04D..WU410..GCC,GEN U/S 1.00 |
1 | ||
| 11705-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 0.50 |
1 | ||
| 11706-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 0.75 |
1 | ||
| 11707-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 1.00 |
1 | ||
| 11704-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 0.25 |
1 | ||
| 11701-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN STD |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78060 |
W04D..WU410,420 STD |
1 | ||
| 13011-78180 |
W04D..WU410..GCC,GEN STD |
4 | ||
| 13011-78180 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN STD |
4 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78060 |
W04D..WU410,420 STD |
1 | ||
| 13011-78180 |
W04D..WU410..GCC,GEN STD |
4 | ||
| 13011-78180 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90035-21020 |
W04D..WU410..GCC,GEN |
8 | ||
| 90035-21020 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-78030 |
W04D..WU410,420 |
4 | ||
| 13260-78060 |
W04D..WU410,420 |
4 | ||
| 13201-78030 |
W04D..WU410..GCC,GEN |
4 | ||
| 13201-78030 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 13271-89102 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 13271-89102 |
W04D..WU410..GCC,GEN |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13206-89103 |
W04D..WU410..GCC,GEN U/S 0.75 |
1 | ||
| 13041-78040 |
W04D..WU410..GCC,GEN STD |
1 | ||
| 13204-89105 |
W04D..WU410..GCC,GEN U/S 0.25 |
1 | ||
| 13205-78020 |
W04D..WU410..GCC,GEN U/S 0.50 |
1 | ||
| 13207-89103 |
W04D..WU410..GCC,GEN U/S 1.00 |
1 | ||
| 13204-89105 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 0.25 |
1 | ||
| 13206-89103 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 0.75 |
1 | ||
| 13207-89103 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 1.00 |
1 | ||
| 13041-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN STD |
1 | ||
| 13205-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN U/S 0.50 |
1 | ||
| 13211 - PISTON | ||||
| 13211-78120 |
W04D..WU410..GCC,GEN |
4 | ||
| 13251 - PIN, PISTON | ||||
| 13251-89101 |
W04D..WU410..GCC,GEN |
4 | ||
| 13251-89101 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-89103 |
W04D..WU410..GCC,GEN |
8 | ||
| 13265-89103 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 13405-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13405-78021 |
W04D..WU410 |
1 | ||
| 13450-78210 |
W04D..WU410 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10008 |
W04D..WU410..GCC,GEN L=24,OD=10 |
2 | ||
| 90250-10008 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-14021 |
W04D..WU410 |
6 | ||
| 90031-05112 |
W04D..WU410..GCC,GEN |
6 | ||
| 90031-05112 |
W04D..WU41#,422 |
8 | ||
| 90031-05112 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-78011 |
W04D..WU410,420 |
1 | ||
| 13411-78081 |
W04D..WU41#,422 |
1 | ||
| 13411-78011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90387-14013 |
W04D..WU410..GCC,GEN |
1 | ||
| 90387-14013 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 13453-78011 |
W04D..WU410 |
1 | ||
| 13453-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78080 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 13470-78090 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 13470-78090 |
W04D..WU41#,422..GCC,GEN NO.2 |
1 | ||
| 13470-78080 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 13470-78081 |
W04D..WU41#,422 NO.1 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-78080 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 13470-78090 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 13470-78090 |
W04D..WU41#,422..GCC,GEN NO.2 |
1 | ||
| 13470-78080 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 13470-78081 |
W04D..WU41#,422 NO.1 |
1 | ||
| 13471E - NUT(FOR CRANKSHAFT PULLEY) | ||||
| 90170-27001 |
W04D..WU410..GCC,GEN |
1 | ||
| 90170-27001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13471P - SPACER(FOR CRANKSHAFT PULLEY) | ||||
| 90560-27006 |
W04D..WU410..GCC,GEN |
1 | ||
| 13478-78020 |
W04D..WU41#,422 |
1 | ||
| 90560-27006 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-78090 |
W04D..WU410..GCC,GEN |
1 | ||
| 13521-78090 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13521-78060 |
W04D..WU410 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90281-06001 |
W04D..WU410..GCC,GEN |
1 | ||
| 90281-06001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90032-81009 |
W04D..WU41#,422 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13508-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 13525A - BUSH, IDLE GEAR | ||||
| 90999-73096 |
W04D..WU410..GCC,GEN |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
W04D..WU410,420 NO.1 |
1 | ||
| 13572-78060 |
W04D..WU410..GCC,GEN |
1 | ||
| 13572-78050 |
W04D..WU410,420 NO.2 |
2 | ||
| 13572-78060 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-78010 |
W04D..WU410,420 NO.1 |
1 | ||
| 13572-78060 |
W04D..WU410..GCC,GEN |
1 | ||
| 13572-78050 |
W04D..WU410,420 NO.2 |
2 | ||
| 13572-78060 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90038-01026 |
W04D..WU410..GCC,GEN |
1 | ||
| 90038-01026 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-78040 |
W04D..WU410,420 |
1 | ||
| 13504-78020 |
W04D..WU410,420 |
1 | ||
| 13581-78131 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 13581A - PIN, STRAIGHT(FOR IDLE GEAR SHAFT) | ||||
| 90250-06011 |
W04D..WU410,420 |
2 | ||
| Common parts | ||||
| 91511-C0835 | ||||
