WU410L-TKMQS3 (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )H,2H

Click highlighted areas on diagram

diagram 11000K 11000K 11000K 11000K 11000K 11000K 11000K 11101K 11101K 11101K 11101K 11101K 11101K 11101K
Part # Description Qty Price

(0010- )

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price

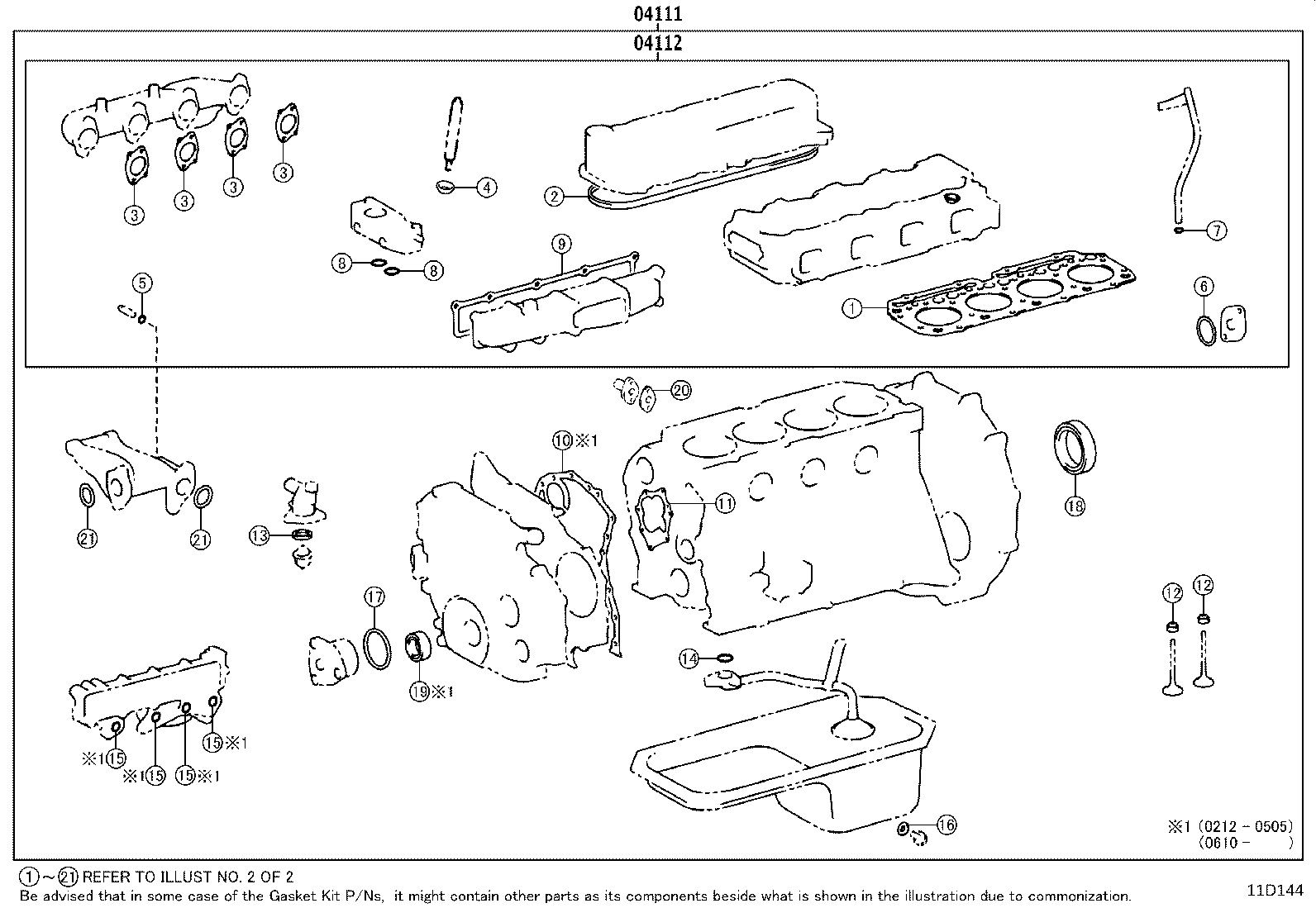

ILLUST NO. 1 OF 2(0212- )W04D..WU410,420

Click highlighted areas on diagram

WITH (TACHOMATER)

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370

W04D..WU410

W(TACHOMATER)

 1
04111-78330

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER)

 1
04111-80020

W04D..WU410..GCC,GEN

 1
04111-80380

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-80460

W04D..WU410..GCC,GEN

 1
04111-80580

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-7C160

W04D..WU410..GCC,GEN

W(TACHOMETER)

 1
04111-80560

W04D..WU410..GCC,GEN

W(FRONT HEATER)

 1
04111-7C161

W04D..WU410,420

W(TACHOMETER)

 1
04111-7C150

W04D..WU410..GCC,GEN

 1
04111-7C351

W04D..WU410

STD SPEC

 1
04111-7C352

W04D..WU410

 1
04111-7C350

W04D..WU410..GCC,GEN

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER OR TACHOMETER)

 1
04112-78240

W04D..WU410,420

 1
04112-78250

W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN

 1

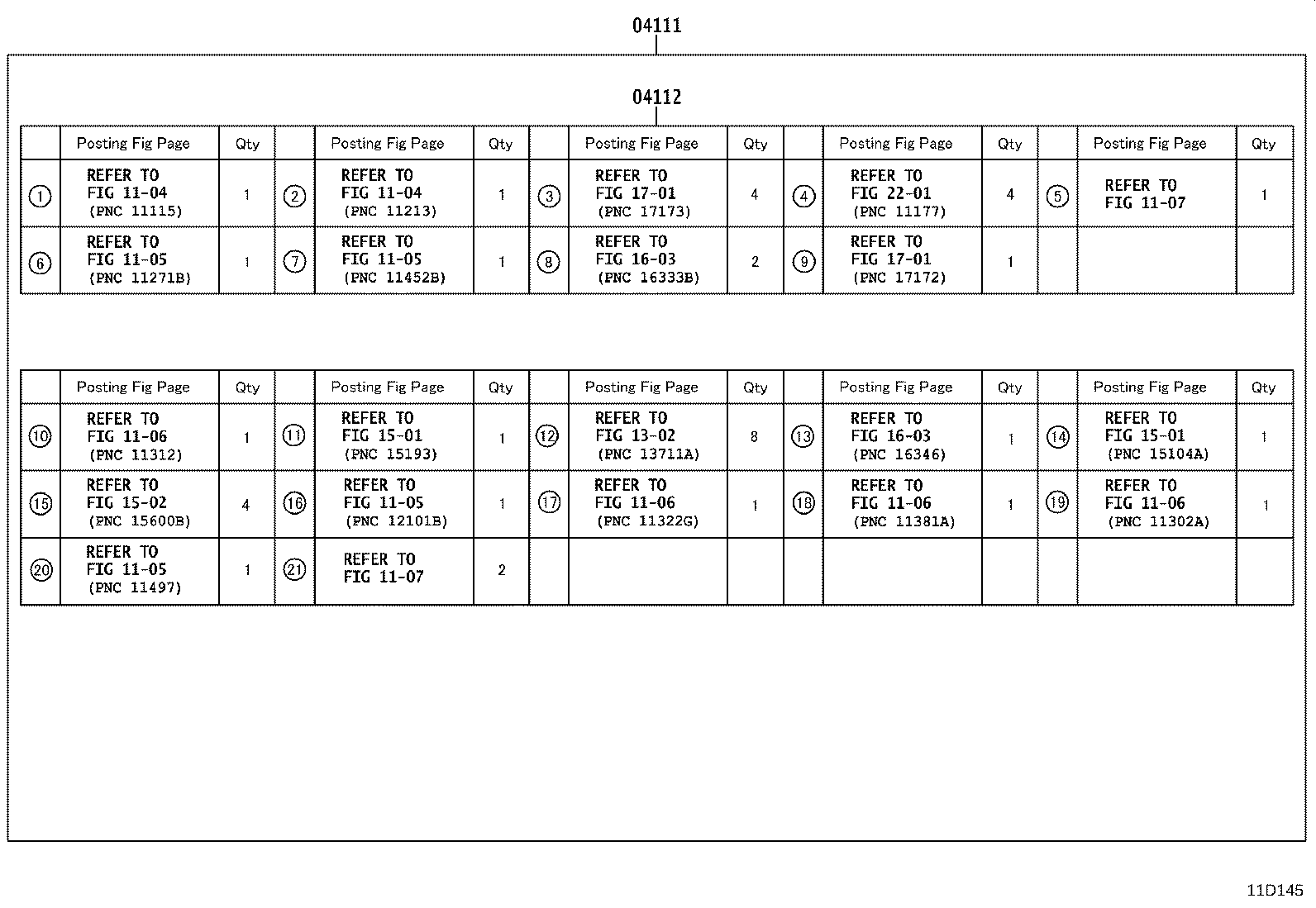

ILLUST NO. 2 OF 2(0212- )W04D..WU410,420

Click highlighted areas on diagram

WITH (TACHOMATER)

diagram 04111 04112 1104 1104 1105 1105 1105 1105 1106 1106 1106 1106 1107 1302 1501 1501 1502 1603 1603 1701 1701 2201
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370

W04D..WU410

W(TACHOMATER)

 1
04111-78330

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER)

 1
04111-80020

W04D..WU410..GCC,GEN

 1
04111-80380

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-80460

W04D..WU410..GCC,GEN

 1
04111-80580

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-7C160

W04D..WU410..GCC,GEN

W(TACHOMETER)

 1
04111-80560

W04D..WU410..GCC,GEN

W(FRONT HEATER)

 1
04111-7C161

W04D..WU410,420

W(TACHOMETER)

 1
04111-7C150

W04D..WU410..GCC,GEN

 1
04111-7C351

W04D..WU410

STD SPEC

 1
04111-7C352

W04D..WU410

 1
04111-7C350

W04D..WU410..GCC,GEN

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER OR TACHOMETER)

 1
04112-78240

W04D..WU410,420

 1
04112-78250

W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN

 1
Linked diagrams
1104
1105
1106
1107
1302
1501
1502
1603
1701
2201

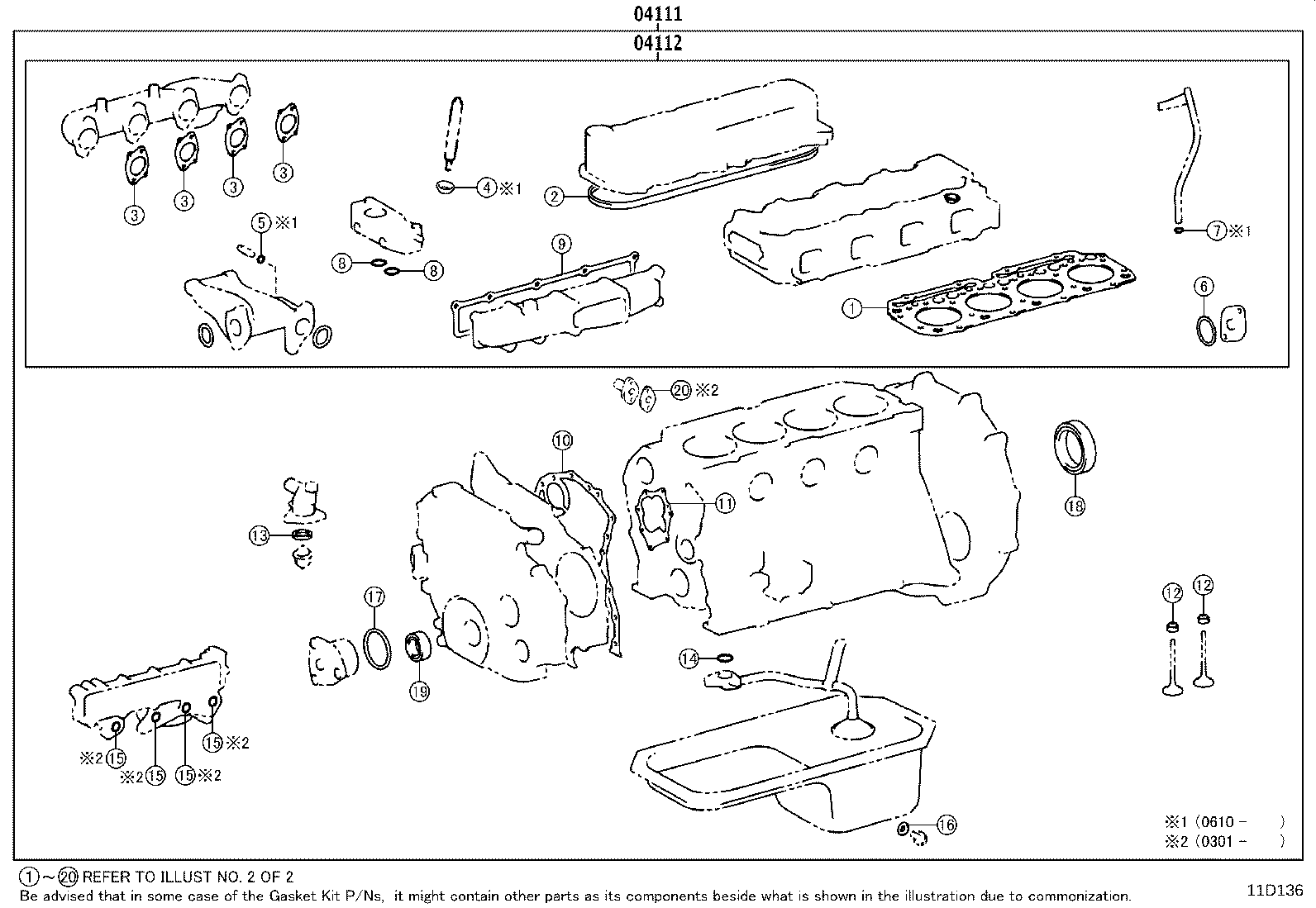

ILLUST NO. 1 OF 2(0212-0905)W04D..WU410..GCC,GEN ; (0904-1106)W04D..WU410

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370

W04D..WU410

W(TACHOMATER)

 1
04111-78330

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER)

 1
04111-80020

W04D..WU410..GCC,GEN

 1
04111-80380

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-80460

W04D..WU410..GCC,GEN

 1
04111-80580

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-7C160

W04D..WU410..GCC,GEN

W(TACHOMETER)

 1
04111-80560

W04D..WU410..GCC,GEN

W(FRONT HEATER)

 1
04111-7C161

W04D..WU410,420

W(TACHOMETER)

 1
04111-7C150

W04D..WU410..GCC,GEN

 1
04111-7C351

W04D..WU410

STD SPEC

 1
04111-7C352

W04D..WU410

 1
04111-7C350

W04D..WU410..GCC,GEN

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER OR TACHOMETER)

 1
04112-78240

W04D..WU410,420

 1
04112-78250

W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN

 1

ILLUST NO. 2 OF 2(0212-0905)W04D..WU410..GCC,GEN ; (0304- )W04D..WU410,420..SA ; (0904-1106)W04D.

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1105 1105 1105 1106 1106 1106 1106 1107 1107 1302 1501 1501 1502 1603 1603 1701 1701 2201
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370

W04D..WU410

W(TACHOMATER)

 1
04111-78330

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER)

 1
04111-80020

W04D..WU410..GCC,GEN

 1
04111-80380

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-80460

W04D..WU410..GCC,GEN

 1
04111-80580

W04D..WU410..GCC,GEN

W(TACHOMATER)

 1
04111-7C160

W04D..WU410..GCC,GEN

W(TACHOMETER)

 1
04111-80560

W04D..WU410..GCC,GEN

W(FRONT HEATER)

 1
04111-7C161

W04D..WU410,420

W(TACHOMETER)

 1
04111-7C150

W04D..WU410..GCC,GEN

 1
04111-7C351

W04D..WU410

STD SPEC

 1
04111-7C352

W04D..WU410

 1
04111-7C350

W04D..WU410..GCC,GEN

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100

W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA

W(FRONT HEATER OR TACHOMETER)

 1
04112-78240

W04D..WU410,420

 1
04112-78250

W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN

 1
Linked diagrams
1104
1105
1106
1107
1302
1501
1502
1603
1701
2201
