WU40R-MRDT3 (1983)
Toyota Dyna
(8304-8408)WU40..RHD..IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-36660 |
WU40..RHD..IV3 THAILAND SPEC |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-36660 |
WU40..RHD..IV3 THAILAND SPEC |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48247-36160 |
BU40,HU40,50,WU40,50 |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48217-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48203-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48221-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48222-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48223-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48224-36660 |
WU40..RHD..IV3 THAILAND SPEC |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48225-36660 |
WU40..RHD..IV3 |
2 | ||
| 48269 - LEAF, REAR HELPER SPRING, NO.9 | ||||
| 48226-36660 |
WU40..RHD..IV3 |
2 | ||
| 48270 - LEAF, REAR HELPER SPRING, NO.10 | ||||
| 48227-36660 |
WU40..RHD..IV3 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 95111-00820 | ||||

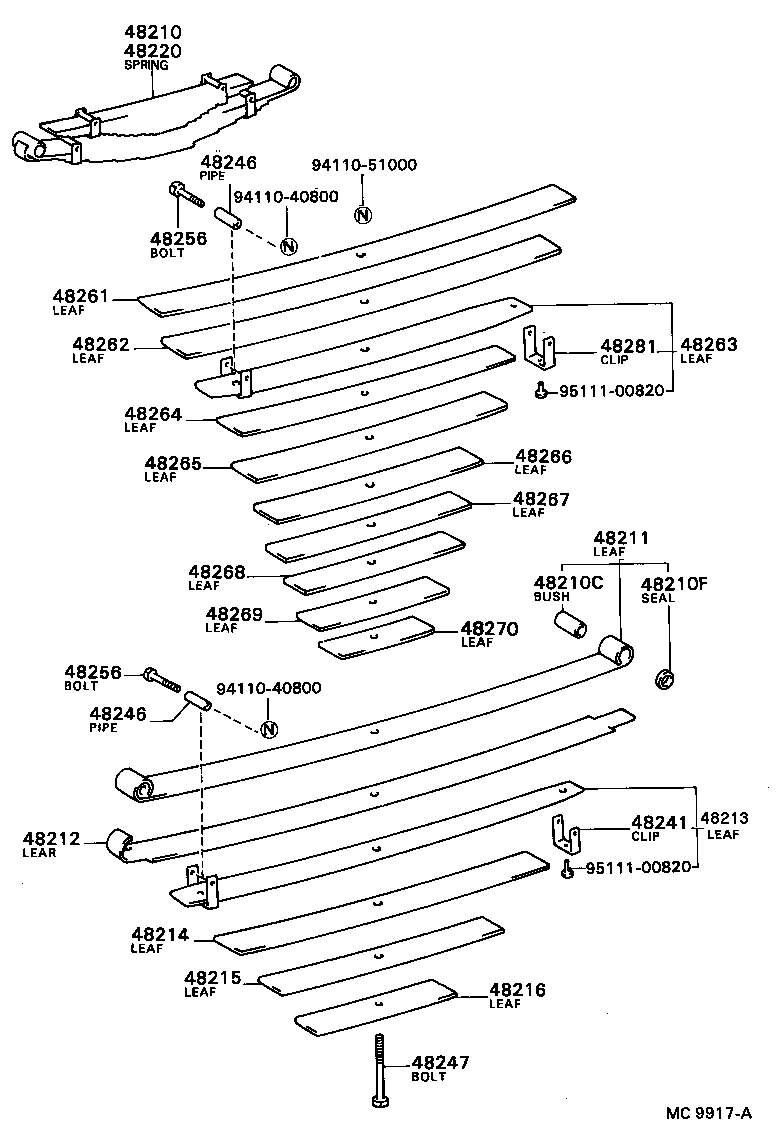

ILLUST NO. 2 OF 2(0110-0610)XZU424..EUR ; (0110-0610)XZU414,434..75T ; (0110-0610)XZU424..RHD..75T ;
MAIN 2+HELPER 3-LEAF 48210-3V450
| Part # | Description | Qty | Price |
|---|
