WU40L-MRDT (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)1W

Click highlighted areas on diagram

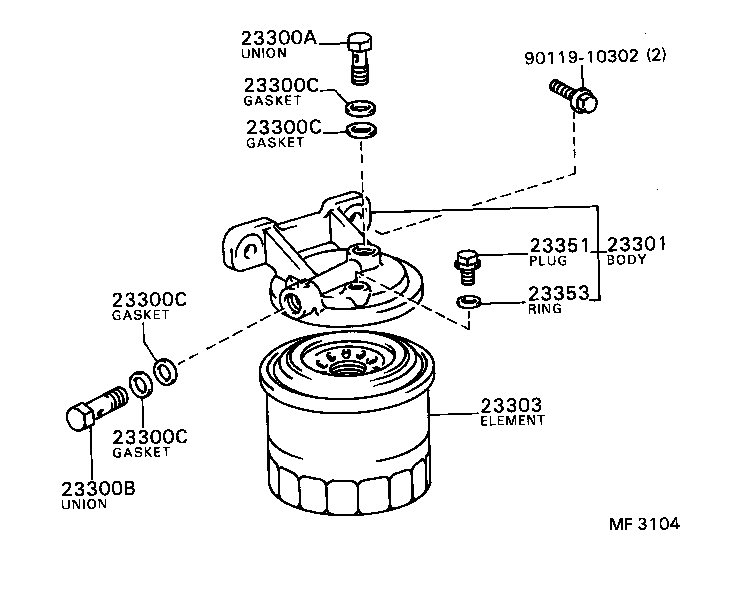

diagram 23300A 23300B 23300C 23300C 23300C 23300C 23301 23303 23351 23353 9011910302
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14004

1W..WU40,50

 1
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
90401-14004

1W..WU40,50

 1
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU40,50

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU40,50

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU40,50

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
90202-14004

1W..WU40,50

 4
23301 - BODY SUB-ASSY, FUEL FILTER
23310-78010

1W..WU40,50

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23304-78010

1W..WU40,50

 1
23351 - PLUG, AIR VENT
23322-78010

1W..WU40,50

 1
23353 - RING, O(FOR AIR VENT PLUG)
90202-06012

1W..WU40,50

 1
Common parts
90119-10302
