WU40L-MRDT (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984

Engine 1W

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8304-8408)1W

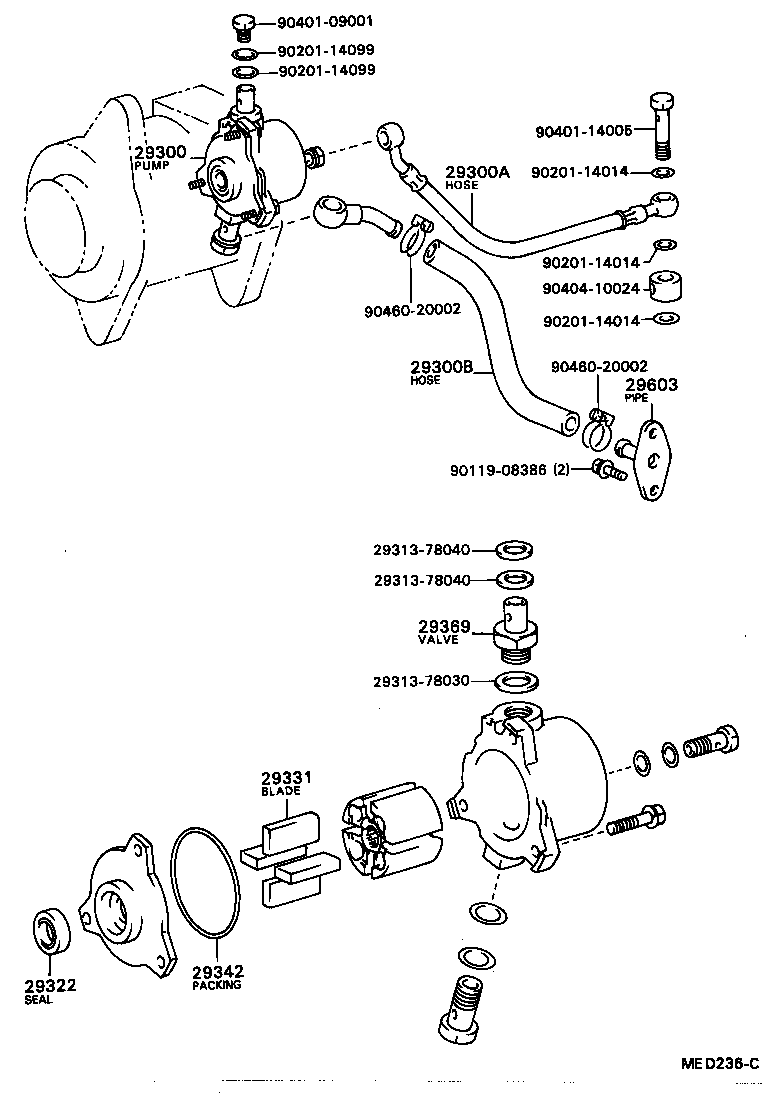

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
29300 - PUMP ASSY, VACUUM
29300-78010	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
29300-78020	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02091	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
90923-02090	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02093	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
90923-02092	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29322 - BUSH, OIL SEAL, VACUUM PUMP
29322-78010	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29331 - BLADE, VACUUM PUMP, A
29331-56010	B,H,2B,3B,2J..BU2#,3#,HU30,JU20	08/1977 - 04/1982	4
29331-78020	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	4
29331-78010	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	4
29342 - PACKING, VACUUM PUMP
29342-78010	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
96740-02063	B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20	08/1977 - 11/1984	2
96740-02063	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
29369 - VALVE SUB-ASSY, CHECK
29369-56070	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
29369-78010	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29603 - PIPE, VACUUM PUMP OIL OUTLET
15773-78010	1W..WU40,50	04/1983 - 08/1984	1
Common parts
29313-78030
29313-78040
90119-08386
90201-14014
90201-14099
90401-09001
90401-14005
90404-10024
90460-20002

(8304-8408)1W

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
29300 - PUMP ASSY, VACUUM
29300-78010	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
29300-78020	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02091	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
90923-02090	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02093	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
90923-02092	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082	B,H,2B,3B,2J..BU2#,3#,HU30,JU20	08/1977 - 04/1982	4
29311-76010	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
29331 - BLADE, VACUUM PUMP, A
29331-56010	B,H,2B,3B,2J..BU2#,3#,HU30,JU20	08/1977 - 04/1982	4
29331-78020	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	4
29331-78010	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	4
29342 - PACKING, VACUUM PUMP
29342-78010	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
96740-02063	B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20	08/1977 - 11/1984	2
96740-02063	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
29369 - VALVE SUB-ASSY, CHECK
29369-56070	1W..WU40,50 ALTERNATOR : 12V 40A	04/1983 - 08/1984	1
29369-78010	1W..WU40..LHD ALTERNATOR : 24V 20A	04/1983 - 08/1984	1
29603 - PIPE, VACUUM PUMP OIL OUTLET
15773-78010	1W..WU40,50	04/1983 - 08/1984	1
Common parts
29313-46010
29364-66010
90099-04577
90119-08386
90201-14014
90201-14099
90401-09001
90401-10006
90401-14005
90404-10024
90430-10004
90460-20002
