WU40L-MRDT (1983)
Toyota Dyna

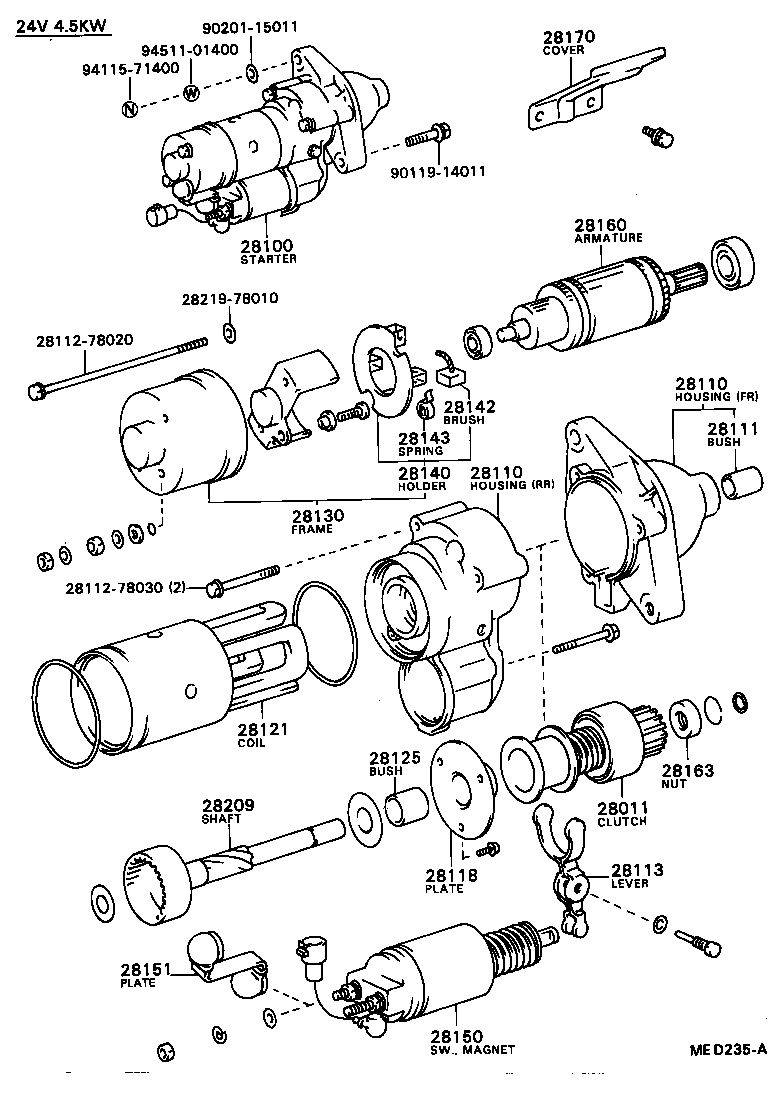

(8304-8408)1W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28011-54010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28100-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28100-78020 |
1W..WU40,50 12V 2.5KW,12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-78030 |
1W..WU40..LHD 24V 4.5KW,FR |
1 | ||
| 28115-78010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28115-78020 |
1W..WU40..LHD 24V 4.5KW,RR |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-78030 |
1W..WU40..LHD 24V 4.5KW,FR |
1 | ||
| 28115-78010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28115-78020 |
1W..WU40..LHD 24V 4.5KW,RR |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28118-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28125 - BUSH, STARTER CENTER BEARING | ||||
| 28125-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-78010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28130-78020 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28140-77090 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-78010 |
1W..WU40..LHD 24V 4.5KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-78010 |
1W..WU40..LHD 24V 4.5KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-78010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28150-78020 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28151 - PLATE, LEAD, SWITCH CONNECTING | ||||
| 28151-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28170 - COVER ASSY, STARTER | ||||
| 28170-78020 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28209 - SHAFT SUB-ASSY, STARTER | ||||
| 28209-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| Common parts | ||||
| 28112-78020 | ||||
| 28112-78030 | ||||
| 28219-78010 | ||||
| 90119-14011 | ||||
| 90201-15011 | ||||
| 94115-71400 | ||||
| 94511-01400 | ||||
(8304-8408)1W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28011-54010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW W/EDIC |
1 | ||
| 28100-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28100-78020 |
1W..WU40,50 12V 2.5KW,12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-78030 |
1W..WU40..LHD 24V 4.5KW,FR |
1 | ||
| 28115-78010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28115-78020 |
1W..WU40..LHD 24V 4.5KW,RR |
1 | ||
| 28115-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28118-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-77090 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28119-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-78010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28130-56030 |
B,2B,3B..BU2#,3#,40 12V 2.5KW,24V 4.5KW |
1 | ||
| 28130-78020 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 90099-02205 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28140-77090 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28140-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-78010 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28150-78020 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28150-56040 |
B,2B,3B..BU2#,3#,40..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-78010 |
1W..WU40..LHD 24V 4.5KW |
1 | ||
| 28160-47040 |
B,H,2B,3B,2H,1W..BU2#,3#,40,HU30,40,50,WU40,50..ARL,GEN,GHI 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
1W..WU40,50 12V 2.5KW,NO.1 |
1 | ||
| 90099-10107 |
1W..WU40,50 12V 2.5KW,NO.2 |
1 | ||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
1W..WU40,50 12V 2.5KW,NO.1 |
1 | ||
| 90099-10107 |
1W..WU40,50 12V 2.5KW,NO.2 |
1 | ||
| 90099-10107 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.2 |
1 | ||
| 90099-10119 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28165-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28222-77090 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
1W..WU40,50 12V 2.5KW |
5 | ||
| 28228-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
6 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28229-56080 |
1W..WU40,50 12V 2.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 2.5KW,24V 4.5KW |
1 | ||
| 28254-77090 |
1W..WU40,50 12V 2.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-14011 | ||||
| 90201-15011 | ||||
| 94115-71400 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
