WU40L-MRDT (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)1W

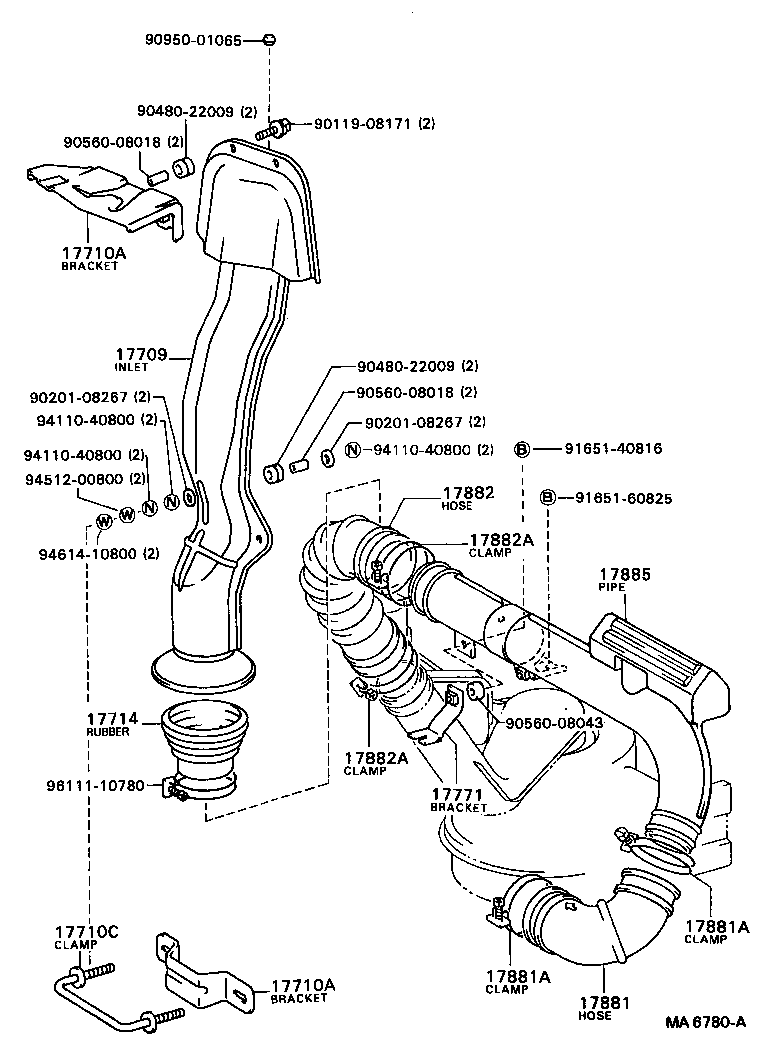

Click highlighted areas on diagram

diagram 17709 17710A 17710A 17710C 17714 17771 17881 17881A 17881A 17882 17882A 17882A 17885 9011908171 9020108267 9020108267 9048022009 9048022009 9056008018 9056008018 9056008043 9095001065 9165140816 9165160825 9411040800 9411040800 9411040800 9451200800 9461410800 9611110780
Part # Description Qty Price
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-78010

1W..WU40,50

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-56040

B,2B,3B..BU20,3#..EUR,GEN

 1
17881-78010

1W..WU40,50

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B,2B,3B..BU20,3#

ID=67

 1
96111-10780

B,2B,3B..BU20,3#

ID=78

 1
96111-10780

1W..WU40,50

INTAKE MANIFOLD SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10670

B,2B,3B..BU20,3#

ID=67

 1
96111-10780

B,2B,3B..BU20,3#

ID=78

 1
96111-10780

1W..WU40,50

INTAKE MANIFOLD SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-56050

B,2B,3B..BU20,3#..LHD

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

B,2B,3B..BU20,3#

ID=78

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

B,2B,3B..BU20,3#

ID=78

 2
17885 - PIPE, AIR CLEANER
17885-78010

1W..WU40,50

 1
Common parts
90119-08171
90201-08267
90480-22009
90560-08018
90560-08043
90950-01065
91651-40816
91651-60825
94110-40800
94512-00800
94614-10800
96111-10780
