WU40L-MRDT (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)1W

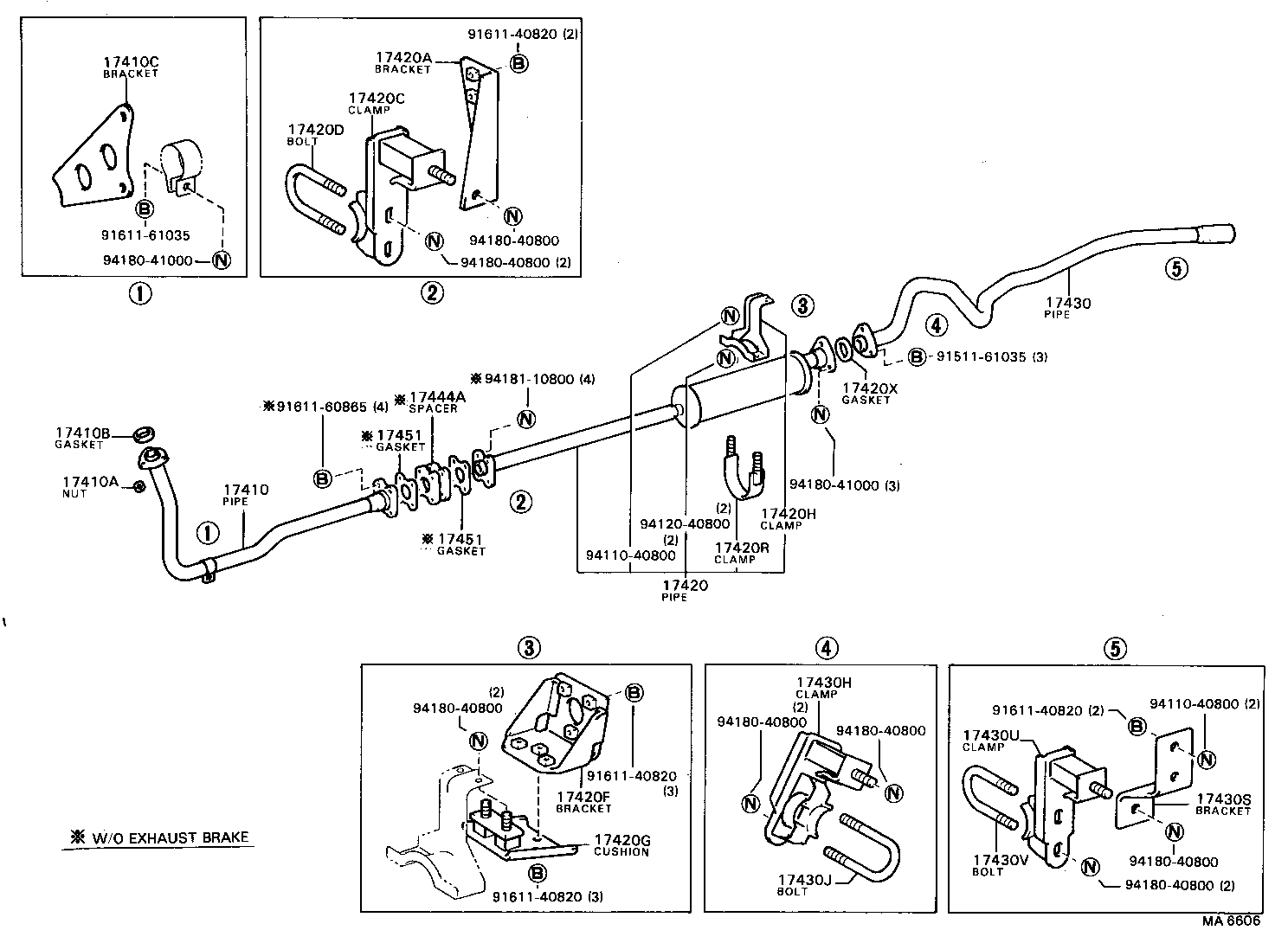

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420A 17420C 17420D 17420F 17420G 17420H 17420R 17420X 17430 17430H 17430J 17430S 17430U 17430V 17444A 17451 17451 9151161035 9161140820 9161140820 9161140820 9161140820 9161160865 9161161035 9411040800 9411040800 9412040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9418041000 9418110800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78010

1W..WU40,50

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-78010

1W..WU40,50

 1
Common parts
91511-61035
91611-40820
91611-60865
91611-61035
94110-40800
94120-40800
94180-40800
94180-41000
94181-10800
