WU40L-MRDT (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)1W

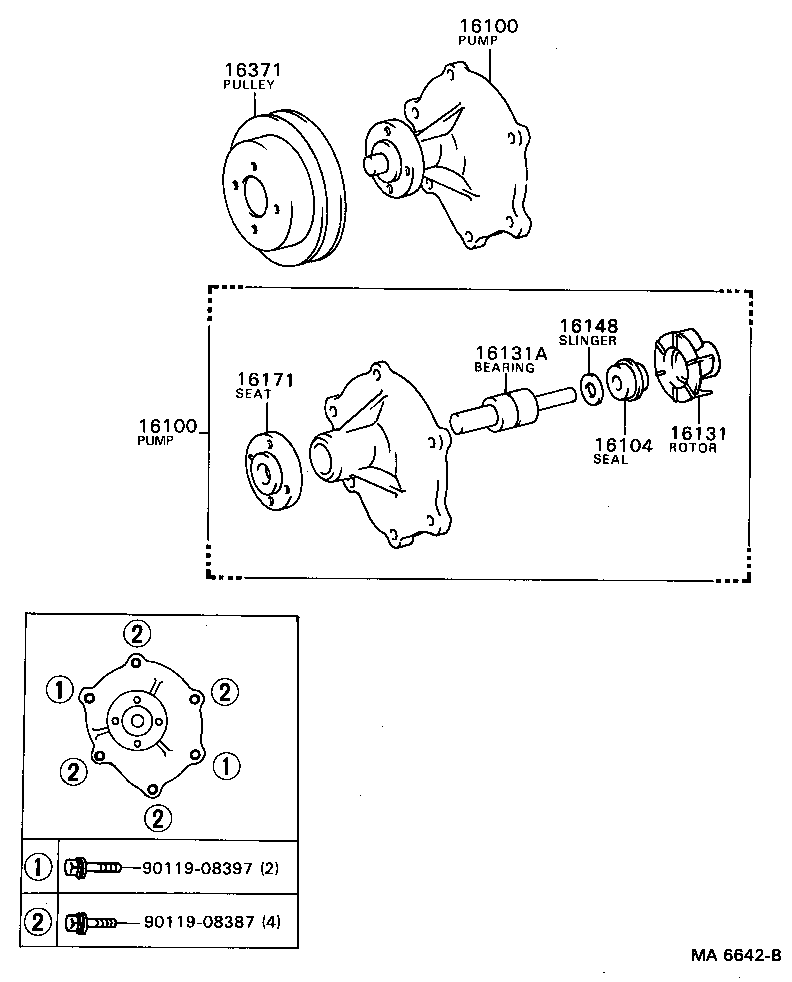

Click highlighted areas on diagram

diagram 16100 16100 16104 16131 16131A 16148 16171 16371 9011908387 9011908397
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-78010

1W..WU40,50

 1
16100 - PUMP ASSY, ENGINE WATER
16100-78010

1W..WU40,50

 1
16104 - SEAL SET, WATER PUMP
16104-78010

1W..WU40,50

 1
16131 - ROTOR, WATER PUMP
16131-78010

1W..WU40,50

 1
16131-56030

B,2B,3B..BU2#,3#

 1
16131A - BEARING, WATER PUMP
90369-30050

1W..WU40,50

 1
90369-30028

B,2B,3B..BU2#,3#,40

WPB16112-2RS

 1
16148 - SLINGER, WATER PUMP
16148-78010

1W..WU40,50

 1
16171 - SEAT, WATER PUMP PULLEY
16171-78010

1W..WU40,50

 1
16171-56010

B,2B,3B..BU2#,3#

 1
16371 - PULLEY, FAN
16173-78010

1W..WU40,50

 1
Common parts
90119-08387
90119-08397
