WU40L-MRDT (1983)
Toyota Dyna
Production
Apr 1983
-
Aug 1984
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8304-8408)1W

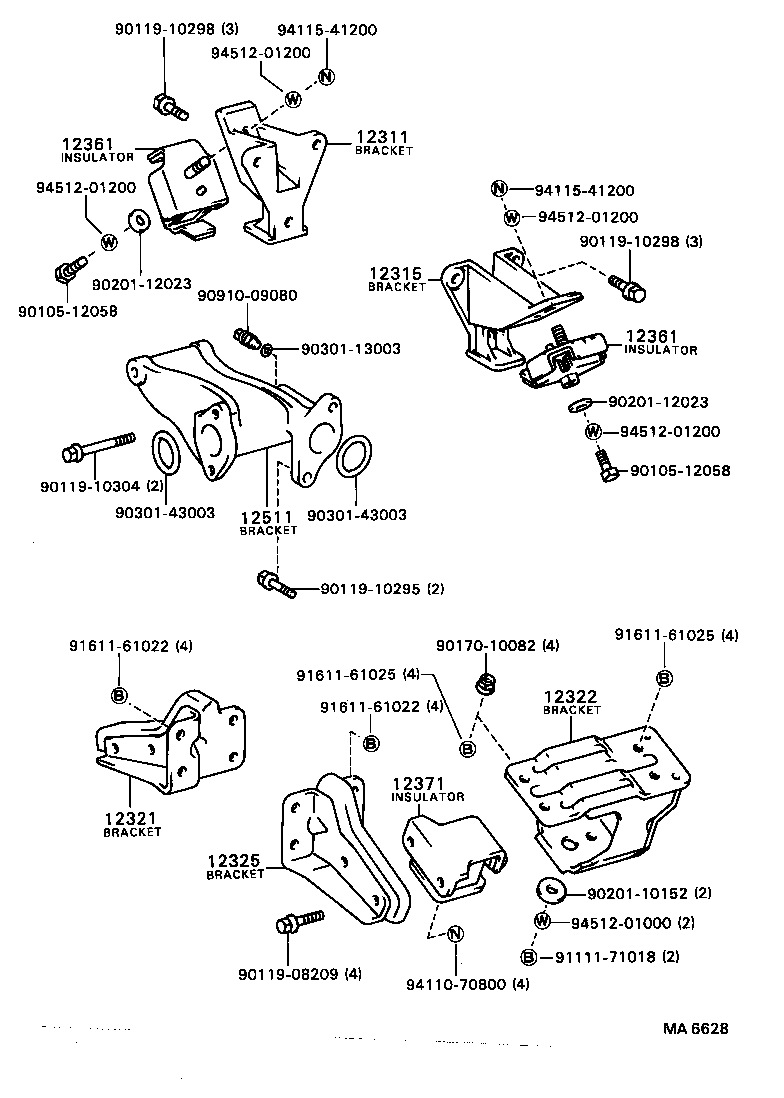

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78010 |
1W..WU40,50 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12311-78010 |
1W..WU40,50 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-56031 |
1W..WU40,50 |
1 | ||
| 12321-56031 |
B,2B,3B..BU20,23,3#,40 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-56021 |
B,2B,3B..BU20,23,3#,40 |
1 | ||
| 12325-56021 |
1W..WU40,50 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78010 |
1W..WU40,50 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78010 |
1W..WU40,50 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-78010 |
1W..WU40,50 |
1 | ||
| Common parts | ||||
| 90105-12058 | ||||
| 90119-08209 | ||||
| 90119-10295 | ||||
| 90119-10298 | ||||
| 90119-10304 | ||||
| 90170-10082 | ||||
| 90201-10152 | ||||
| 90201-12023 | ||||
| 90301-13003 | ||||
| 90301-43003 | ||||
| 90910-09080 | ||||
| 91111-71018 | ||||
| 91611-61022 | ||||
| 91611-61025 | ||||
| 94110-70800 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
