WU40L-MRDT (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)1W

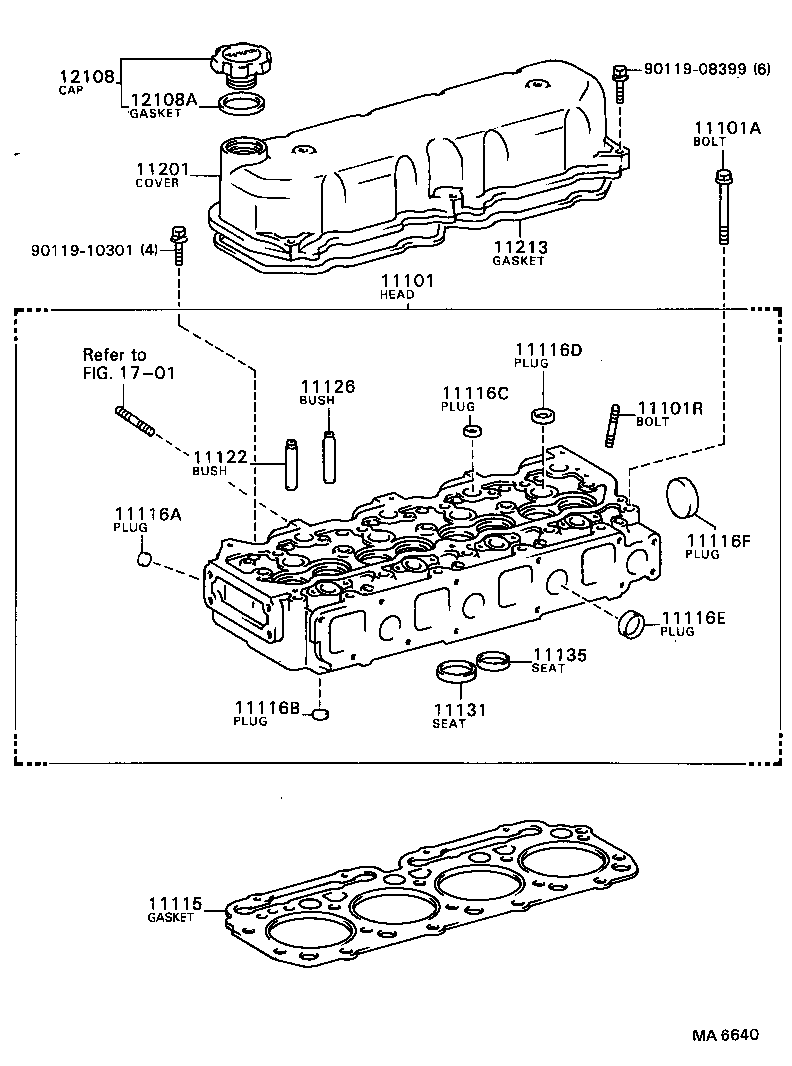

Click highlighted areas on diagram

diagram 11101 11101A 11101R 11115 11116A 11116B 11116C 11116D 11116E 11116F 11122 11126 11131 11135 11201 11213 12108 12108A 1701 9011908399 9011910301
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11110-78020

1W..WU40,50

 1
11110-78010

1W..WU40..LHD

24V

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12073

1W..WU40,50

*12-1.5PX118-27

 13
90910-02046

B,2B,3B..BU2#,3#,40

*12-1.25PX119-25

 18
11101R - BOLT, STUD(FOR FUEL PIPE)
90116-10077

1W..WU40,50

 8
11115 - GASKET, CYLINDER HEAD
11115-78010

1W..WU40,50

 1
11116A - PLUG, TIGHT, NO.1
90331-14005

1W..WU40,50

OD=14

 4
11116B - PLUG, TIGHT, NO.2
90331-22001

1W..WU40,50

OD=22

 4
96411-12500

B,2B,3B..BU2#,3#,40

OD=25

 4
11116C - PLUG, TIGHT, NO.3
90331-24001

1W..WU40,50

OD=24

 4
11116D - PLUG, TIGHT, NO.4
90331-26001

1W..WU40,50

OD=26

 4
96411-12800

B,2B,3B..BU2#,3#,40

OD=28

 3
11116E - PLUG, TIGHT, NO.5
90331-30001

1W..WU40,50

OD=30

 4
90331-40024

B,2B,3B..BU2#,3#,40

OD=40

 1
11116F - PLUG, TIGHT, NO.6
90331-50002

1W..WU40,50

OD=50

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56020

B,2B,3B..BU2#,3#,40

STD

 4
11122-78010

1W..WU40,50

STD,STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-78010

1W..WU40,50

STD,STD

 4
11122-56020

B,2B,3B..BU2#,3#,40

STD

 4
11131 - SEAT, INTAKE VALVE
11131-78010

1W..WU40,50

STD

 4
11135 - SEAT, EXHAUST VALVE
11135-78010

1W..WU40,50

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-78010

1W..WU40,50

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-78010

1W..WU40,50

 1
Common parts
90119-08399
90119-10301
Linked diagrams
1701
