WU342R-TRMLHD8 (2017)

Toyota Dyna

Production Aug 2017 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )W04D..WU302,342..BUSC

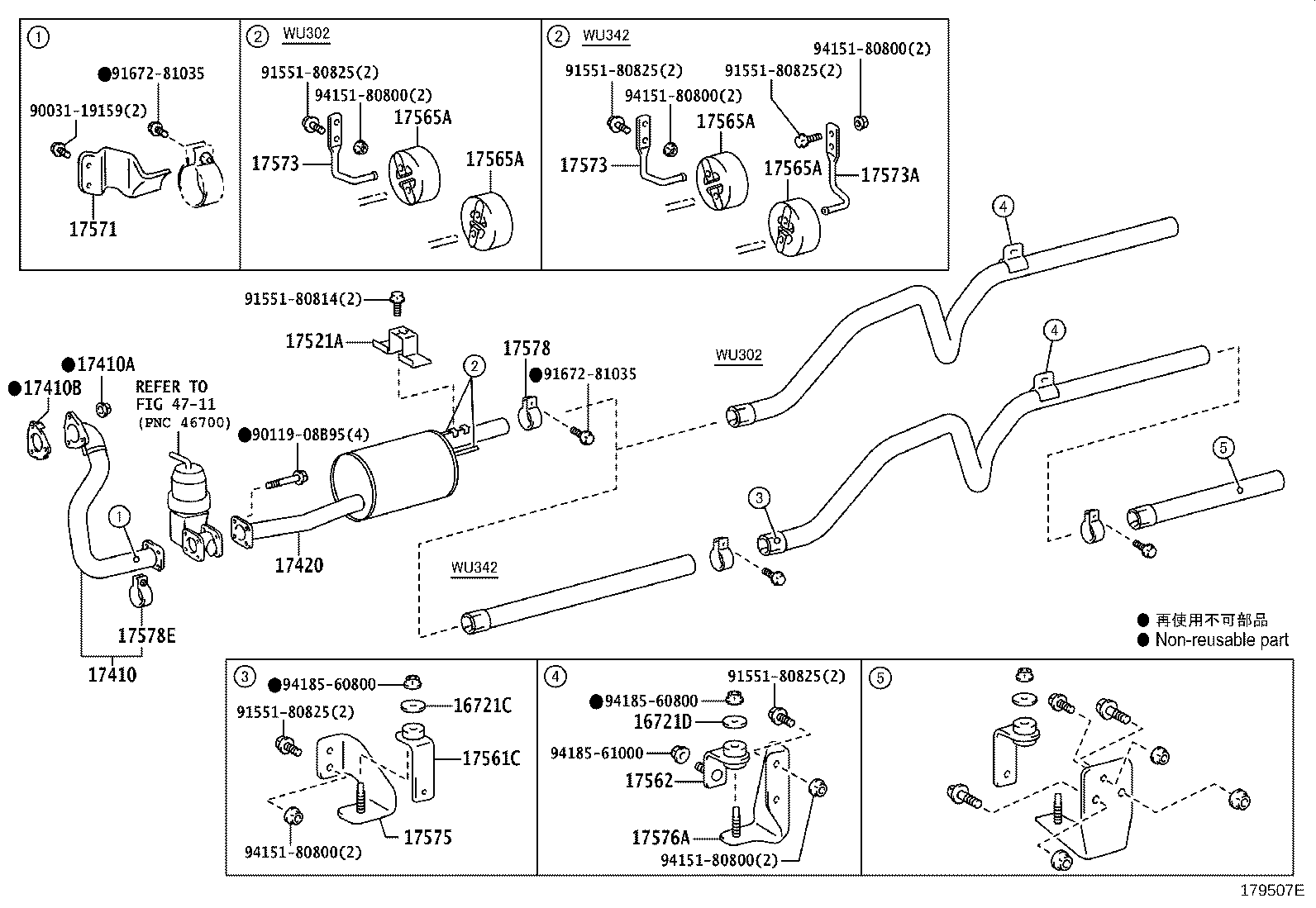

Click highlighted areas on diagram

diagram 16721C 16721D 17410 17410A 17410B 17420 17521A 17561C 17562 17565A 17565A 17565A 17565A 17571 17573 17573 17573A 17575 17576A 17578 17578E 4711 9003119159 9011908B95 9155180814 9155180825 9155180825 9155180825 9155180825 9155180825 9167281035 9167281035 9415180800 9415180800 9415180800 9415180800 9415180800 9418560800 9418560800 9418561000
Part # Description Qty Price
16721C - PLATE, HOLDER, NO.1
16721-78010

W04D..WU342..BUSC

 1
16721D - PLATE, HOLDER, NO.2
16721-78010

W04D..WU302,342..BUSC

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-0U020

W04D..WU302,342..BUSC

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-0U010

W04D..WU302,342..BUSC

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-0U020

W04D..WU342..BUSC

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17561-0U010

W04D..WU302,342..BUSC

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17573-0U040

W04D..WU342..BUSC

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17575-0U010

W04D..WU302,342..BUSC

 1
17578 - CLAMP, PIPE
17578-0U010

W04D..WU342..BUSC

 1
Common parts
90031-19159
90119-08B95
91551-80814
91551-80825
91672-81035
94151-80800
94185-60800
94185-61000
Linked diagrams
4711
