WU342R-TKMTJD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

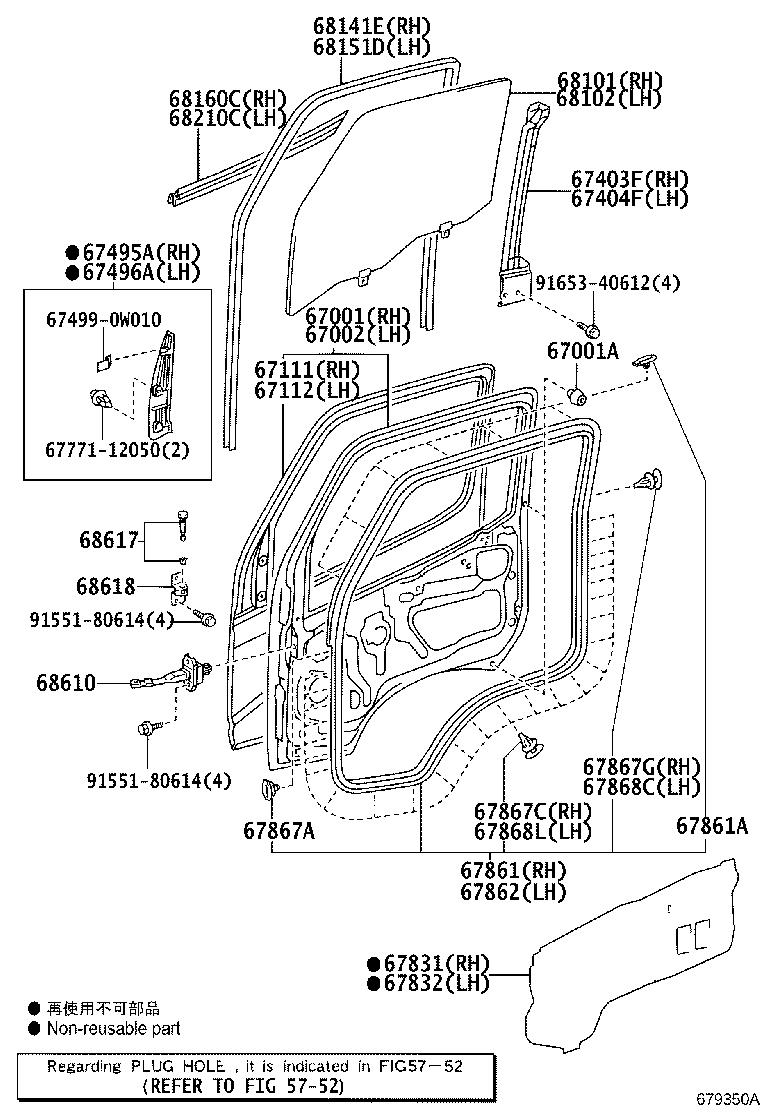

ILLUST NO. 1 OF 2(0912- )DCRTP,DCRTR

Click highlighted areas on diagram

DOOR PANEL

diagram 5752 67001 67001A 67002 67111 67112 67403F 67404F 67495A 67496A 674990W010 6777112050 67831 67832 67861 67861A 67862 67867A 67867C 67867G 67868C 67868L 68101 68102 68141E 68151D 68160C 68210C 68610 68617 68618 9155180614 9155180614 9165340612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0W010

WU302,342..DCRTP,DCRTR

 1
67001-F1010

WU302,342,352

 1
67001-F1010

WU302,342,352

 1
67001-0W010

WU302,342,352

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09031

WU302,342,352..DCRTP,DCRTR

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0W010

WU302,342..DCRTP,DCRTR

 1
67002-0W010

WU302,342,352

 1
67002-F1010

WU302,342,352

 1
67002-F1010

WU302,342,352

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-37150

WU302,342,352..DCRTP,DCRTR

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-37170

WU302,342,352..DCRTP,DCRTR

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0W020

WU302,342,352..DCRTP,DCRTR

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0W020

WU302,342,352..DCRTP,DCRTR

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-0W020

WU302,342,352..DCRTP,DCRTR

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-0W020

WU302,342,352..DCRTP,DCRTR

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-0W020

WU302,342,352..DCRTP,DCRTR

W/O(SPEAKER)

 1
67831-0W040

WU302,342,352..DCRTP,DCRTR

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-0W010

WU302,342,352..DCRTP,DCRTR

W/O(SPEAKER)

 1
67832-0W020

WU302,342,352..DCRTP,DCRTR

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0W040

WU302,342,352..DCRTP,DCRTR

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-32060

WU302,342,352..DCRTP,DCRTR

 12
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0W040

WU302,342,352..DCRTP,DCRTR

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67868-0B010

WU302,342,352..DCRTP,DCRTR

RH

 1
67867-0B010

WU302,342,352..DCRTP,DCRTR

LH

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-0B010

WU302,342,352..DCRTP,DCRTR

 26
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-0B010

WU302,342,352..DCRTP,DCRTR

 1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-0B010

WU302,342,352..DCRTP,DCRTR

 1
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-0B010

WU302,342,352..DCRTP,DCRTR

 26
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-0W050

WU302,342,352..DCRTP,DCRTR

*TEM,T=3.2,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-0W050

WU302,342,352..DCRTP,DCRTR

*TEM,T=3.2,GREEN

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-0W010

WU302,342,352..DCRTP,DCRTR

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-0W010

WU302,342,352..DCRTP,DCRTR

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-0W010

WU302,342,352..DCRTP,DCRTR

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-0W010

WU302,342,352..DCRTP,DCRTR

 1
68610 - CHECK ASSY, FRONT DOOR
68610-0W010

WU302,342,352..DCRTP,DCRTR

 2
68617 - PIN, FRONT DOOR CHECK
68617-90K00

WU302,342,352..DCRTP,DCRTR

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-0W010

WU302,342,352..DCRTP,DCRTR

 2
Common parts
67499-0W010
67771-12050
91551-80614
91653-40612
Linked diagrams
5752
