WU342R-TKMTJD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )W04D..WU302,352..IDN ; (0912- )W04D..WU342..DCRTP,DCRTR

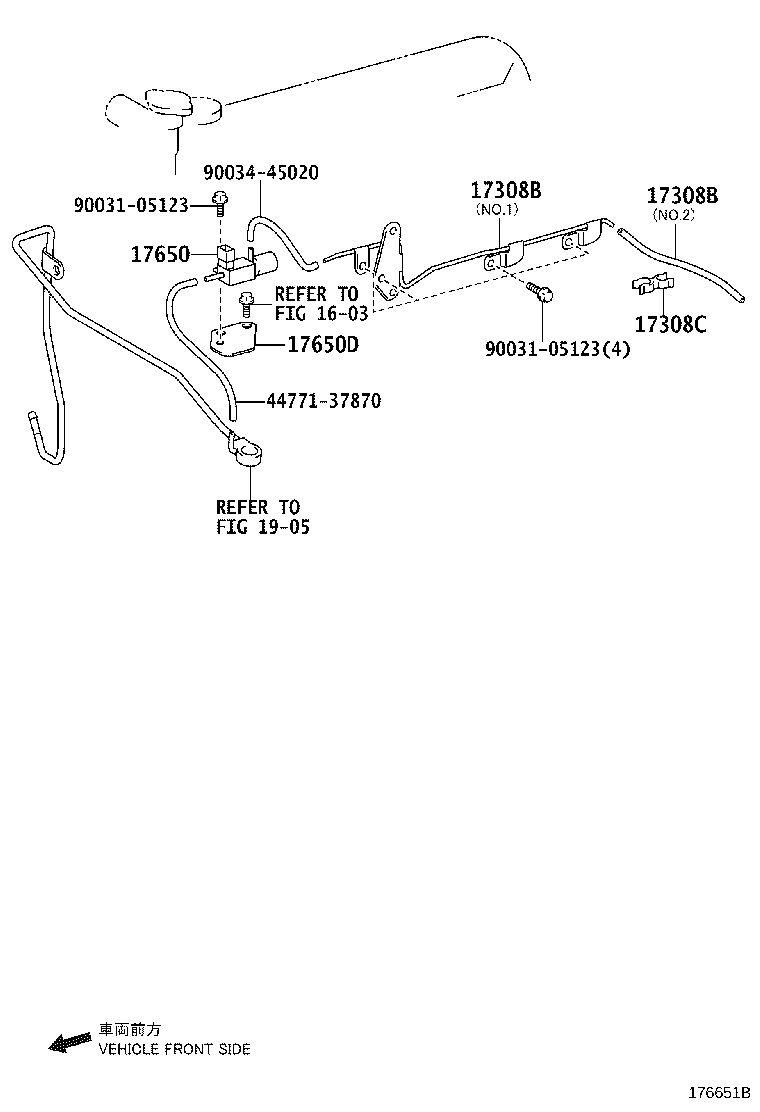

Click highlighted areas on diagram

diagram 1603 17308B 17308B 17308C 17650 17650D 1905 4477137870 9003105123 9003105123 9003445020
Part # Description Qty Price
17308B - HOSE SUB-ASSY, VACUUM
17308-78090

W04D..WU302,342,352..DCRTP,DCRTR

NO.1

 1
90034-45025

W04D..WU302,342..DCRTP,DCRTR

NO.2

 1
90445-08264

W04D..WU302,342,352..DCRTP,DCRTR

NO.2

 1
17308B - HOSE SUB-ASSY, VACUUM
17308-78090

W04D..WU302,342,352..DCRTP,DCRTR

NO.1

 1
90034-45025

W04D..WU302,342..DCRTP,DCRTR

NO.2

 1
90445-08264

W04D..WU302,342,352..DCRTP,DCRTR

NO.2

 1
17308C - CLAMP(FOR VACUUM HOSE)
47371-37130

W04D..WU302,342,352..DCRTP,DCRTR

 1
17650 - VALVE ASSY, VACUUM SWITCHING
27690-78120

W04D..WU302,342..DCRTP,DCRTR

 1
27690-E0250

W04D..WU302,342,352

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
25861-78071

W04D..WU302,342,352..(DCRTP,DCRTR)..(T3,VBODY)

 1
Common parts
44771-37870
90031-05123
90034-45020
Linked diagrams
1603
1905
