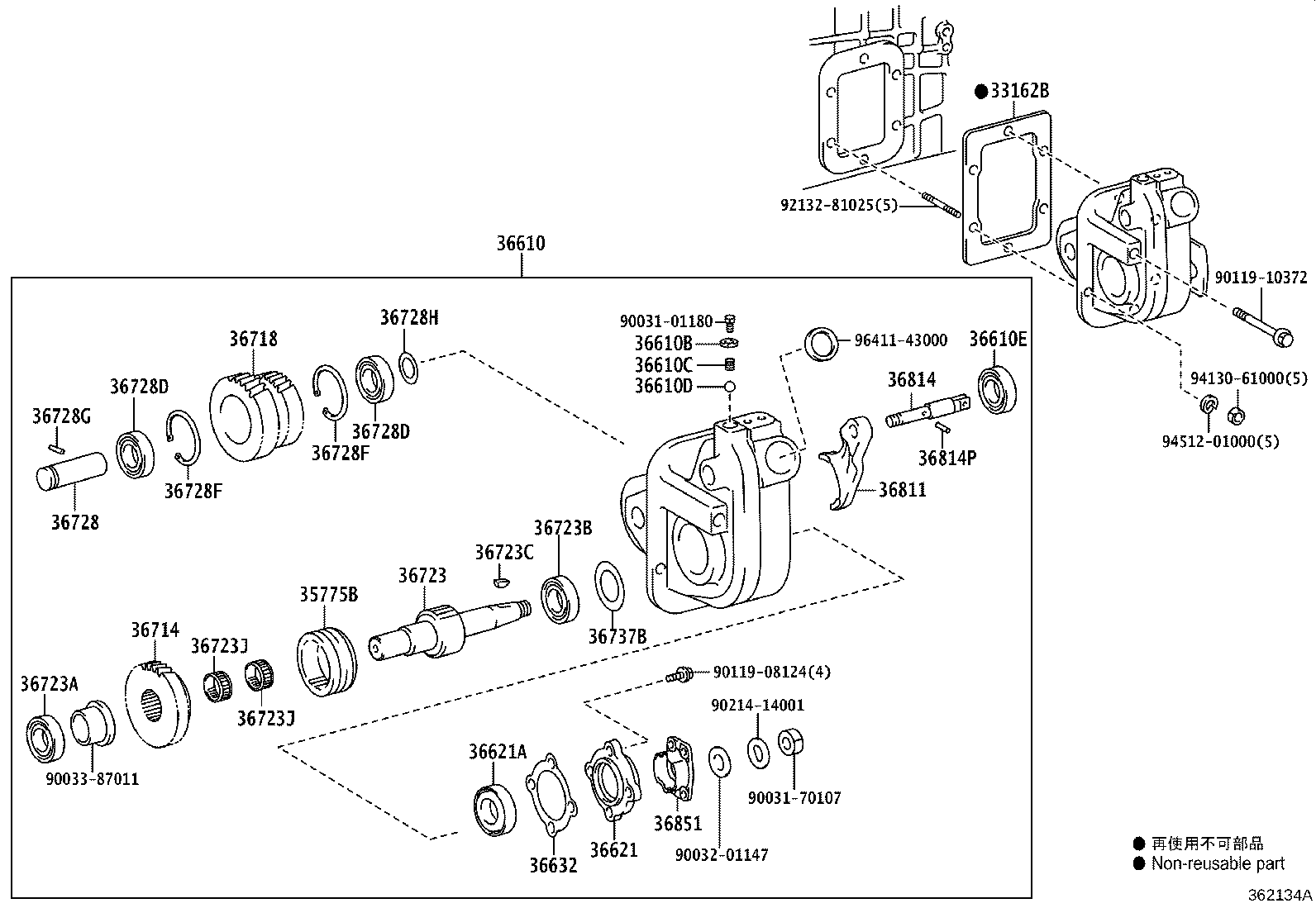

WU342R-TKMRJD3 (2009)
Toyota Dyna
(1612- )DCRTR
MANUAL LEVER TYPE 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
WU342,352..DCRTR |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37030 |
WU342,352..DCRTR |
1 | ||
| 35775-37031 |
WU342,352..DCRTR |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37520 |
WU342,352..DCRTR |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12004 |
WU342,352..DCRTR T=2 |
1 | ||
| 90430-12006 |
WU342,352..DCRTR T=1 |
1 | ||
| 90430-12001 |
WU342,352..DCRTR T=0.5 |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90035-01053 |
WU342,352..DCRTR |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
WU342,352..DCRTR |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
WU342,352..DCRTR |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37080 |
WU342,352..DCRTR |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
WU342,352..DCRTR |
1 | ||
| 36632 - GASKET, POWER TAKE-OFF JOINT RETAINER | ||||
| 36632-37030 |
WU342,352..DCRTR |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37240 |
WU342..DCRTR |
1 | ||
| 36714-37241 |
WU342,352..DCRTR |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37160 |
WU342..DCRTR |
1 | ||
| 36718-37161 |
WU342,352..DCRTR |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37140 |
WU342,352..DCRTR |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
WU342,352..DCRTR |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
WU342,352..DCRTR T=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
WU342,352..DCRTR |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU342,352..DCRTR |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
WU342,352..DCRTR |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
WU342,352..DCRTR |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
WU342,352..DCRTR |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25011 |
WU342,352..DCRTR |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU342,352..DCRTR |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
WU342,352..DCRTR |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
WU342,352..DCRTR |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
WU342,352..DCRTR T=0.05 |
1 | ||
| 90564-25002 |
WU342,352..DCRTR T=0.1 |
1 | ||
| 90564-25003 |
WU342,352..DCRTR T=0.2 |
1 | ||
| 90564-25004 |
WU342,352..DCRTR T=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
WU342,352..DCRTR T=0.07-0.13 |
1 | ||
| 90564-42003 |
WU342,352..DCRTR T=0.17-0.23 |
1 | ||
| 90564-42001 |
WU342,352..DCRTR T=0.02-0.08 |
1 | ||
| 90564-42004 |
WU342,352..DCRTR T=0.47-0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37030 |
WU342,352..DCRTR |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
WU342,352..DCRTR |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
WU342,352..DCRTR |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
WU342,352..DCRTR |
1 | ||
| Common parts | ||||
| 90031-01180 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90033-87011 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90214-14001 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
