WU342R-TKMRJD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )DCRTP,DCRTR

Click highlighted areas on diagram

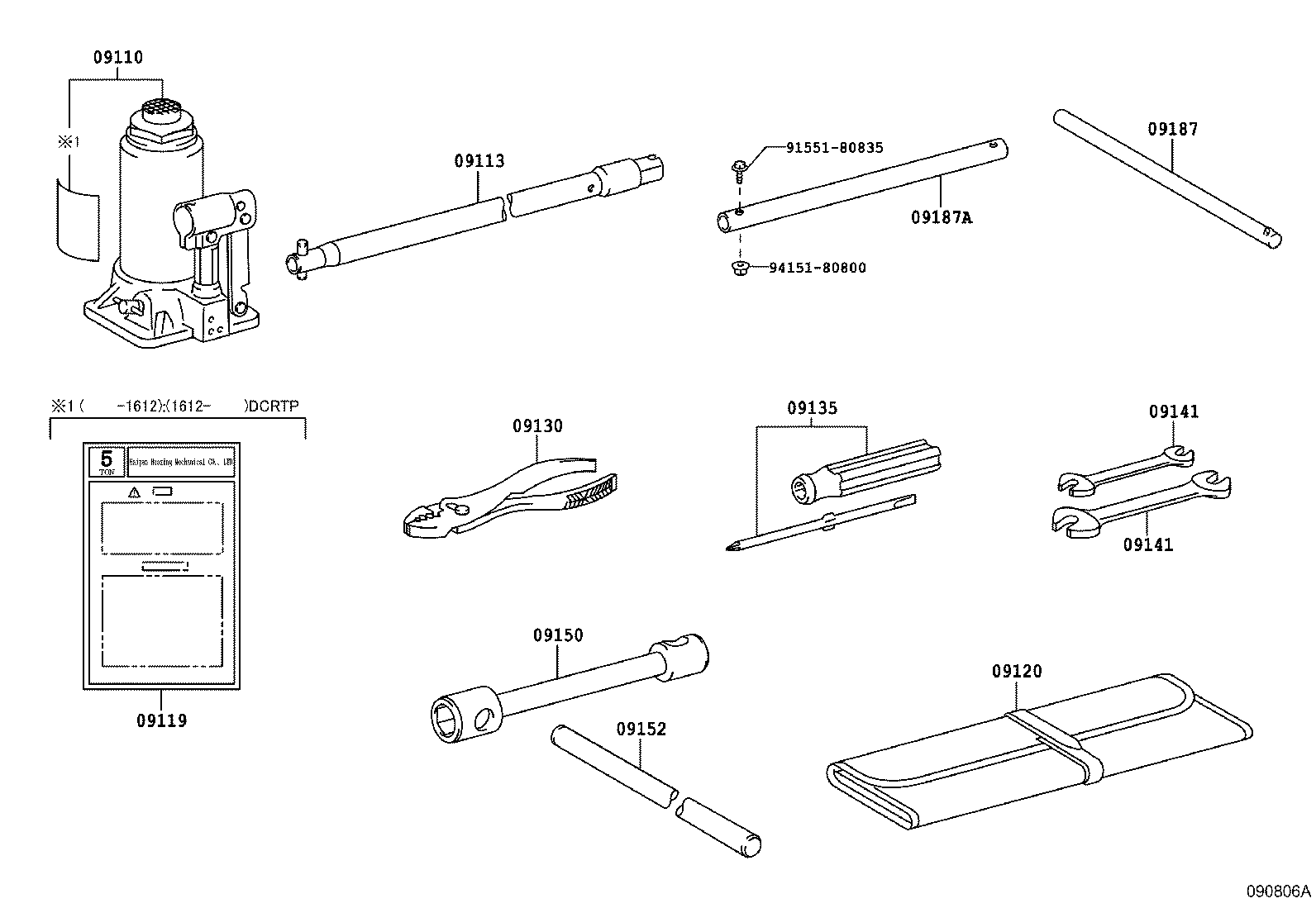

diagram 09110 09113 09119 09120 09130 09135 09141 09141 09150 09152 09187 09187A 9155180835 9415180800
Part # Description Qty Price
09110 - JACK ASSY
09111-0W120

WU342..DCRTR

 1
09111-F1010

WU342,352..DCRTR

 1
09113 - HANDLE, JACK
09113-0W030

WU302,342,352..DCRTP,DCRTR

 1
09119 - LABEL, JACK CAUTION
09119-0W120

WU342..DCRTR

 1
09120 - BAG, TOOL
09120-0S010

WU302,342,352..DCRTP,DCRTR

 1
09130 - PLIERS
09130-36010

WU302,342,352..DCRTP,DCRTR

 1
09135 - DRIVER, SCREW
09135-36010

WU302,342,352..DCRTP,DCRTR

 1
09141 - SPANNER
09141-0W020

WU302,342,352..DCRTP,DCRTR

14 X 17

 1
09141-0W010

WU302,342,352..DCRTP,DCRTR

10 X 12

 1
09141 - SPANNER
09141-0W020

WU302,342,352..DCRTP,DCRTR

14 X 17

 1
09141-0W010

WU302,342,352..DCRTP,DCRTR

10 X 12

 1
09150 - WRENCH, HUB NUT BOX
09151-36051

WU342,352..WT..(DCRTP,DCRTR)

 1
09152 - HANDLE, HUB NUT BOX WRENCH
09152-36020

WU342,352..WT..(DCRTP,DCRTR)

 1
09187 - HANDLE, SPARE WHEEL CARRIER
09187-0W030

WU302,342,352..DCRTP,DCRTR

 1
Common parts
91551-80835
94151-80800
