WU342R-TKMRHD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )DCRTP,DCRTR

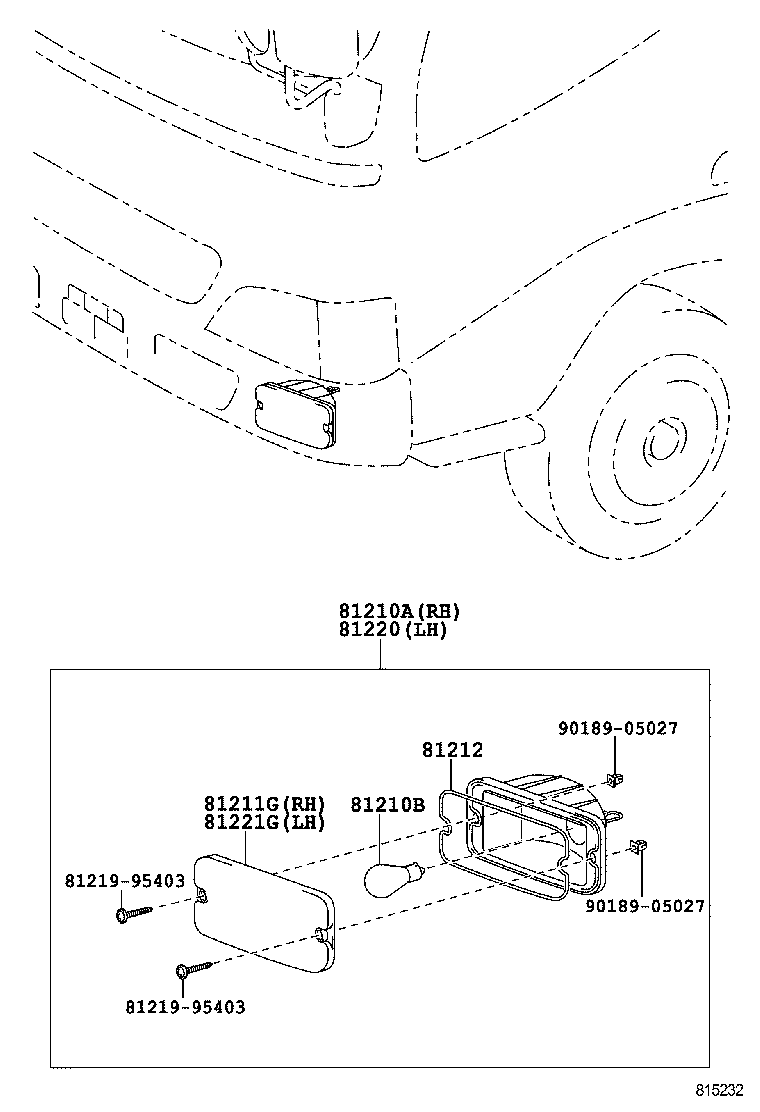

Click highlighted areas on diagram

diagram 81210A 81210B 81211G 81212 8121995403 8121995403 81220 81221G 9018905027 9018905027
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-39155

WU302,342,352..DCRTP,DCRTR

 1
81210B - BULB, FOG LAMP
90981-13029

WU302,342,352..DCRTP,DCRTR

12V 35W

 2
81211G - LENS, FOG LAMP, RH
81211-95403

WU302,342,352..DCRTP,DCRTR

 1
81212 - GASKET, FOG LAMP LENS
81212-95403

WU302,342,352..DCRTP,DCRTR

 2
81220 - LAMP ASSY, FOG, LH
81220-39095

WU302,342,352..DCRTP,DCRTR

 1
81221G - LENS, FOG LAMP, LH
81221-95403

WU302,342,352..DCRTP,DCRTR

 1
Common parts
81219-95403
90189-05027
