WU342R-TKMRHD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

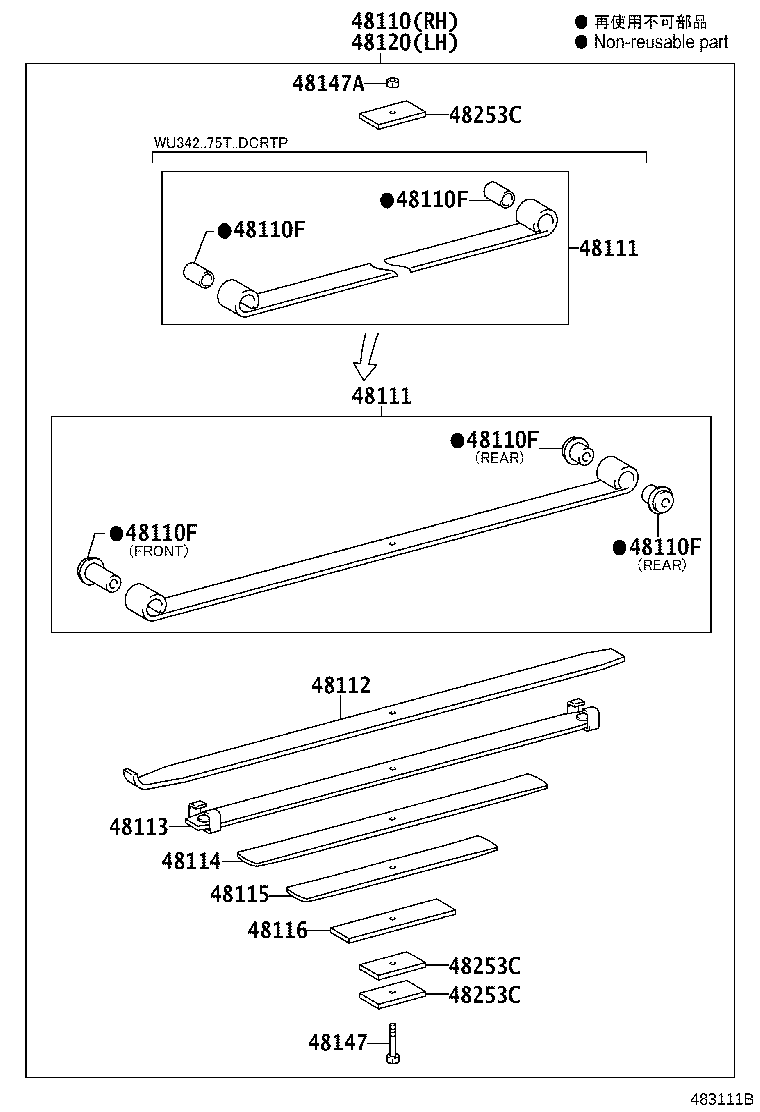

ILLUST NO. 2 OF 2(0912- )65T,75T..DCRTP,DCRTR

Click highlighted areas on diagram

6-LEAF

diagram 48110 48110F 48110F 48110F 48110F 48110F 48111 48111 48112 48113 48114 48115 48116 48120 48147 48147A 48253C 48253C 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-0W250

WU342..75T..DCRTP

6-LEAF

 1
48110-F1050

WU342..75T..DCRTP

7-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90384-28009

WU342..75T..DCRTP

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90384-28009

WU342..75T..DCRTP

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90384-28009

WU342..75T..DCRTP

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90384-28009

WU342..75T..DCRTP

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90384-28009

WU342..75T..DCRTP

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48101-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48101-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48101-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48111 - LEAF, FRONT SPRING, NO.1
48101-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48101-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48101-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48101-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48112-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48112-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48112-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48102-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48113-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48113-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48114-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48114-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48102-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48115-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48115-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48115-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48116-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48116-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48116-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-0W260

WU342..75T..DCRTP

6-LEAF

 1
48110-F1060

WU342..75T..DCRTP

7-LEAF

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37B60

WU342,352..(65T,75T)..(DCRTP,DCRTR)

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

WU342,352..(65T,75T)..(DCRTP,DCRTR)

 2
48253C - SPACER, FRONT LEAF SPRING, NO.2
48253-3B770

WU342..75T..DCRTP

6-LEAF

 6
48253-3B770

WU342..75T..DCRTP

7-LEAF

 4
48253C - SPACER, FRONT LEAF SPRING, NO.2
48253-3B770

WU342..75T..DCRTP

6-LEAF

 6
48253-3B770

WU342..75T..DCRTP

7-LEAF

 4
48253C - SPACER, FRONT LEAF SPRING, NO.2
48253-3B770

WU342..75T..DCRTP

6-LEAF

 6
48253-3B770

WU342..75T..DCRTP

7-LEAF

 4

ILLUST NO. 1 OF 2(0912- )WU342..75T..DCRTR ; (0912- )WU342..48T,65T..DCRTP..T3 ; (0912- )WU

Click highlighted areas on diagram

W/O(FRONT STABILIZER)

diagram 48042A 48042B 48042B 48191 48304 48422 48505A 48505A 48510 48510A 48510A 48510B 48510B 48510C 48510C 48510D 48510E 48510N 48510N 48520 48520C 48520C 48522 9010516067 9010516067 9010516067 90105T0393 90105T0393 90105T0393 9017016016 9017016016 9017016016 9017816004 9020116035 9020116035 9020116035 91651B0820 9413061000 9413061000 9413061200 9413061600 9453101200 9453101600
Part # Description Qty Price
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-0W030

WU342..75T..DCRTP

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-36030

WU302,342,352..DCRTP,DCRTR

 2
48505A - BOLT, U(FOR FRONT SPRING)
90080-11533

WU342,352..WT..(DCRTP,DCRTR)

L=160

 4
48505A - BOLT, U(FOR FRONT SPRING)
90080-11533

WU342,352..WT..(DCRTP,DCRTR)

L=160

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-09180

WU342,352..WT..(DCRTP,DCRTR)

MARK 48511-0W030

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

WU302,342,352..DCRTP,DCRTR

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

WU302,342,352..DCRTP,DCRTR

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-T2001

WU302,342,352..DCRTP,DCRTR

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-T2001

WU302,342,352..DCRTP,DCRTR

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

WU302,342,352..DCRTP,DCRTR

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

WU302,342,352..DCRTP,DCRTR

 4
48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
90948-03003

WU302,342,352..DCRTP,DCRTR

 2
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03004

WU302,342,352..DCRTP,DCRTR

 2
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-09180

WU342,352..WT..(DCRTP,DCRTR)

MARK 48511-0W030

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48522-0W010

WU302,342,352..DCRTP,DCRTR

 2
Common parts
90105-16067
90105-T0393
90170-16016
90178-16004
90201-16035
91651-B0820
94130-61000
94130-61200
94130-61600
94531-01200
94531-01600

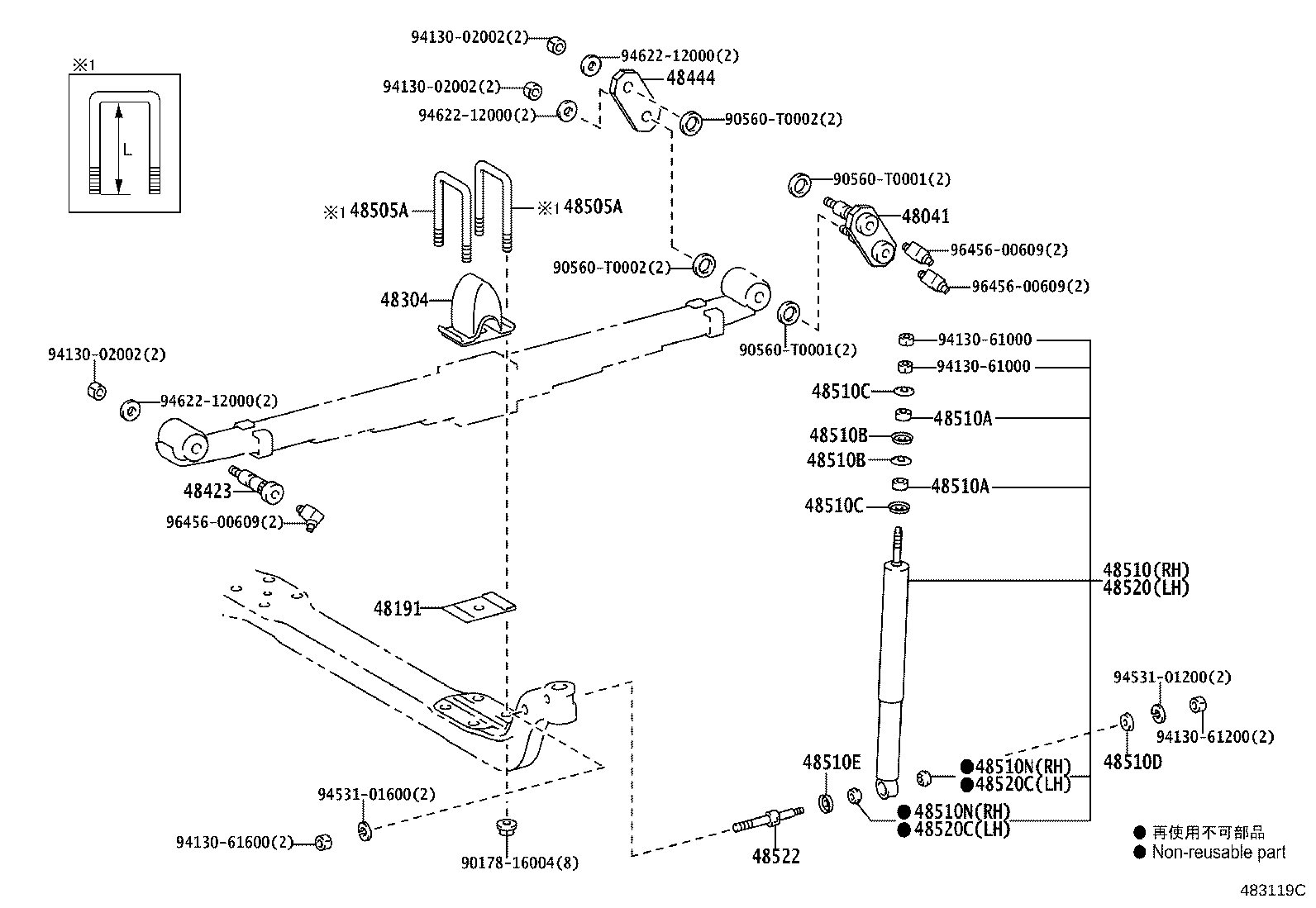

ILLUST NO. 1 OF 2(0912- )85T ; (0912- )75T..DCRTP

Click highlighted areas on diagram

diagram 48041 48191 48304 48423 48444 48505A 48505A 48510 48510A 48510A 48510B 48510B 48510C 48510C 48510D 48510E 48510N 48510N 48520 48520C 48520C 48522 9017816004 90560T0001 90560T0001 90560T0002 90560T0002 9413002002 9413002002 9413002002 9413061000 9413061000 9413061200 9413061600 9453101200 9453101600 9462212000 9462212000 9462212000 9645600609 9645600609 9645600609
Part # Description Qty Price
48041 - SHACKLE SUB-ASSY, FRONT SPRING, NO.1
48041-0W020

WU342..75T..DCRTP

 2
48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING)
48191-0W030

WU342..75T..DCRTP

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-36030

WU302,342,352..DCRTP,DCRTR

 2
48423 - PIN, FRONT SPRING BRACKET
48423-0W010

WU342,352..85T;WU342..75T..DCRTP

 2
48444 - PLATE, FRONT SPRING SHACKLE, INNER
48444-0W020

WU342..75T..DCRTP

 2
48505A - BOLT, U(FOR FRONT SPRING)
90080-11533

WU342,352..WT..(DCRTP,DCRTR)

L=160

 4
48505A - BOLT, U(FOR FRONT SPRING)
90080-11533

WU342,352..WT..(DCRTP,DCRTR)

L=160

 4
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-09180

WU342,352..WT..(DCRTP,DCRTR)

MARK 48511-0W030

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

WU302,342,352..DCRTP,DCRTR

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

WU302,342,352..DCRTP,DCRTR

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-T2001

WU302,342,352..DCRTP,DCRTR

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-T2001

WU302,342,352..DCRTP,DCRTR

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

WU302,342,352..DCRTP,DCRTR

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

WU302,342,352..DCRTP,DCRTR

 4
48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
90948-03003

WU302,342,352..DCRTP,DCRTR

 2
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03004

WU302,342,352..DCRTP,DCRTR

 2
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-09180

WU342,352..WT..(DCRTP,DCRTR)

MARK 48511-0W030

 1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90385-T0006

WU302,342,352..DCRTP,DCRTR

 2
48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48522-0W010

WU302,342,352..DCRTP,DCRTR

 2
Common parts
90178-16004
90560-T0001
90560-T0002
94130-02002
94130-61000
94130-61200
94130-61600
94531-01200
94531-01600
94622-12000
96456-00609

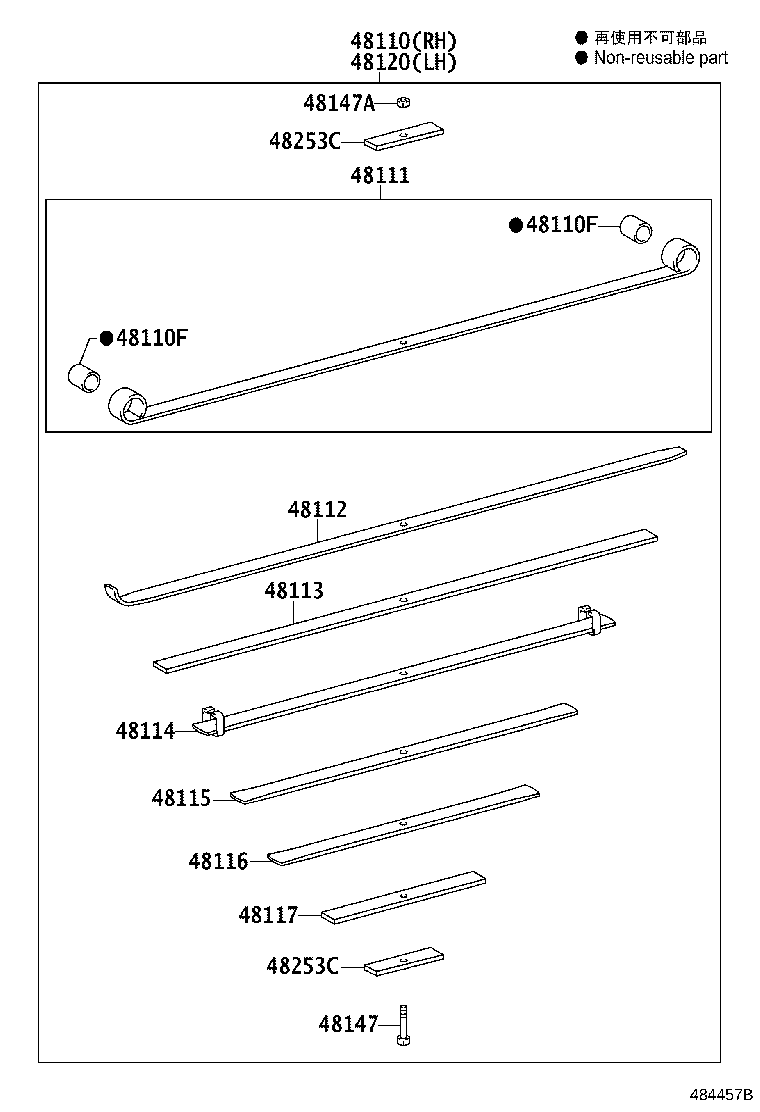

ILLUST NO. 2 OF 2(1707- )75T..DCRTP

Click highlighted areas on diagram

7-LEAF

diagram 48110 48110F 48110F 48111 48112 48113 48114 48115 48116 48117 48120 48147 48147A 48253C 48253C
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-0W250

WU342..75T..DCRTP

6-LEAF

 1
48110-F1050

WU342..75T..DCRTP

7-LEAF

 1
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90384-28009

WU342..75T..DCRTP

 4
48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING)
90384-28009

WU342..75T..DCRTP

 4
48111 - LEAF, FRONT SPRING, NO.1
48101-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48101-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48101-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48101-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48112 - LEAF, FRONT SPRING, NO.2
48112-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48112-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48112-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48112-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48113 - LEAF, FRONT SPRING, NO.3
48102-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48102-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48113-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48113-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48114 - LEAF, FRONT SPRING, NO.4
48102-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48114-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48114-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48102-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48115 - LEAF, FRONT SPRING, NO.5
48115-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48115-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48115-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48115-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48116 - LEAF, FRONT SPRING, NO.6
48116-F1060

WU342..75T..DCRTP

7-LEAF,PASSENGER SIDE

 1
48116-F1050

WU342..75T..DCRTP

7-LEAF,DRIVER SIDE

 1
48116-0W250

WU342..75T..DCRTP

6-LEAF,DRIVER SIDE

 1
48116-0W260

WU342..75T..DCRTP

6-LEAF,PASSENGER SIDE

 1
48117 - LEAF, FRONT SPRING, NO.7
48117-F1060

WU342..75T..DCRTP

PASSENGER SIDE

 1
48117-F1050

WU342..75T..DCRTP

DRIVER SIDE

 1
48120 - SPRING ASSY, FRONT, LH
48110-0W260

WU342..75T..DCRTP

6-LEAF

 1
48110-F1060

WU342..75T..DCRTP

7-LEAF

 1
48147 - BOLT, FRONT SPRING, CENTER
48147-37B60

WU342,352..(65T,75T)..(DCRTP,DCRTR)

 2
48147A - NUT, FRONT SPRING CENTER BOLT
48284-37130

WU342,352..(65T,75T)..(DCRTP,DCRTR)

 2
48253C - SPACER, FRONT LEAF SPRING, NO.2
48253-3B770

WU342..75T..DCRTP

6-LEAF

 6
48253-3B770

WU342..75T..DCRTP

7-LEAF

 4
48253C - SPACER, FRONT LEAF SPRING, NO.2
48253-3B770

WU342..75T..DCRTP

6-LEAF

 6
48253-3B770

WU342..75T..DCRTP

7-LEAF

 4
