Toyota Dyna WU342 AIR CLEANER - JDM Part Detective

WU342R-TKMRHD3 (2009)

Toyota Dyna

Production Dec 2009 - Sep 9999

Engine W04D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

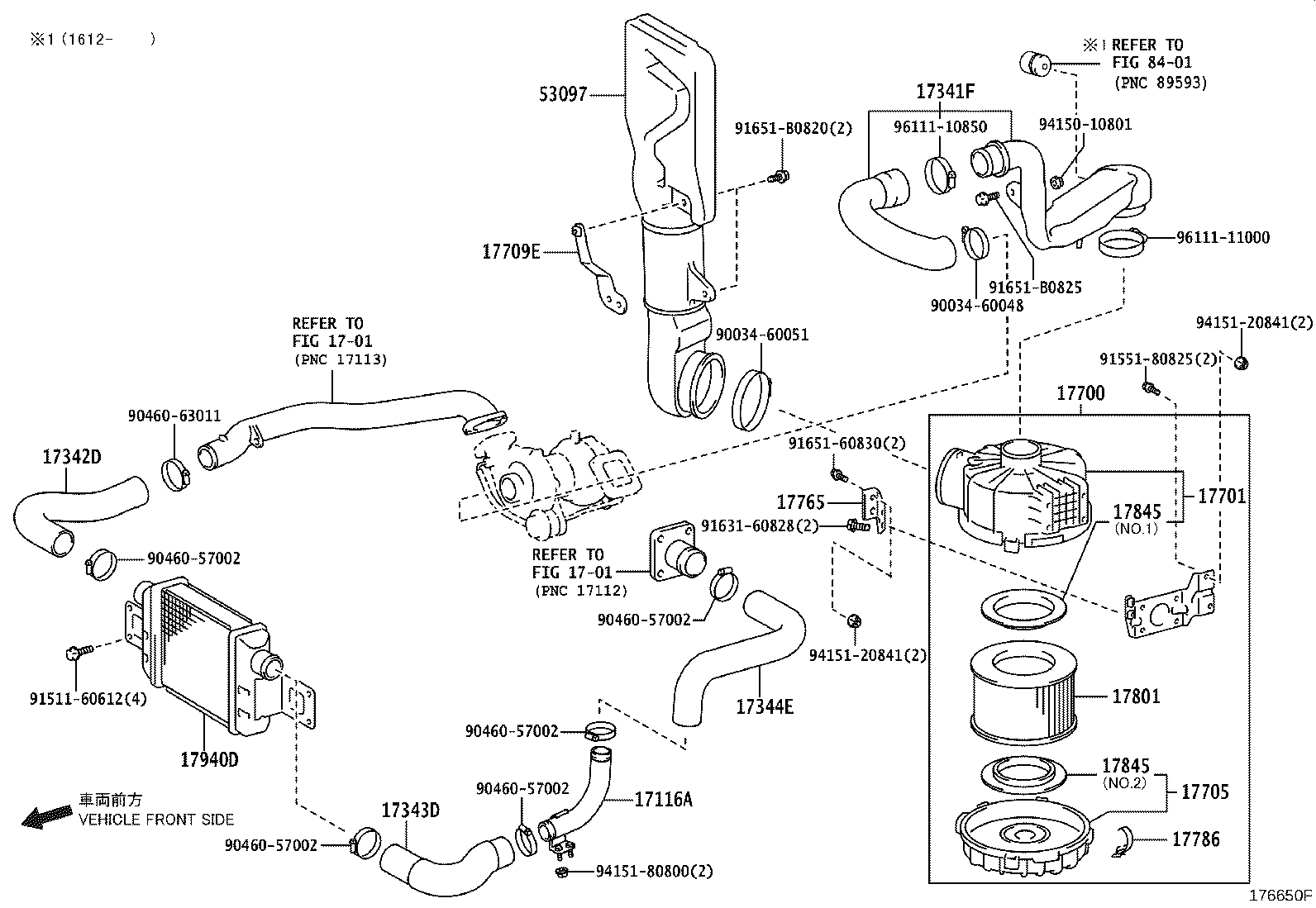

(1101- )W04D..WU302,342,352..IDN

Click highlighted areas on diagram

Part #	Description	Period	Qty
17116A - PIPE, INTAKE, NO.3
17116-0W020	W04D..WU302,342,352..DCRTP,DCRTR	12/2009 - 12/2999	1
17341F - HOSE, AIR, NO.1
17030-0U010	W04D..WU302,342,352	06/2017 - 12/2999	1
17030-0W060	W04D..WU302,342..DCRTP,DCRTR NO.1	12/2009 - 12/2016	1
17342D - HOSE, AIR, NO.2
17342-0W020	W04D..WU302,342,352	02/2014 - 12/2999	1
17342-78160	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 01/2014	1
17343D - HOSE, AIR, NO.3
17343-0W030	W04D..WU302,342,352	02/2014 - 12/2999	1
17343-78120	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 01/2014	1
17344E - HOSE, AIR, NO.4
17344-0W020	W04D..WU302,342,352	02/2014 - 12/2999	1
17344-78170	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 01/2014	1
17700 - CLEANER ASSY, AIR
17700-0W070	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 12/2010	1
17700-0W071	W04D..WU302,342,352..IDN	01/2011 - 12/2999	1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0W040	W04D..WU302,342,352..IDN	01/2011 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0W050	W04D..WU302,342,352..IDN	01/2011 - 12/2999	1
17709E - BRACKET, AIR CLEANER INLET, NO.2
53773-0W040	W04D..WU342..85T;W04D..WU342..75T..DCRTP	12/2009 - 12/2016	1
17765 - STAY, AIR CLEANER, NO.1
17765-0W010	W04D..WU302,342,352..DCRTP,DCRTR	12/2009 - 12/2999	1
17786 - CLAMP, AIR CLEANER
17786-0W020	W04D..WU302,342,352..IDN	01/2011 - 12/2999	4
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0W032	W04D..WU302,342,352..IDN	01/2011 - 12/2999	1
17845 - GASKET, AIR CLEANER CAP
17845-0W020	W04D..WU302,342,352..IDN NO.2	01/2011 - 12/2999	1
17845-0W010	W04D..WU302,342,352..IDN NO.1	01/2011 - 12/2999	1
17845 - GASKET, AIR CLEANER CAP
17845-0W020	W04D..WU302,342,352..IDN NO.2	01/2011 - 12/2999	1
17845-0W010	W04D..WU302,342,352..IDN NO.1	01/2011 - 12/2999	1
17940D - INTERCOOLER ASSY
17940-0W010	W04D..WU302,342,352..DCRTP,DCRTR	12/2009 - 12/2999	1
53097 - INLET SUB-ASSY
53097-0W031	WU342..85T;WU342..75T..DCRTP	04/2010 - 12/2016	1
53097-0W030	WU302,342..DCRTP,DCRTR	12/2009 - 03/2010	1
Common parts
90034-60048
90034-60051
90460-57002
90460-63011
91511-60612
91551-80825
91631-60828
91651-60830
91651-B0820
91651-B0825
94150-10801
94151-20841
94151-80800
96111-10850
96111-11000
Linked diagrams
1701
8401

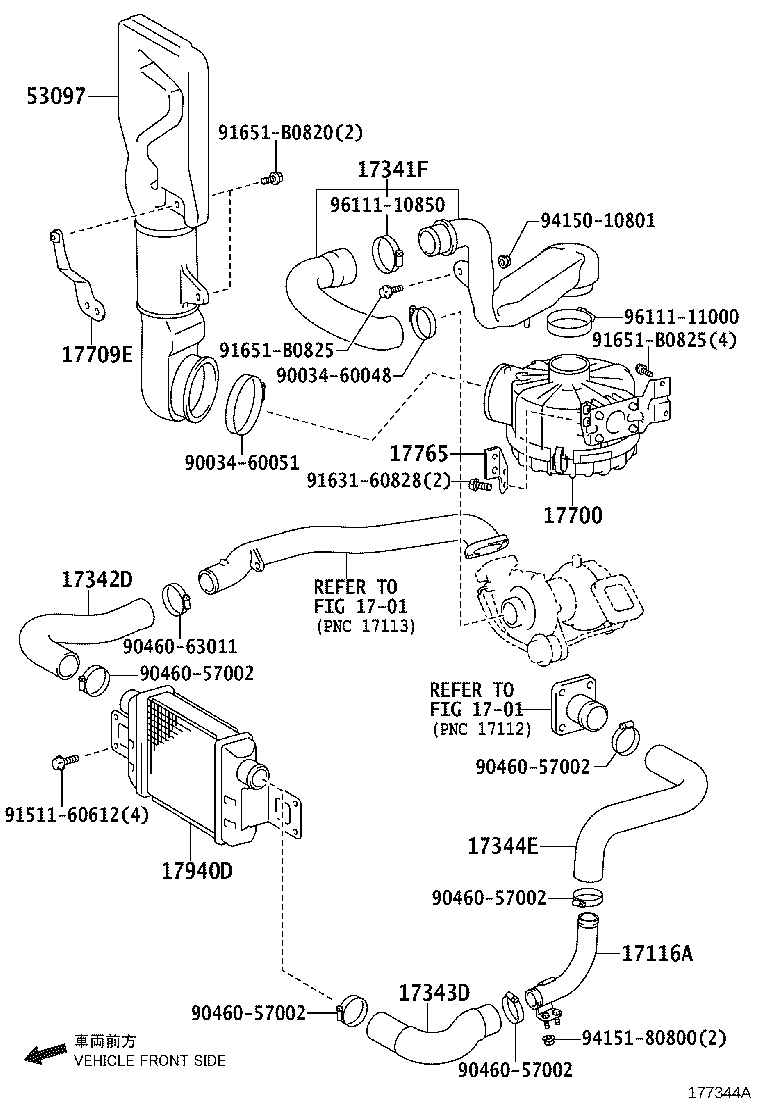

(0912-1012)W04D..WU302,342..IDN

Click highlighted areas on diagram

Part #	Description	Period	Qty
17116A - PIPE, INTAKE, NO.3
17116-0W020	W04D..WU302,342,352..DCRTP,DCRTR	12/2009 - 12/2999	1
17341F - HOSE, AIR, NO.1
17030-0U010	W04D..WU302,342,352	06/2017 - 12/2999	1
17030-0W060	W04D..WU302,342..DCRTP,DCRTR NO.1	12/2009 - 12/2016	1
17342D - HOSE, AIR, NO.2
17342-0W020	W04D..WU302,342,352	02/2014 - 12/2999	1
17342-78160	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 01/2014	1
17343D - HOSE, AIR, NO.3
17343-0W030	W04D..WU302,342,352	02/2014 - 12/2999	1
17343-78120	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 01/2014	1
17344E - HOSE, AIR, NO.4
17344-0W020	W04D..WU302,342,352	02/2014 - 12/2999	1
17344-78170	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 01/2014	1
17700 - CLEANER ASSY, AIR
17700-0W070	W04D..WU302,342..DCRTP,DCRTR	12/2009 - 12/2010	1
17700-0W071	W04D..WU302,342,352..IDN	01/2011 - 12/2999	1
17709E - BRACKET, AIR CLEANER INLET, NO.2
53773-0W040	W04D..WU342..85T;W04D..WU342..75T..DCRTP	12/2009 - 12/2016	1
17765 - STAY, AIR CLEANER, NO.1
17765-0W010	W04D..WU302,342,352..DCRTP,DCRTR	12/2009 - 12/2999	1
17940D - INTERCOOLER ASSY
17940-0W010	W04D..WU302,342,352..DCRTP,DCRTR	12/2009 - 12/2999	1
53097 - INLET SUB-ASSY
53097-0W031	WU342..85T;WU342..75T..DCRTP	04/2010 - 12/2016	1
53097-0W030	WU302,342..DCRTP,DCRTR	12/2009 - 03/2010	1
Common parts
90034-60048
90034-60051
90460-57002
90460-63011
91511-60612
91631-60828
91651-B0820
91651-B0825
94150-10801
94151-80800
96111-10850
96111-11000
Linked diagrams
1701

WU342R-TKMRHD3 (2009)

(1101- )W04D..WU302,342,352..IDN

(0912-1012)W04D..WU302,342..IDN
