WU342R-TKMRHD3 (2009)
Toyota Dyna
(0912- )W04D..WU302,342,352..DCRTP,DCRTR

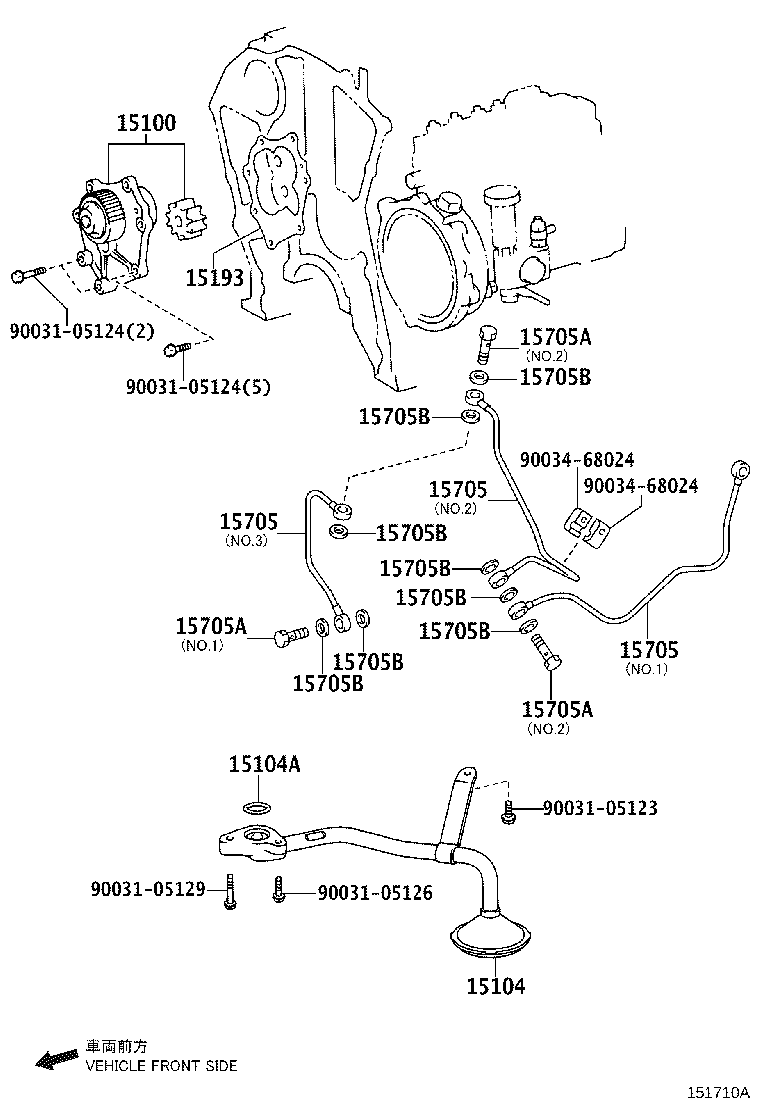

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-78060 |
W04D..WU302,342,352..DCRTP,DCRTR |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15401-78070 |
W04D..WU302,342,352..DCRTP,DCRTR |
1 | ||
| 15104A - RING, O(FOR OIL STRAINER) | ||||
| 90033-01090 |
W04D..WU302,342,352..DCRTP,DCRTR |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| S1511-91121 |
W04D..WU302,342,352 |
1 | ||
| 15193-78010 |
W04D..WU302,342..DCRTP,DCRTR |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 29601-78230 |
W04D..WU302,342,352..DCRTP NO.2 |
1 | ||
| 29601-78240 |
W04D..WU302,342,352..DCRTP NO.3 |
1 | ||
| 15771-78070 |
W04D..WU302,342,352..DCRTP,DCRTR NO.1 |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 29601-78230 |
W04D..WU302,342,352..DCRTP NO.2 |
1 | ||
| 29601-78240 |
W04D..WU302,342,352..DCRTP NO.3 |
1 | ||
| 15771-78070 |
W04D..WU302,342,352..DCRTP,DCRTR NO.1 |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 29601-78230 |
W04D..WU302,342,352..DCRTP NO.2 |
1 | ||
| 29601-78240 |
W04D..WU302,342,352..DCRTP NO.3 |
1 | ||
| 15771-78070 |
W04D..WU302,342,352..DCRTP,DCRTR NO.1 |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU302,342,352..DCRTP,DCRTR NO.1 |
1 | ||
| 90034-01020 |
W04D..WU302,342,352..DCRTP,DCRTR NO.2 |
2 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU302,342,352..DCRTP,DCRTR NO.1 |
1 | ||
| 90034-01020 |
W04D..WU302,342,352..DCRTP,DCRTR NO.2 |
2 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU302,342,352..DCRTP,DCRTR NO.1 |
1 | ||
| 90034-01020 |
W04D..WU302,342,352..DCRTP,DCRTR NO.2 |
2 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90202-10011 |
W04D..WU302,342,352..DCRTP,DCRTR |
8 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05129 | ||||
| 90034-68024 | ||||
