WU342R-TKMRBD3 (2006)

Toyota Dyna

Production Dec 2006 - May 2010
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0612- )DCRTH,DCRTJ..IDN

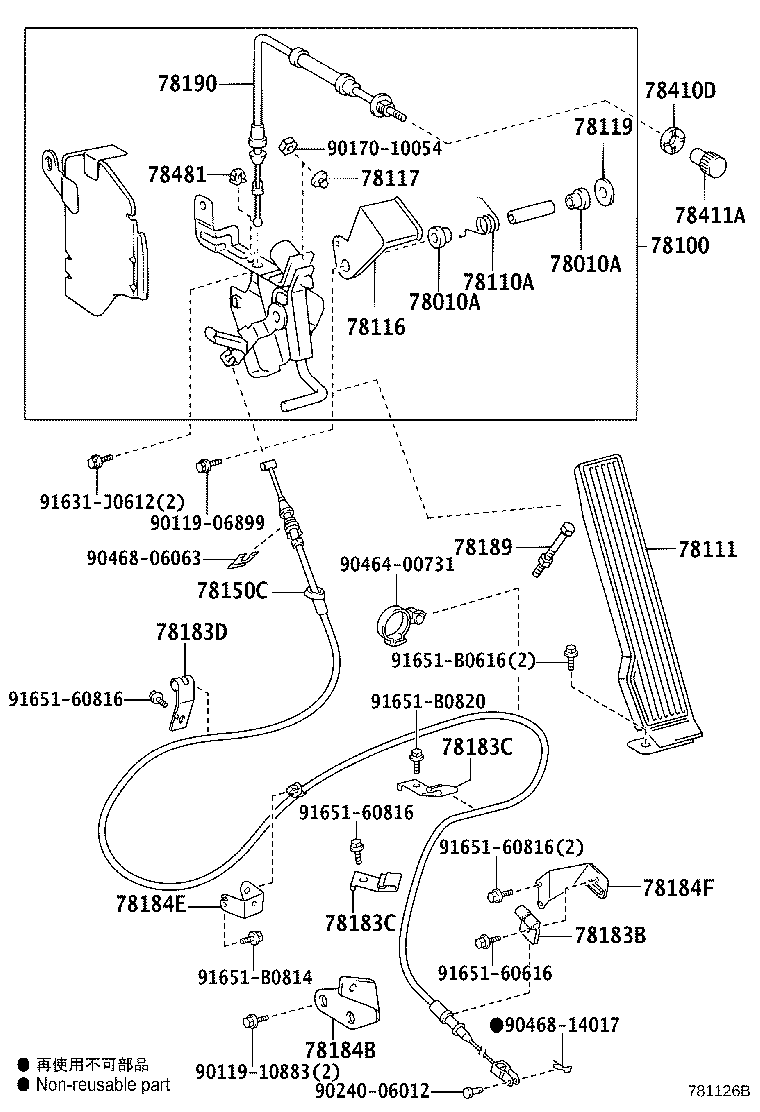

Click highlighted areas on diagram

diagram 78010A 78010A 78100 78110A 78111 78116 78117 78119 78150C 78183B 78183C 78183C 78183D 78184B 78184E 78184F 78189 78190 78410D 78411A 78481 9011906899 9011910883 9017010054 9024006012 9046400731 9046806063 9046814017 91631J0612 9165160616 9165160816 9165160816 9165160816 91651B0616 91651B0814 91651B0820
Part # Description Qty Price
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-0W060

WU302,342..(DCRTH,DCRTJ)..IDN

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-37260

WU302,342..(DCRTH,DCRTJ)..IDN

 2
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-37260

WU302,342..(DCRTH,DCRTJ)..IDN

 2
78183D - CLAMP, ACCELERATOR CONTROL CABLE
78183-37300

WU302,342..(DCRTH,DCRTJ)..IDN

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-0W020

WU302,342..(DCRTH,DCRTJ)..IDN

 1
78184E - BRACKET, ACCELERATOR CONTROL CABLE
78184-0W080

WU302,342..(DCRTH,DCRTJ)..IDN

 1
78184F - BRACKET, ACCELERATOR CONTROL CABLE
78184-0W090

WU302,342..(DCRTH,DCRTJ)..IDN

 1
Common parts
90119-06899
90119-10883
90170-10054
90240-06012
90464-00731
90468-06063
90468-14017
91631-J0612
91651-60616
91651-60816
91651-B0616
91651-B0814
91651-B0820
