WU342R-TKMRBD3 (2006)

Toyota Dyna

Production Dec 2006 - May 2010
Engine W04D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0612- )DCRTH,DCRTJ..IDN

Click highlighted areas on diagram

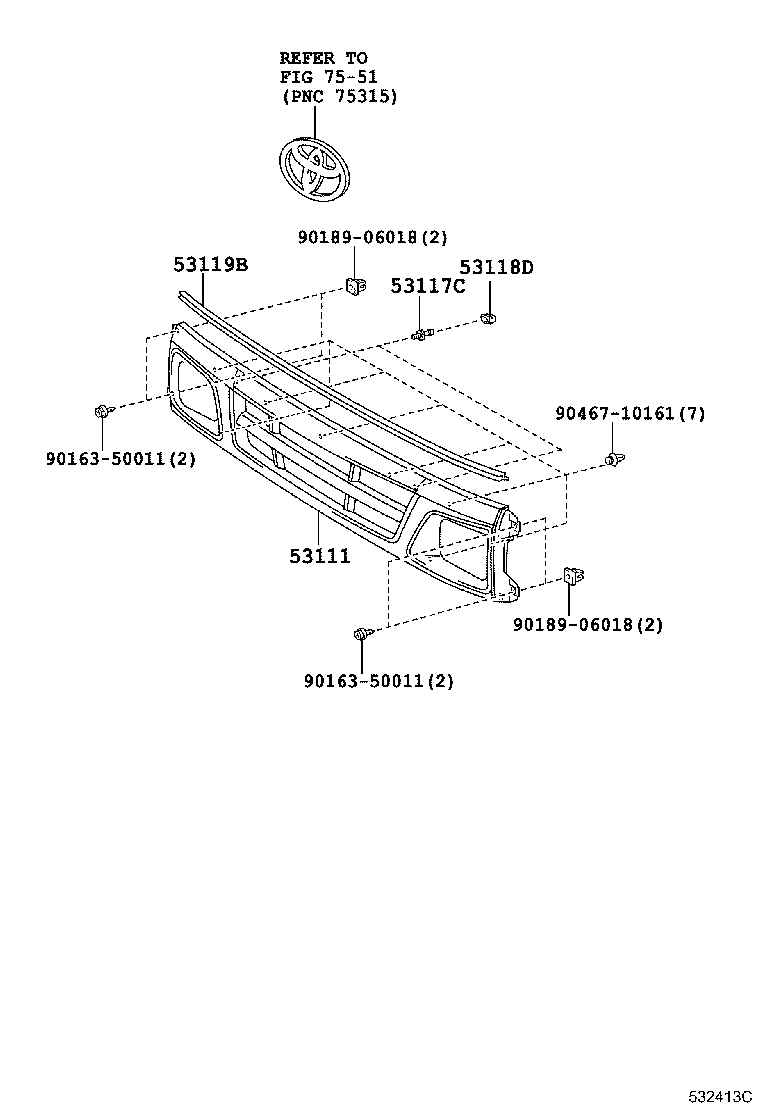

diagram 53111 53117C 53118D 53119B 7551 9016350011 9016350011 9018906018 9018906018 9046710161
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-0W060

WU302,342..(DCRTH,DCRTJ)..IDN

NO PAINT REQ.

 1
53117C - RETAINER, RADIATOR GRILLE, NO.1
53117-37020

WU302,342..(DCRTH,DCRTJ)..IDN

 2
53118D - RETAINER, RADIATOR GRILLE, NO.2
53118-0W020

WU302,342..(DCRTH,DCRTJ)..IDN

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-0W010

WU302,342..(DCRTH,DCRTJ)..IDN

 1
Common parts
90163-50011
90189-06018
90467-10161
Linked diagrams
7551
