WU342R-TKMRBD3 (2006)
Toyota Dyna

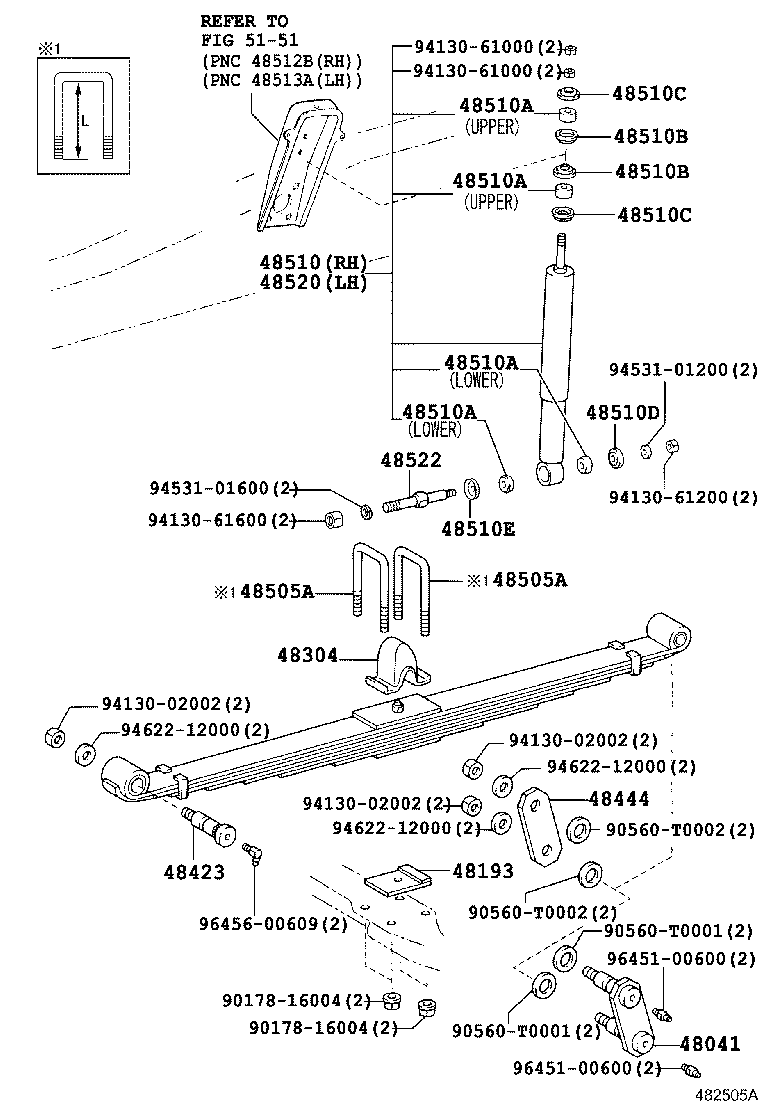

ILLUST NO. 1 OF 2(0612- )75T..DCRTJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48041 - SHACKLE SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48041-0W010 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48193 - WEDGE, CASTER | ||||
| 48193-36010 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36030 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48423 - PIN, FRONT SPRING BRACKET | ||||
| 48423-0W010 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48444 - PLATE, FRONT SPRING SHACKLE, INNER | ||||
| 48444-0W010 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90080-11533 |
WU342..(DCRTH,DCRTJ)..IDN L=160 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90080-11533 |
WU342..(DCRTH,DCRTJ)..IDN L=160 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-09170 |
WU342..(DCRTH,DCRTJ)..IDN MARK 48511-0W030 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-T0006 |
WU302,342..(DCRTH,DCRTJ)..IDN LOWER |
4 | ||
| 90948-01003 |
WU302,342..(DCRTH,DCRTJ)..IDN UPPER |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-T0006 |
WU302,342..(DCRTH,DCRTJ)..IDN LOWER |
4 | ||
| 90948-01003 |
WU302,342..(DCRTH,DCRTJ)..IDN UPPER |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-T0006 |
WU302,342..(DCRTH,DCRTJ)..IDN LOWER |
4 | ||
| 90948-01003 |
WU302,342..(DCRTH,DCRTJ)..IDN UPPER |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-T0006 |
WU302,342..(DCRTH,DCRTJ)..IDN LOWER |
4 | ||
| 90948-01003 |
WU302,342..(DCRTH,DCRTJ)..IDN UPPER |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2001 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2001 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-09170 |
WU342..(DCRTH,DCRTJ)..IDN MARK 48511-0W030 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-0W010 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| Common parts | ||||
| 90178-16004 | ||||
| 90560-T0001 | ||||
| 90560-T0002 | ||||
| 94130-02002 | ||||
| 94130-61000 | ||||
| 94130-61200 | ||||
| 94130-61600 | ||||
| 94531-01200 | ||||
| 94531-01600 | ||||
| 94622-12000 | ||||
| 96451-00600 | ||||
| 96456-00609 | ||||
| Linked diagrams | ||||
| 5151 | ||||

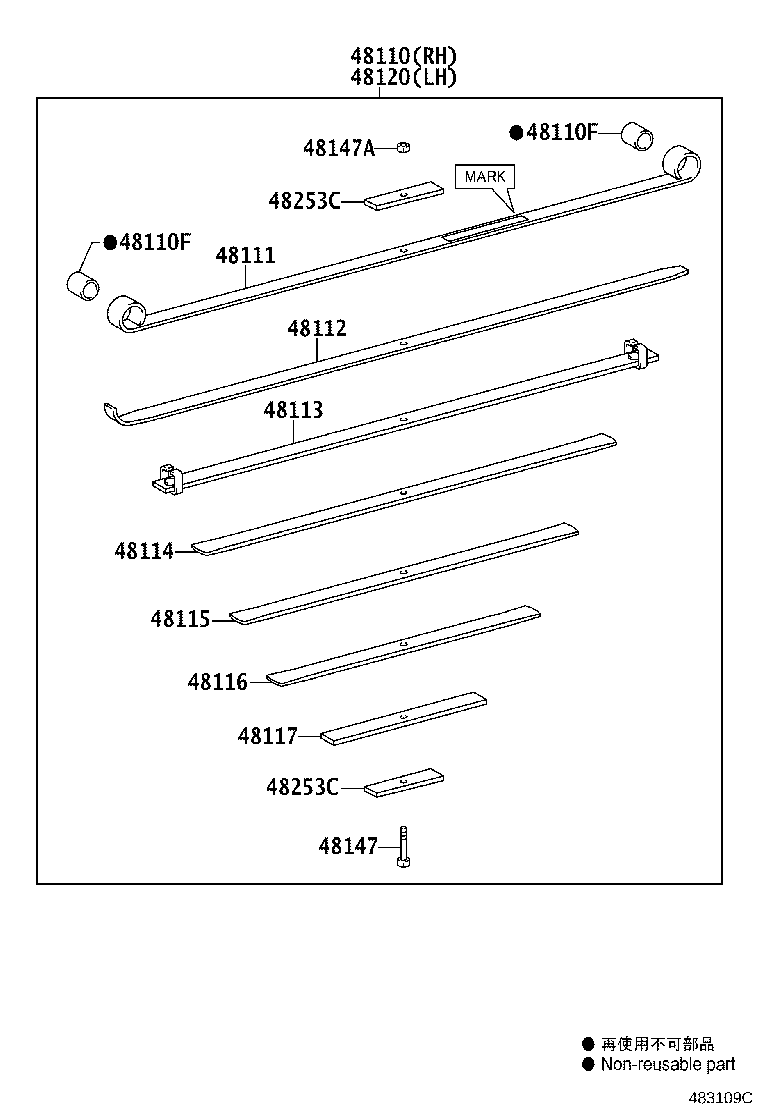

ILLUST NO. 2 OF 2(0612- )75T..DCRTJ ; (0912- )85T
7-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-0W010 |
WU342..75T..DCRTJ 7-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90384-28009 |
WU342..75T..DCRTJ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90384-28009 |
WU342..75T..DCRTJ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-0W010 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48101-0W130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48101-0W140 |
WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
1 | ||
| 48101-0W020 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-0W010 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48112-0W140 |
WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
1 | ||
| 48112-0W020 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48112-0W130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-0W140 |
WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
1 | ||
| 48102-0W010 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48102-0W020 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48113-0W130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-0W010 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48114-0W130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48114-0W020 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48114-0W140 |
WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-0W010 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48115-0W130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48115-0W020 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48115-0W140 |
WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-0W140 |
WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
1 | ||
| 48116-0W020 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48116-0W010 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48116-0W130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-0W140 |
WU342..75T..DCRTJ *PAS,MARK48110-0W140 |
1 | ||
| 48117-0W130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48117-0W010 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48117-0W020 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-0W020 |
WU342..75T..DCRTJ 7-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37B60 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48147-0W230 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48147-37B60 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-0W190 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
1 | ||
| 48284-37130 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
1 | ||
| 48284-37130 |
WU342..75T..DCRTJ *DRS,MARK48110-0W010 |
1 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-0W190 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
2 | ||
| 48253-3B770 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-0W190 |
WU342..75T..DCRTJ *DRS,MARK48110-0W130 |
2 | ||
| 48253-3B770 |
WU342..75T..DCRTJ *PAS,MARK48110-0W020 |
2 | ||

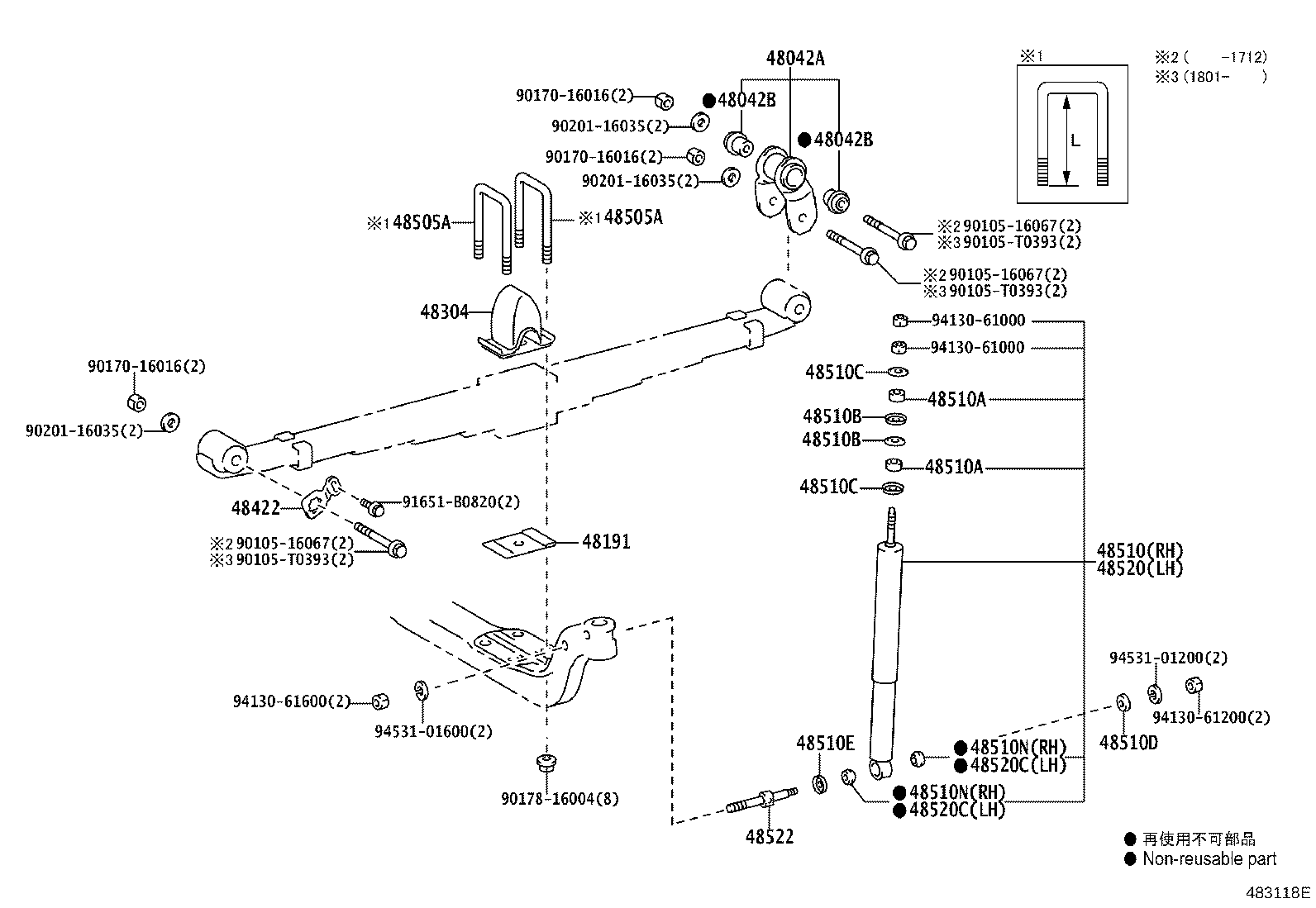

ILLUST NO. 1 OF 2(0912- )WU342..75T..DCRTR ; (0912- )WU342..48T,65T..DCRTP..T3 ; (0912- )WU
W/O(FRONT STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36030 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90080-11533 |
WU342..(DCRTH,DCRTJ)..IDN L=160 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90080-11533 |
WU342..(DCRTH,DCRTJ)..IDN L=160 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-09170 |
WU342..(DCRTH,DCRTJ)..IDN MARK 48511-0W030 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-T0006 |
WU302,342..(DCRTH,DCRTJ)..IDN LOWER |
4 | ||
| 90948-01003 |
WU302,342..(DCRTH,DCRTJ)..IDN UPPER |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90385-T0006 |
WU302,342..(DCRTH,DCRTJ)..IDN LOWER |
4 | ||
| 90948-01003 |
WU302,342..(DCRTH,DCRTJ)..IDN UPPER |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2001 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-T2001 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
WU302,342..(DCRTH,DCRTJ)..IDN |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-09170 |
WU342..(DCRTH,DCRTJ)..IDN MARK 48511-0W030 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-0W010 |
WU302,342..(DCRTH,DCRTJ)..IDN |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90105-T0393 | ||||
| 90170-16016 | ||||
| 90178-16004 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
| 94130-61000 | ||||
| 94130-61200 | ||||
| 94130-61600 | ||||
| 94531-01200 | ||||
| 94531-01600 | ||||
